Features:
The NON-RETRACTION structure in the handpiece, prevents suction of oral fluids in a patient's mouth into the water line of the handpiece at the spray water outlet port.

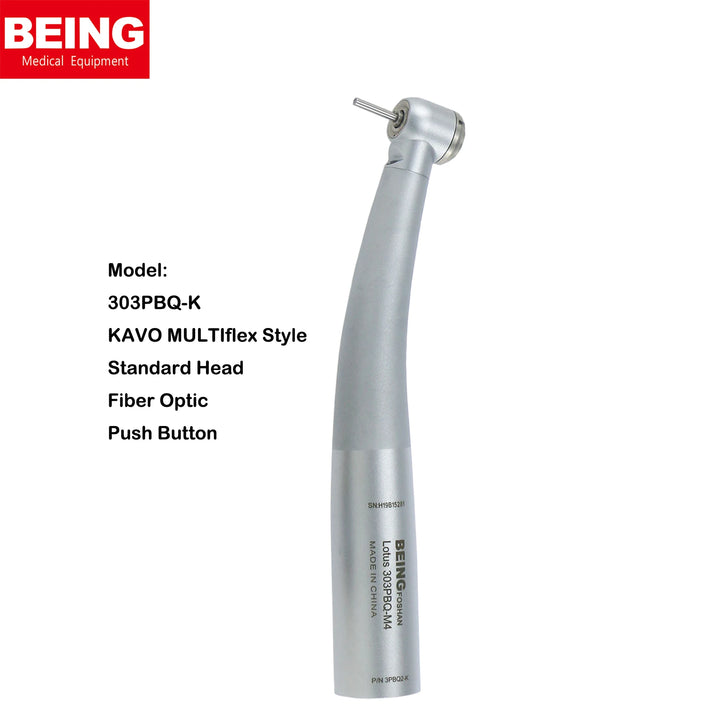

Lotus 303PBQ-K
New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized
Push button type, easy changing cartridge.

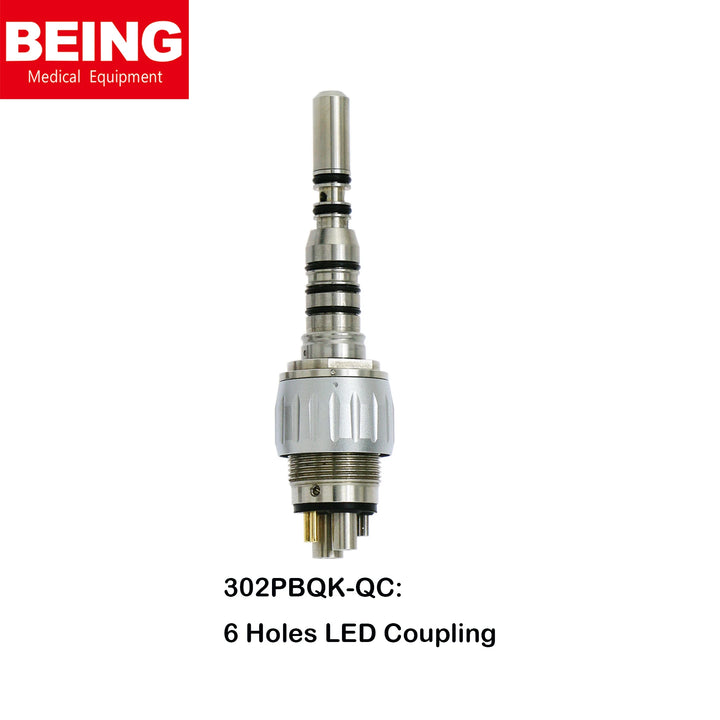

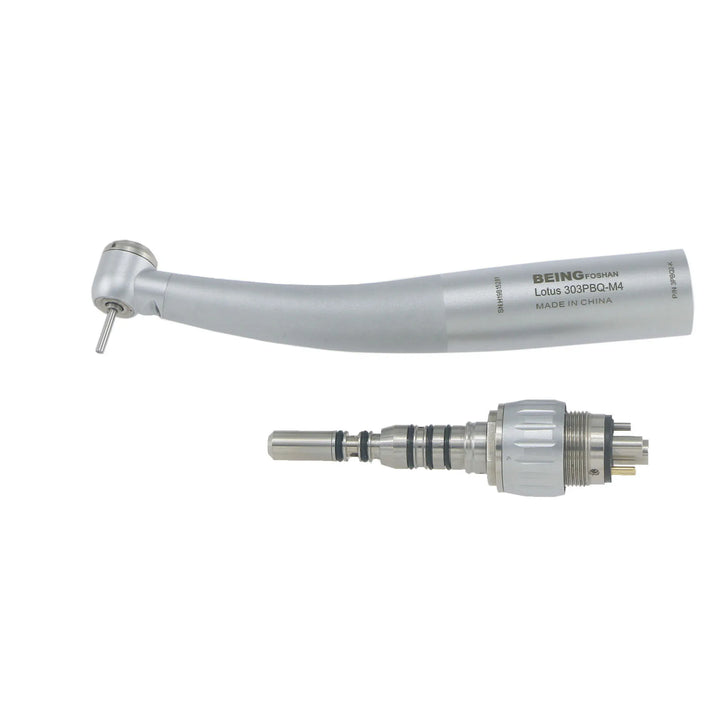

Connect with quick coupling, easy to load or unload the handpiece from the tubing of the dental unit.
Water spray can be controlled in the quick coupling.
With LED Light in the Coupling, offering a better eyeshot and angle, improving your efficiency.
High density Chinese bearings cartridge, with high cutting efficiency but less vibration and noise.
Newly-designed handle, comfortable to hold and easy to clean.
Both handpiece and quick coupling are autoclavable. (up to 135℃)
Technical Specifications:
Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)
Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)
Water pressure: 198Kpa (2 kg)
Rotation speed: 380,000-450,000 rpm (Standard Head)
Head height: φ10.8 mmx13.14 mm (Standard Head)
Chuch type: Push button
Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise≤70dB
Intensity of light: 25000 lx
Source of Light: LED bulb
Voltage of bulb: 3.0~3.2 V
Safty classification: B type application part
