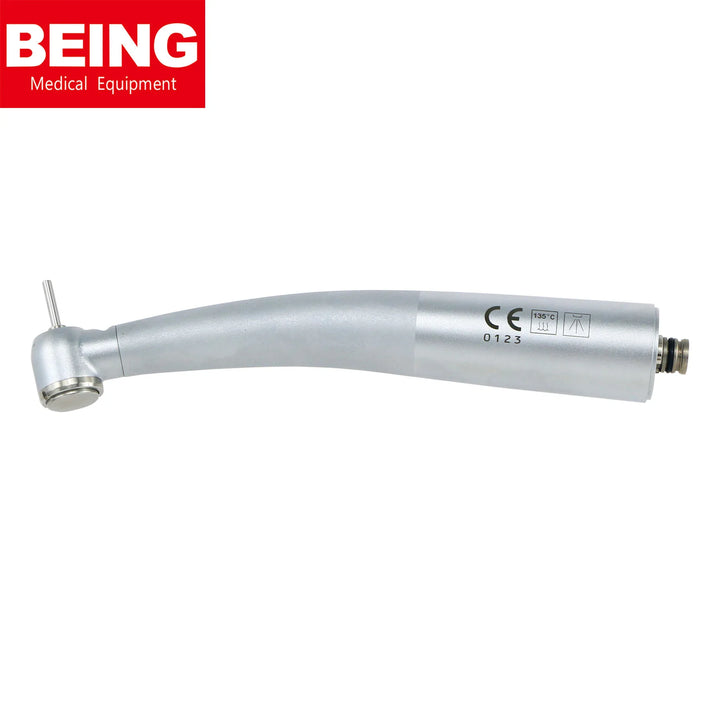

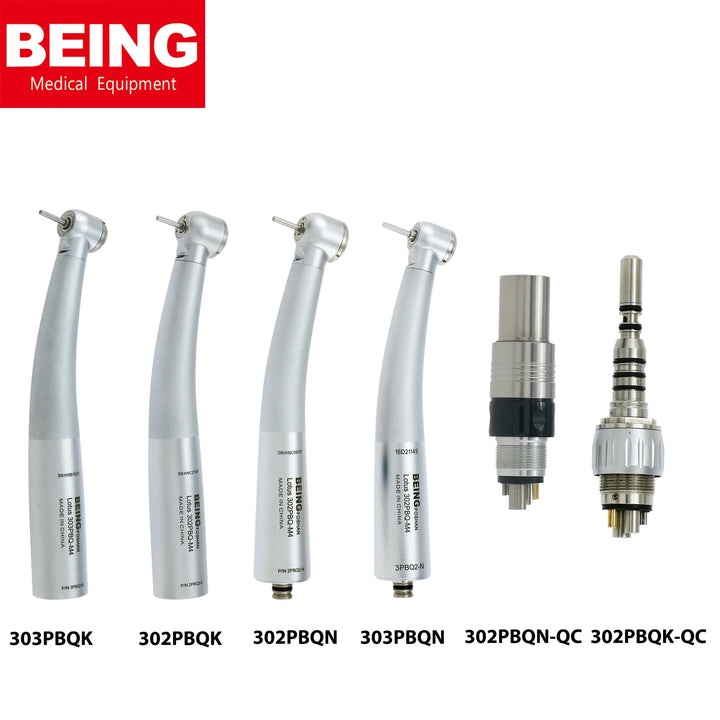

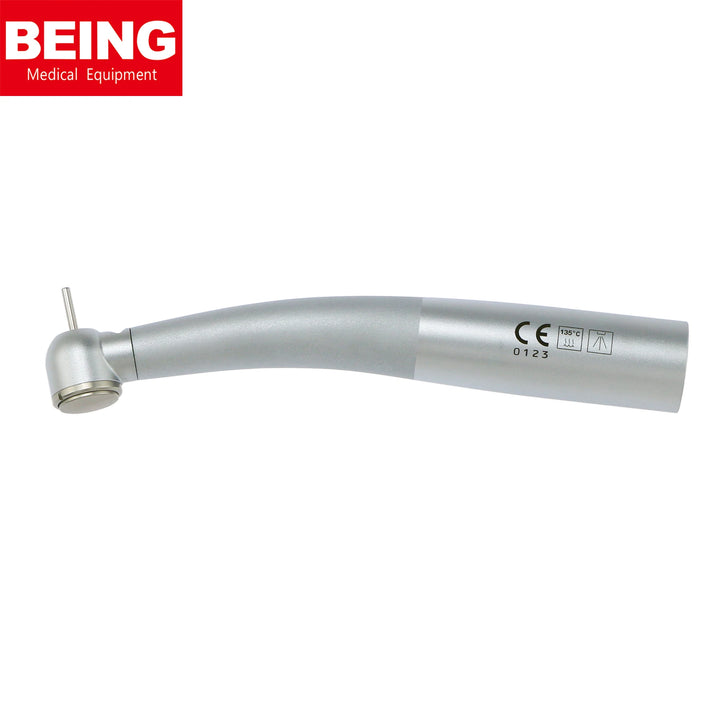

302PBQ-K Handpiece, (Fiber Optic / Big Torque Head)

303PBQ-K Handpiece, (Fiber Optic / Standrad Head)

302PBQ-N Handpiece, (Fiber Optic / Big Torque Head)

303PBQ-N Handpiece, (Fiber Optic / Standard Head)

Feature:

Push button

3 hole spray, anti-retaction.

With ceramic bearings, low noise and durable.

All turbine rotor passed the Germany balancing machine.

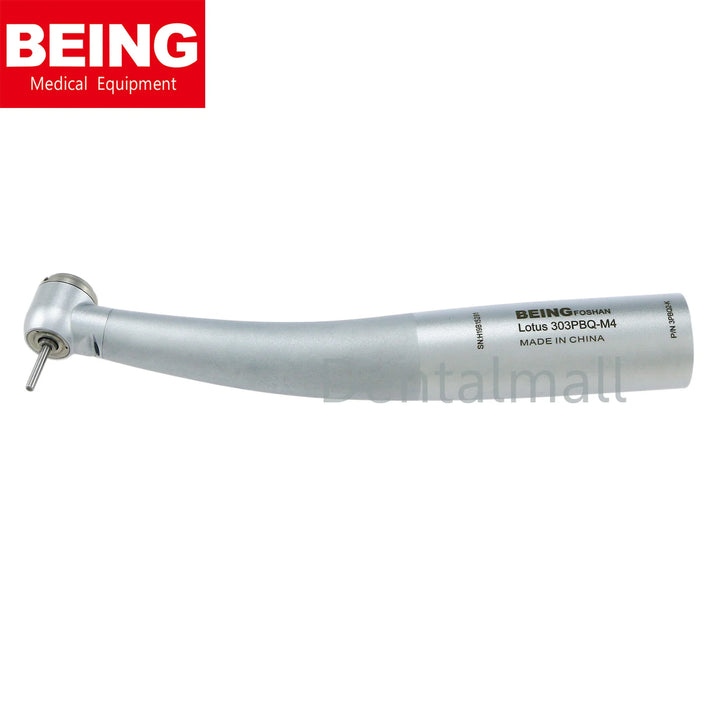

303 series handpiece: Standard Head

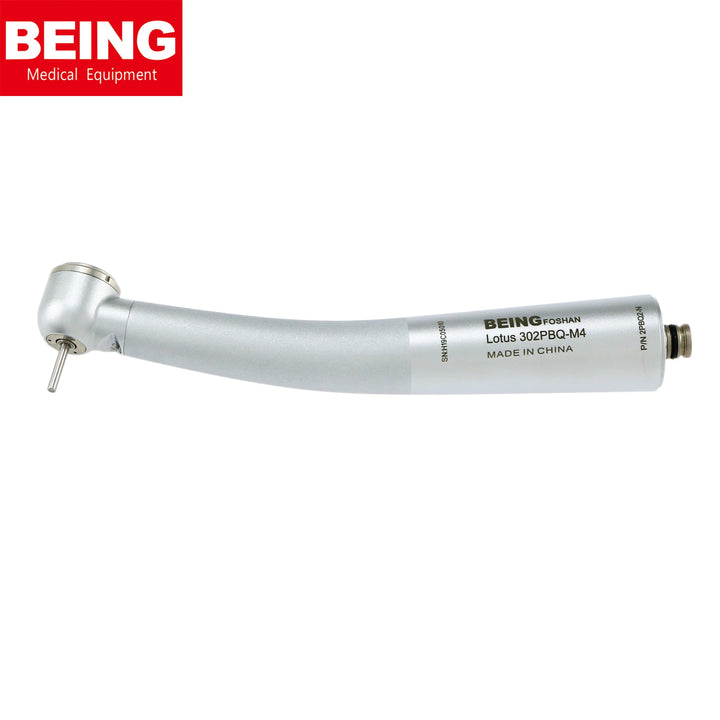

302 series handpiece: Big Torque Head

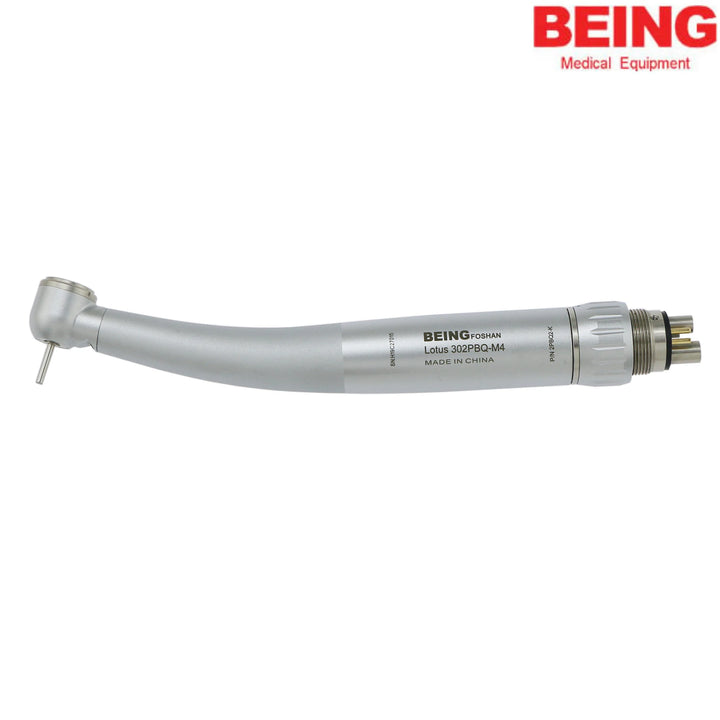

302PBQ-K / 303PBQ-K: Fiber Optic, Fits KAVO Multiflex LUX LED Coupling

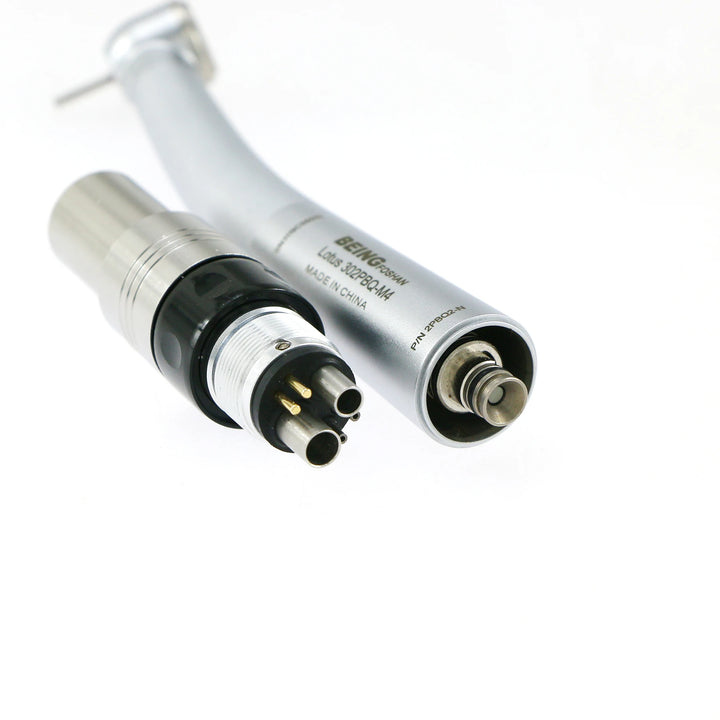

302PBQ-N / 303PBQ-N: Fiber Optic, Fits 6 Holes NSK Machlite Phatelus LED Coupling

Technical details:

Air pressure at the back end of hp: 206~231 KPa (2.1~2.35 kgf/cm2)

AIR pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0kgf/cm2)

Water pressure: 198Kpa (2 kg)

Rotation speed: 320,000-380,000 rpm (Big Torque Head)

380,000-450,000 rpm (Standard Head)

Head Size: φ12.5 mm x13.02 mm (Big Torque Head)

φ10.8mm x 13.14mm (Standard Head)

Chuck type: Push button

Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise: ≤70dB

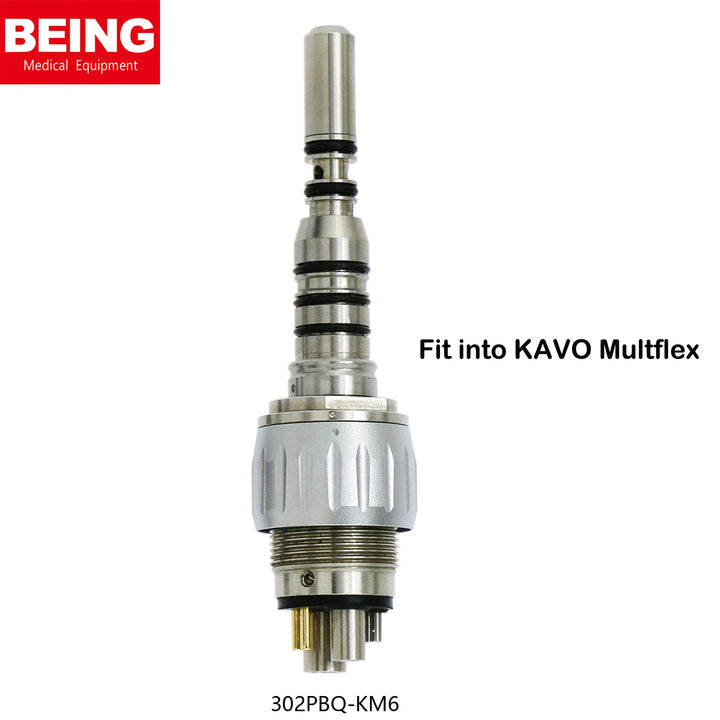

302PBQ-QC: 6 Holes KaVo MULTIflex LED Coupler

Kavo Multiflex Style

6 holes (6 Pin)

With LED bulb. White Bright Light

Water control

Easy to load or unload the handpiece from the tubing of the dental unit

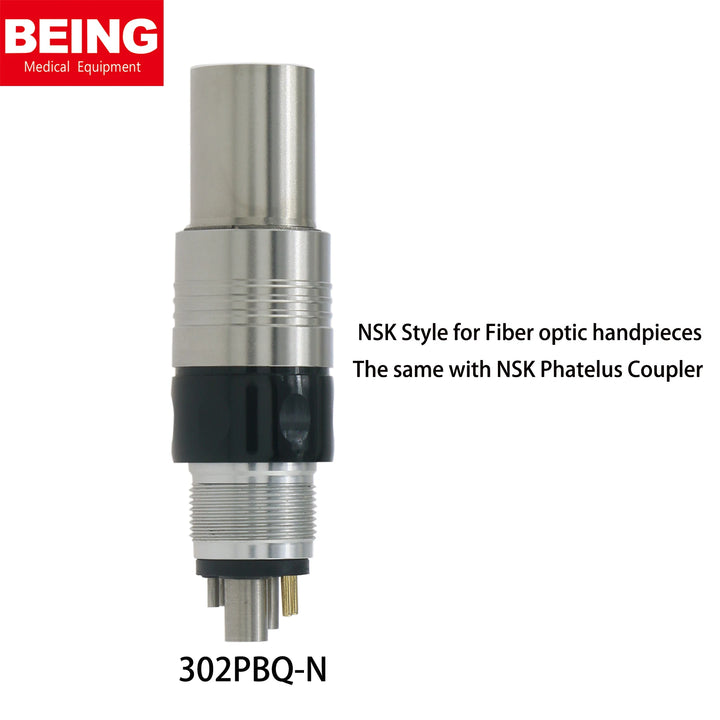

302PBQN-QC: 6 Holes NSK Phatelus LED Coupler

6 Holes (6 Pin)

With LED Bulb in the Coupling

NSK Machlite / Phatelus Style

Easy to load or unload the handpiece from the tubing of the dental unit
