Brand: BEING

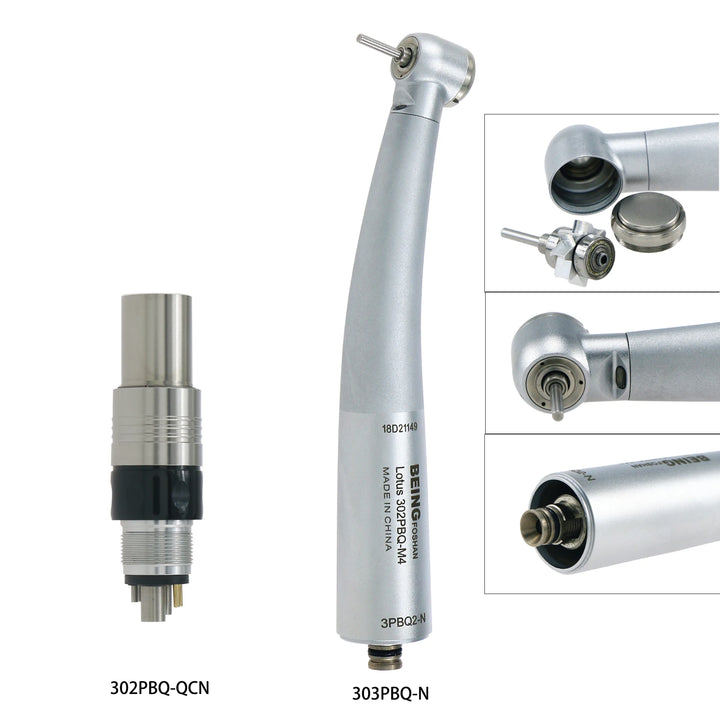

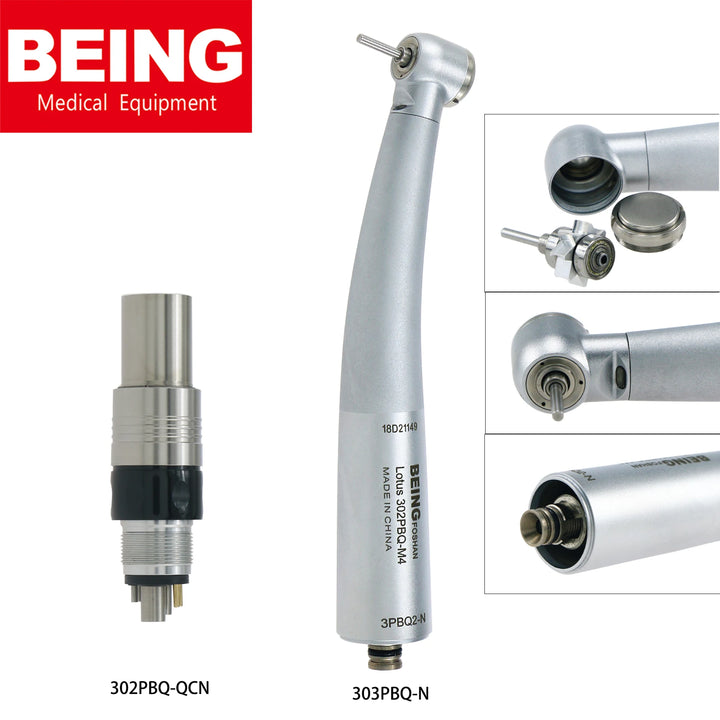

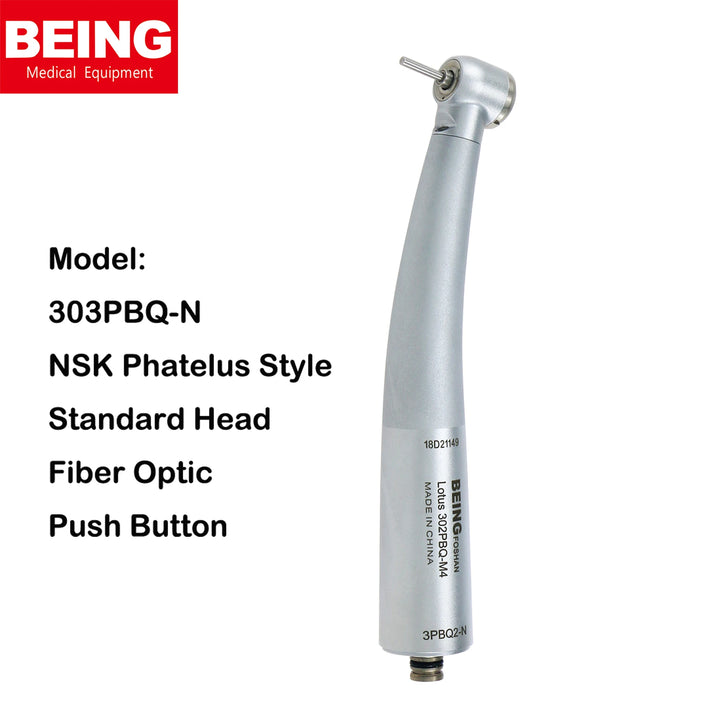

Model: Lotus 303PBQ-N
High speed turbine handpiece
Fiber optic LED

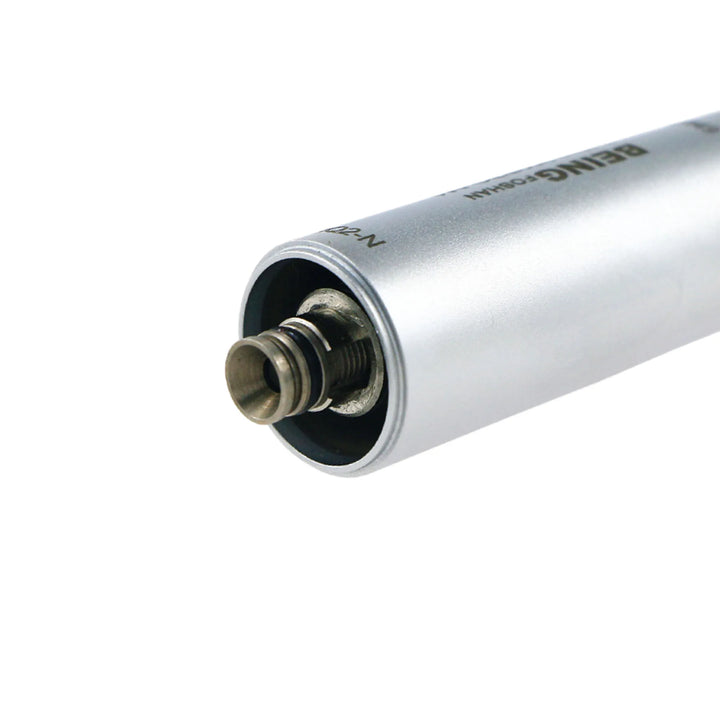

Fit NSK Phatelus LED quick coupling

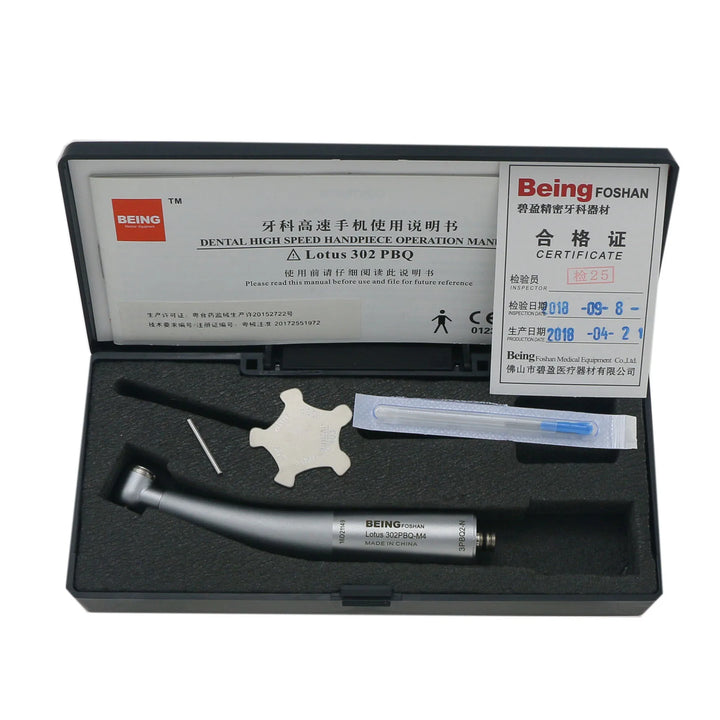

6 hole fiber optic coupling is include

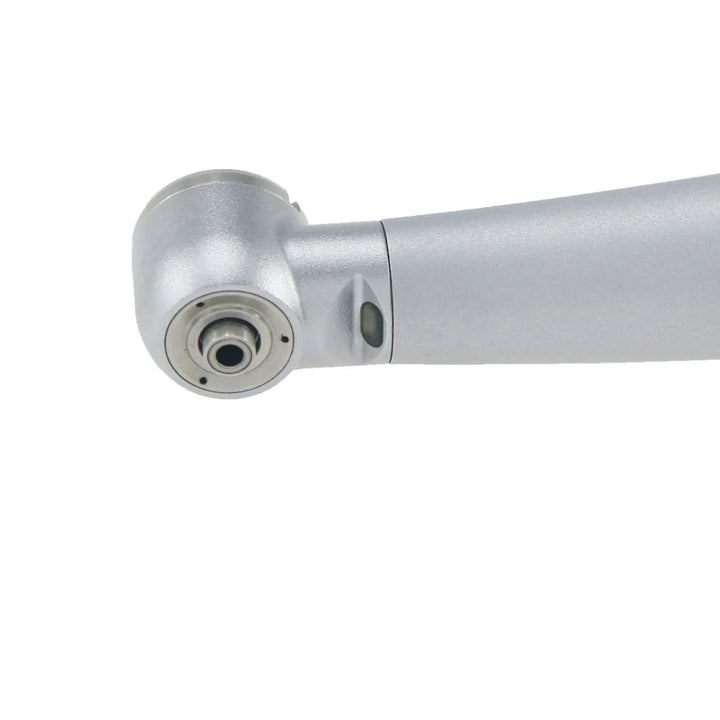

Standard head
Features:
1. New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized
2. The Anti-retraction structure in the handpiece,prevents suction of oral fluids in a patient's mouth into the water line of the handpiece at the spray water outlet port.
3. Cellular Optic Glass Rods are brighter, durable under repeated sterilization.
4. Offering a better eyeshot and angle, improving your efficiency.
5. High density cartridge, with high cutting efficiency but less vibration and noise.
6. Newly-designed handle, comfortable to hold and easy to clean.
7. Handpiece is autoclavable. (up to 135°C)
Technical Parameter:
Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)
Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)
Water pressure: 198Kpa (2 kg)
Rotation speed: 300,000-320,000 rpm
Head height: 12.1 mm
Head diameter: φ10.8 mm
Chuch type: Push button
Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise≤70dB
Intensity of light: 25000 lx
Source of Light: LED bulb
Voltage of bulb: 3.0~3.2 V
Safty classification: B type application part
