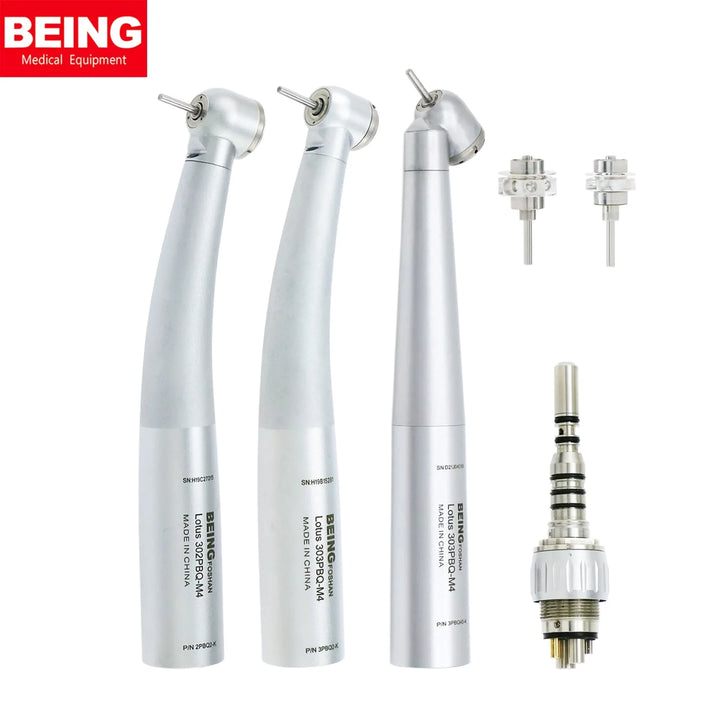

BEING Dental Odontologia Fiber Optic Turbine High Speed Handpiece Big Head Standard Head 45° Head Compatible KAVO MULTIflex 6Pin

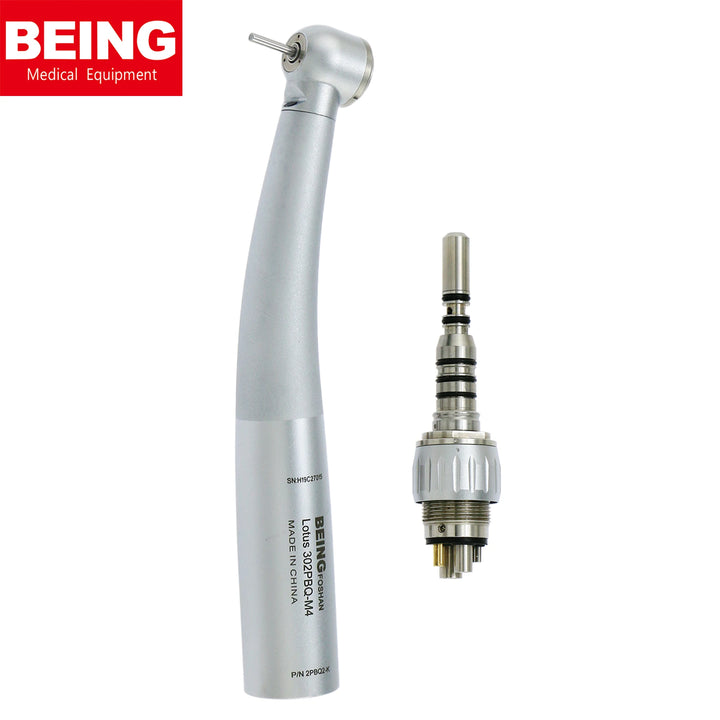

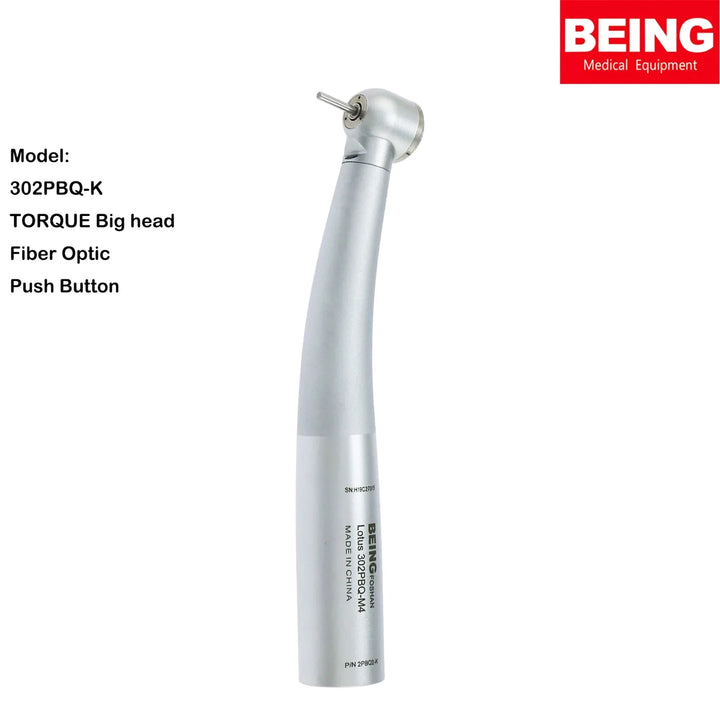

302PBQ-K: (Big Head, Fiber Optic)

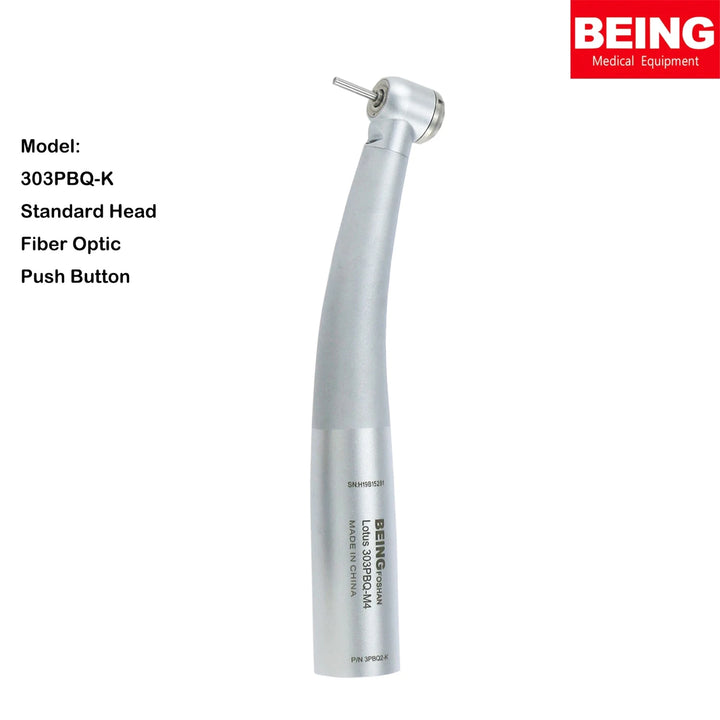

303PBQ-K: (Standard Head, Fiber Optic)

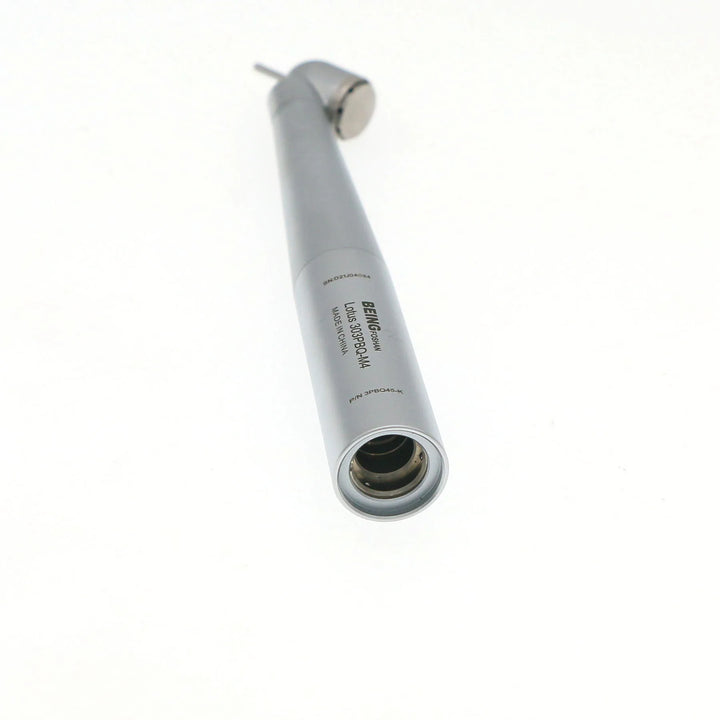

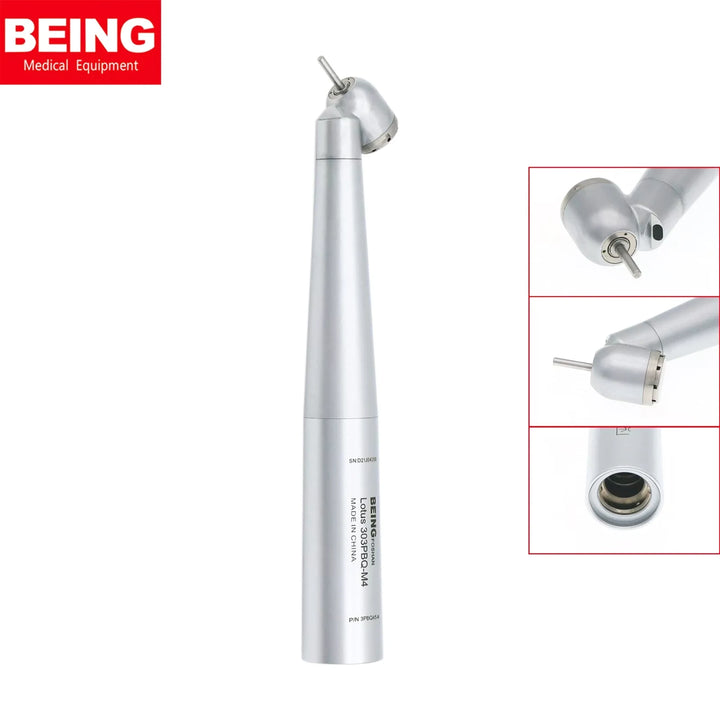

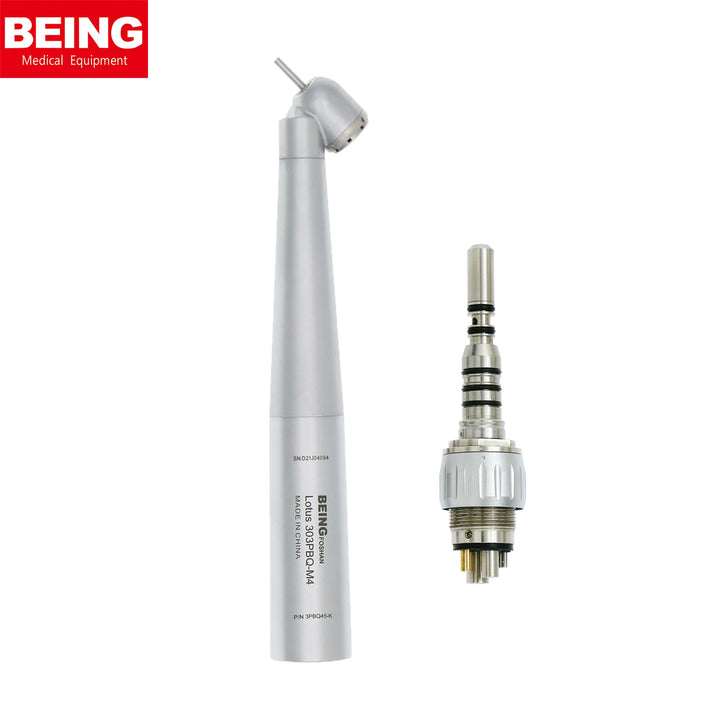

303PBQ45-K: (45°, Standard Head, Fiber Optic)

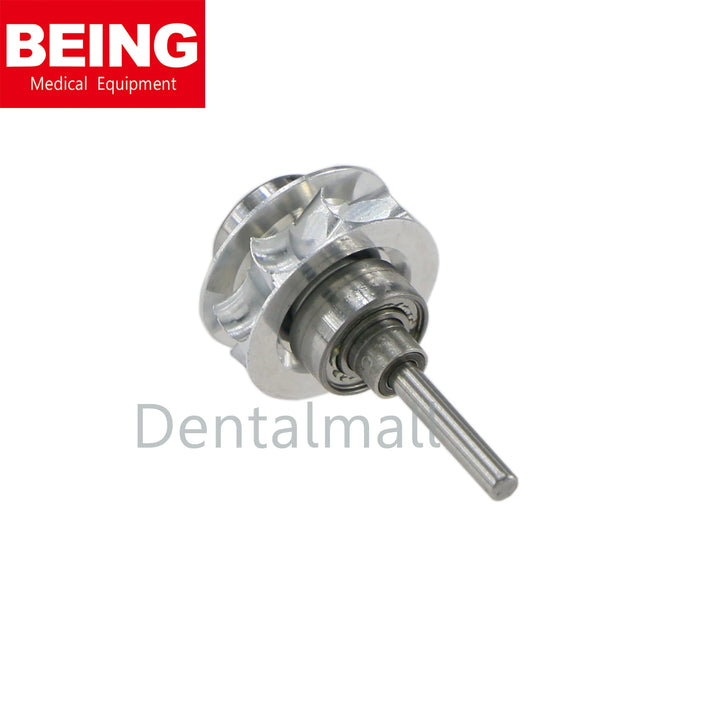

302 Rotor: Torque Head Rotor

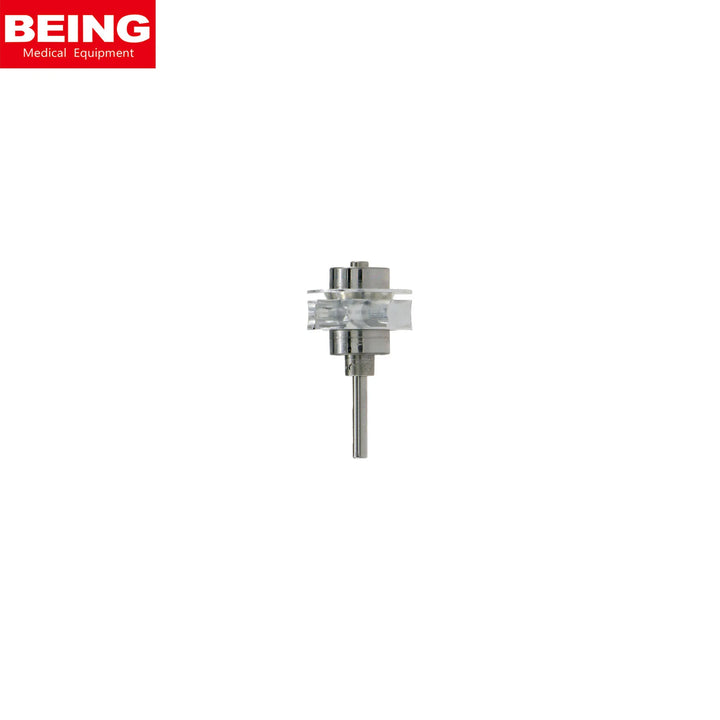

303 Rotor: Standard Head Rotor

The NON-RETRACTION structure in the handpiece, prevents suction of oral fluids in a patient's mouth into the water line of the handpiece at the spray water outlet port.

New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized

Push button type, easy changing cartridge.

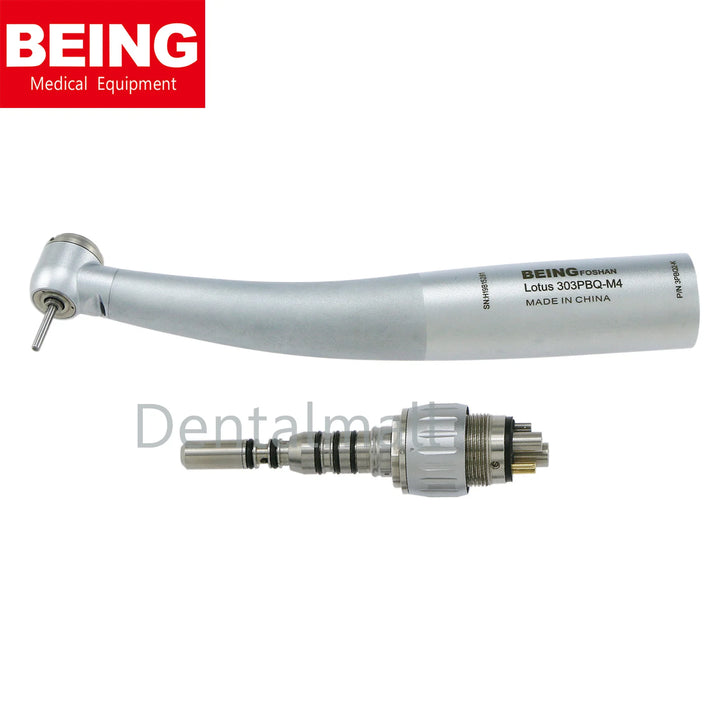

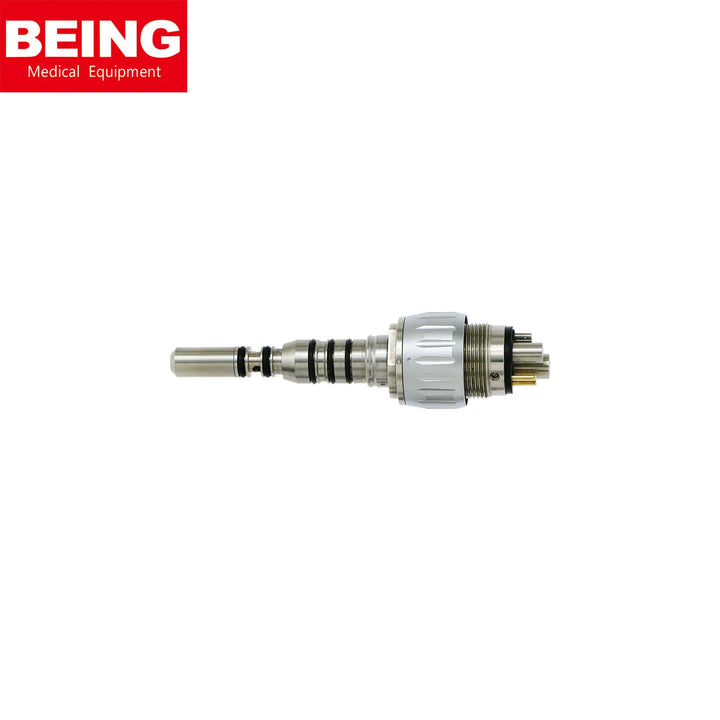

Connect with quick coupling, easy to load or unload the handpiece from  the tubing of the dental unit.

Water spray can be controlled in the quick coupling.

With LED Light in the Coupling, offering a better eyeshot and angle, improving your efficiency.

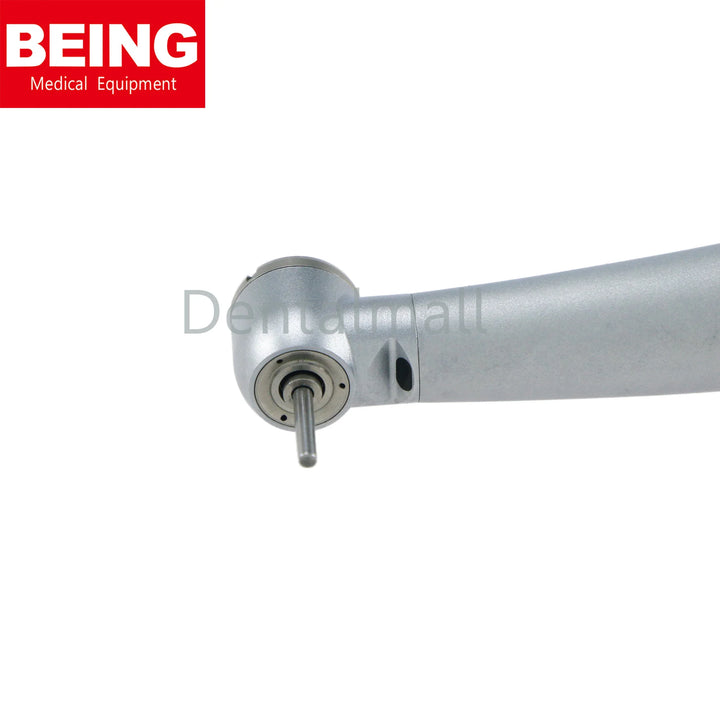

High density Chinese bearings cartridge, with high cutting efficiency but less vibration and noise.

Newly-designed handle, comfortable to hold and easy to clean.

Both handpiece and quick coupling are autoclavable. (up to 135℃)

Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)

Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)

Water pressure: 198Kpa (2 kg)

Rotation speed: 300,000-380,000 rpm (Big Head)

Head height: φ12.5 mmx13.02 mm (Big Head)

Chuch type: Push button

Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise≤70dB

Intensity of light: 25000 lx

Source of Light: LED bulb

Voltage of bulb: 3.0~3.2 V

Safty classification: B type application part
