BEING Dental Push Button High Speed Air Turbine Handpiece fit KaVo Coupler M4
Models for choose:

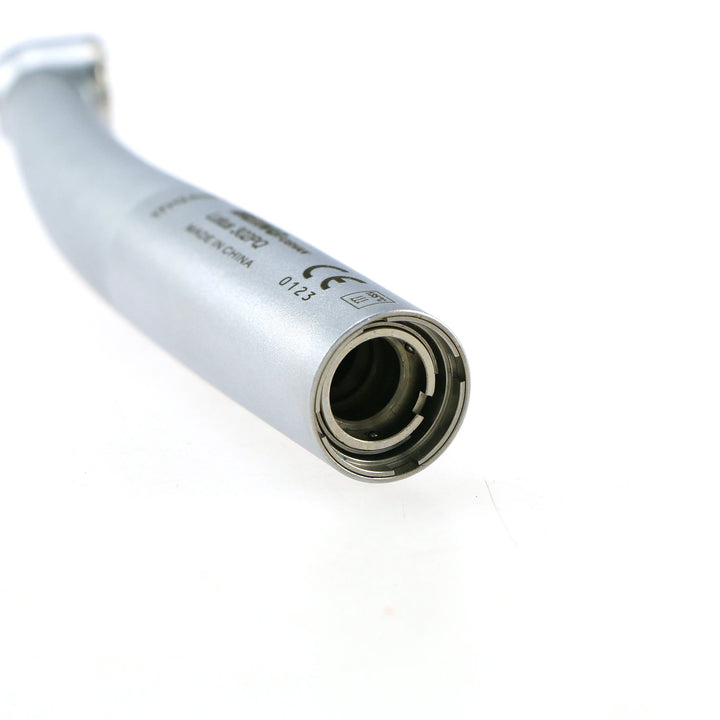

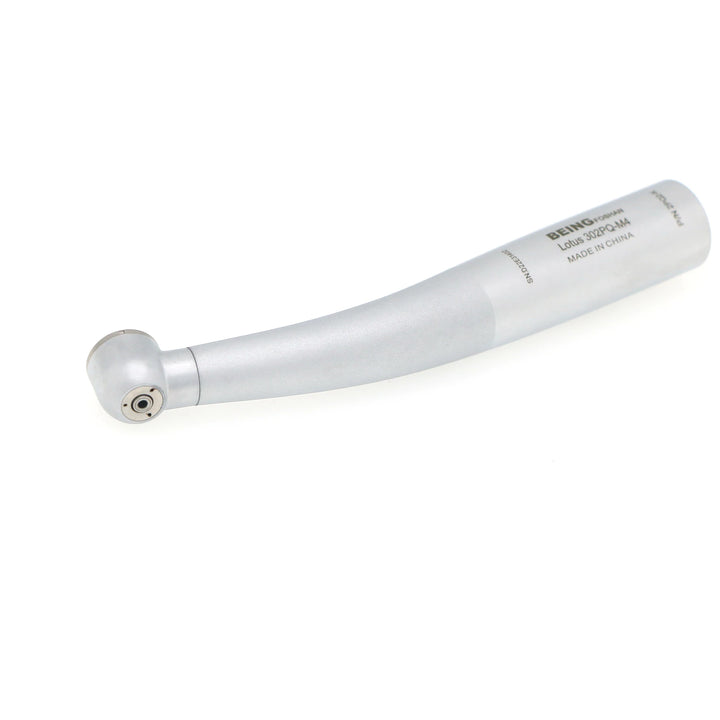

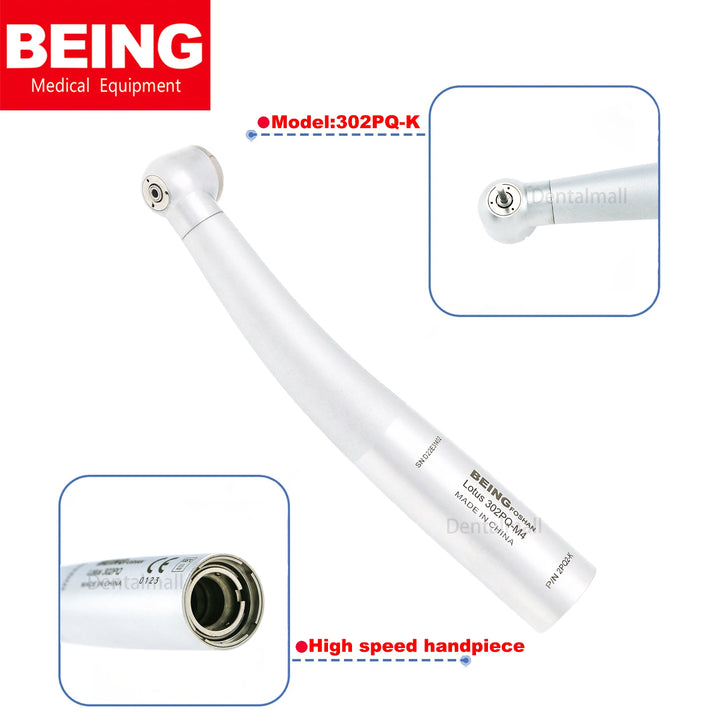

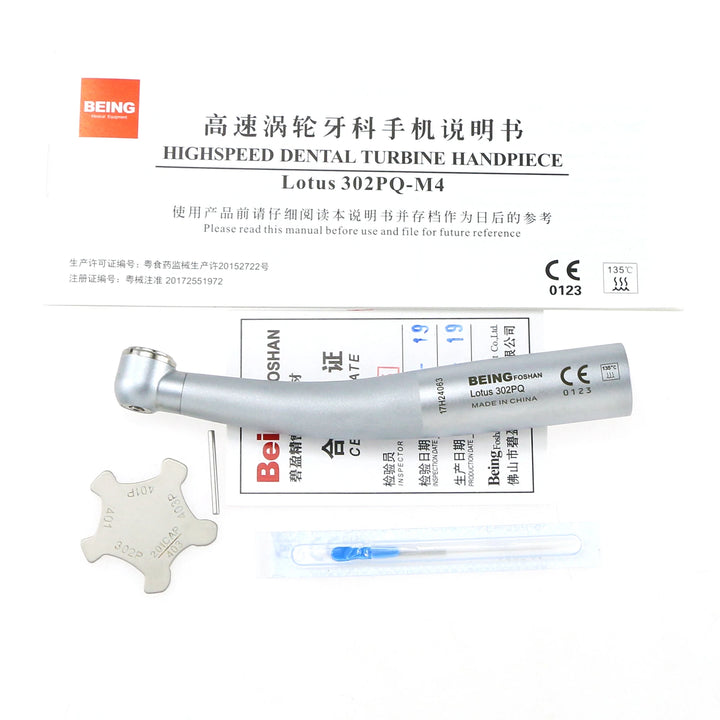

302PQ-K Handpiece

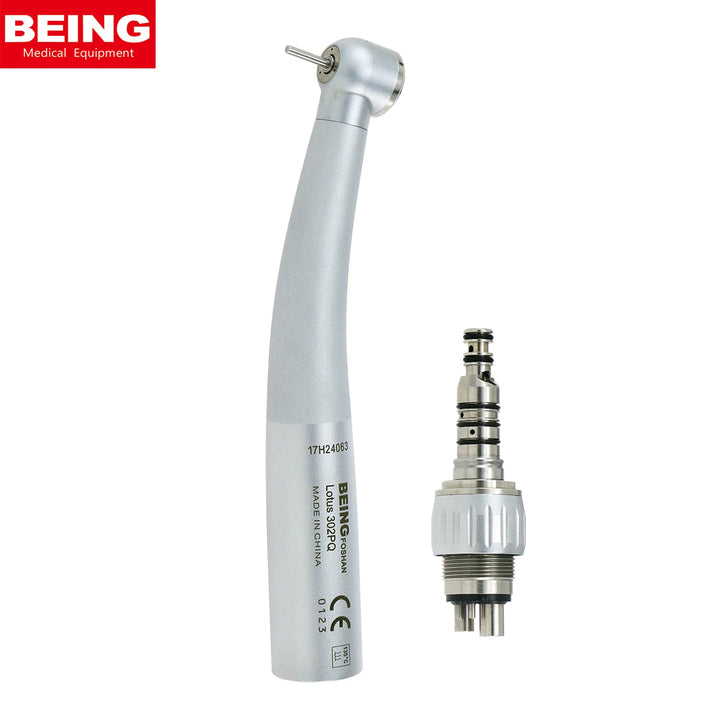

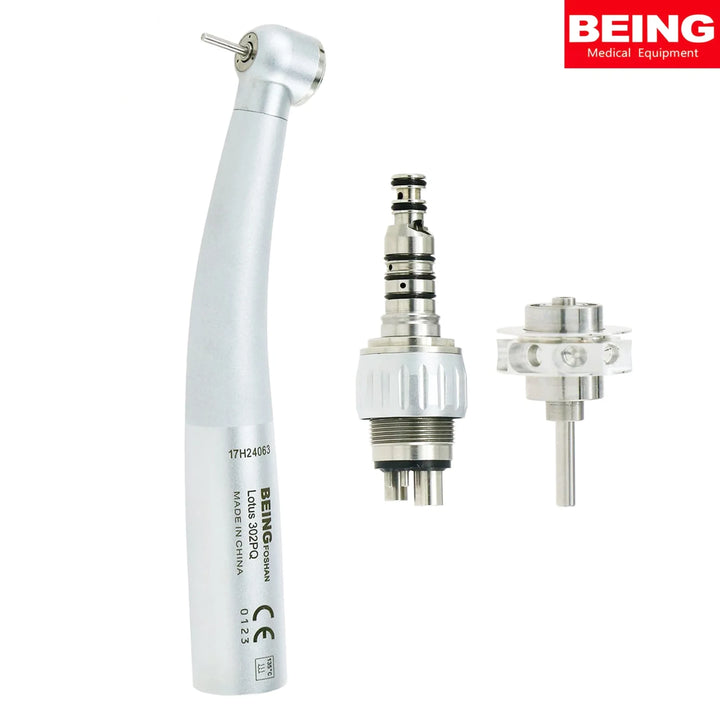

302PQ-K & 4Holes Coupler
302PQK-QC: 4Holes Coupler
302Rotor
Specification:
Air pressure at the back end of hp: 206~231 KPa (2.1~2.35 kgf/cm2)
AIR pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0kgf/cm2)
Water pressure: 198Kpa (2 kg)
Rotation Speed: 380000--450000 rpm (Standard Head)
320000--380000 rpm (Big Torque Head)
Head Size: φ12.5 mm x13.02 mm (Big Torque Head)
φ10.8mm x 13.14mm (Standard Head)
Head diametre: φ12.5 mm
Chuck type: Push button
Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise: ≤70dB

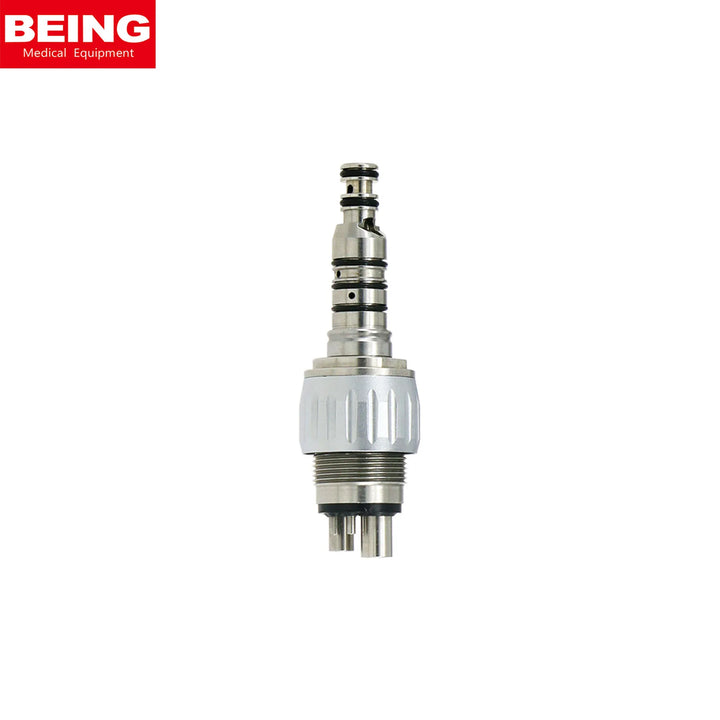

302PQK-QC:
BEING Brand
4 Holes without LED
KAVO multiflex style quick coupling
360 degree swivel
Anti retraction
Midwest 4 hole connection with drive air supply and exhaust, atomised water coolant and chip air
Autoclavable

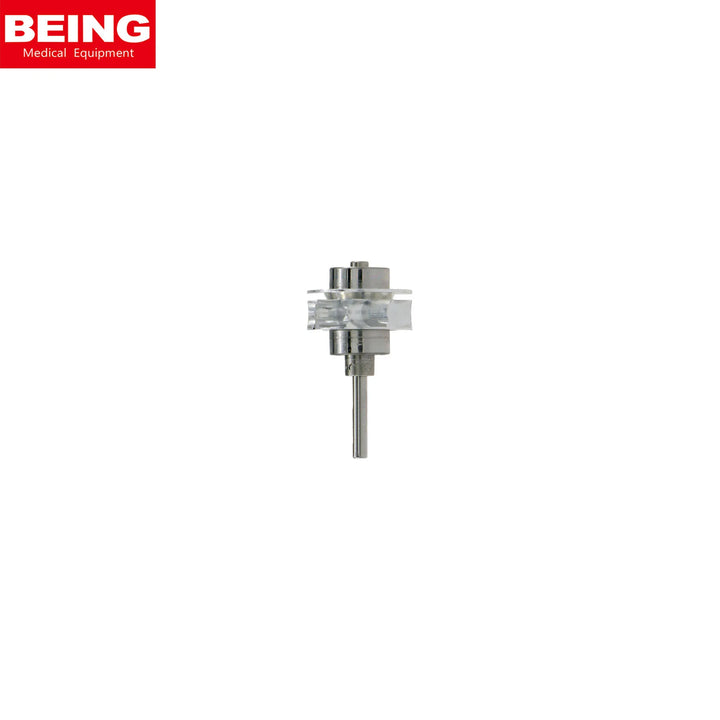

302P Rotor:
BEING original, top quality
Push button
With closed ceramic bearings
All turbines are dynamically balanced
Low noise, durable
302P Rotor: Big Torque Head; For BEING 2PBQ2-K / 2PBQ2-N / 2PBQ-S / 2PQ2-K / 2PQ2-N / 302PB high speed handpiece
