Fiber Optic

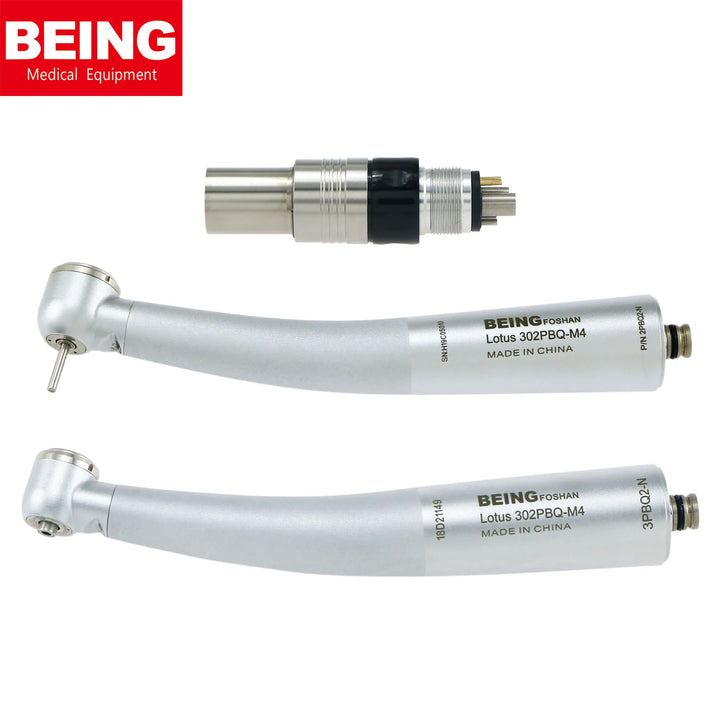

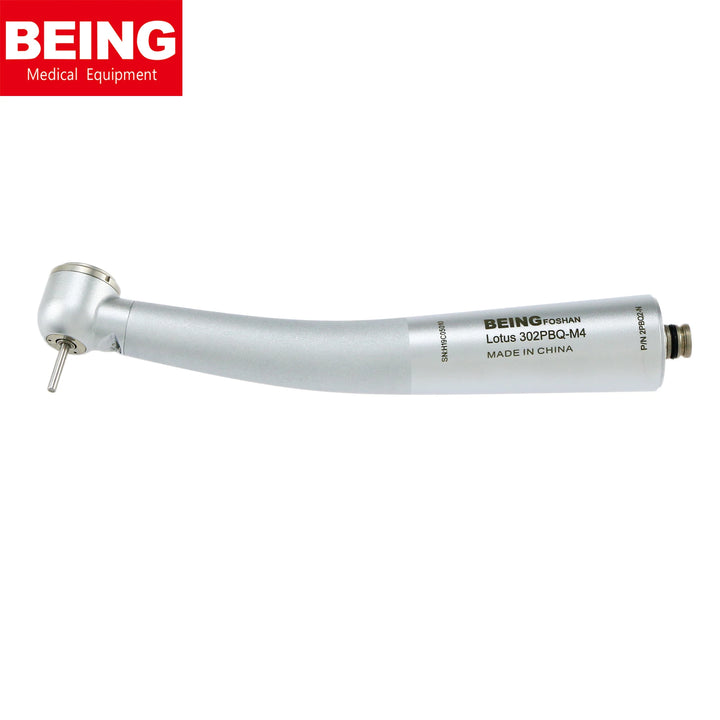

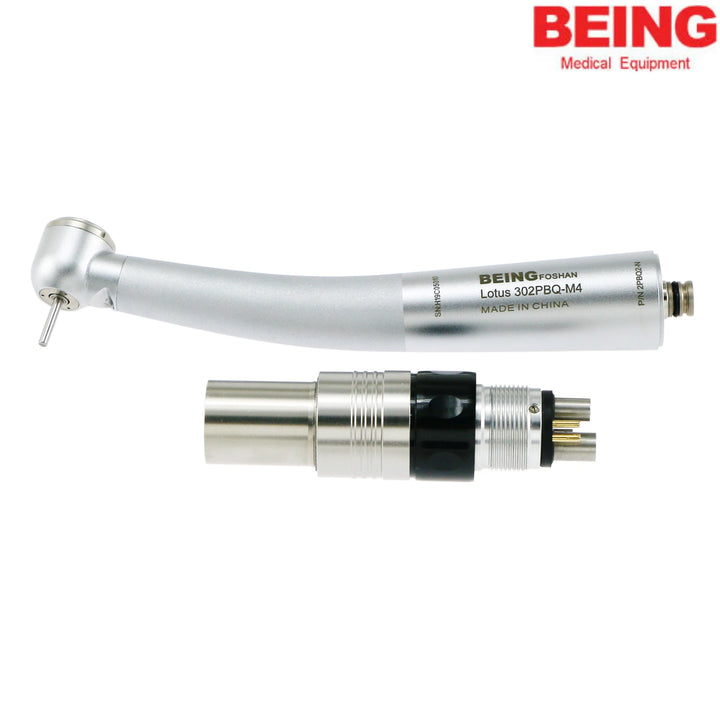

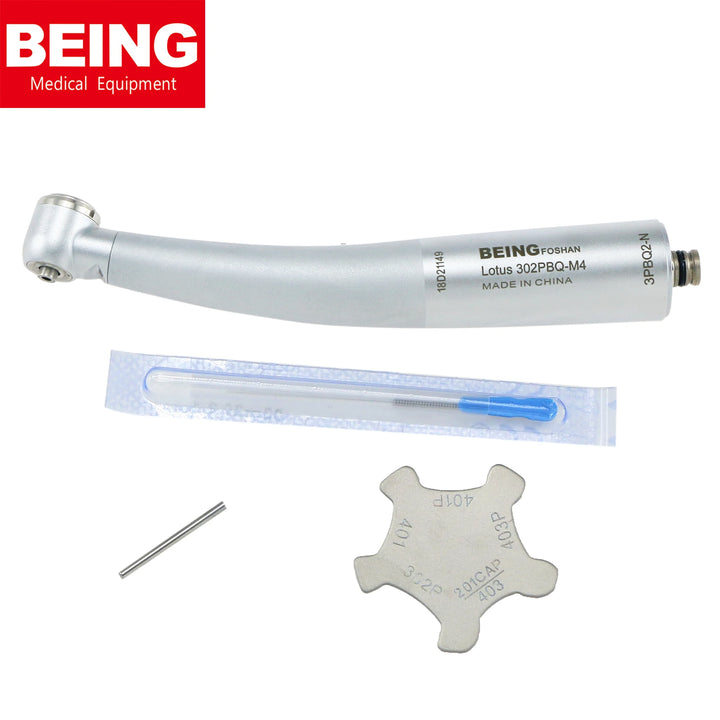

302PBQ-N Handpiece, (Fiber Optic / Big Torque Head)
302PBQ-N & 302PBQN-QC, (Fiber Optic / Big Head Torque)
303PBQ-N Handpiece, (Fiber Optic / Standard Head)
303PBQ-N & 302PBQN-QC, (Fiber Optic / Standrad Head)
302PBQN-QC: 6 Holes NSK Phatelus LED Coupler
Feature:
Push button
3 hole spray, anti-retaction.
With ceramic bearings, low noise and durable.
All turbine rotor passed the Germany balancing machine.
303 series handpiece: Standard Head
302 series handpiece: Big Torque Head
302PBQ-N / 303PBQ-N: Fiber Optic, Fits 6 Holes NSK Machlite Phatelus LED Coupling
Technical details:
Air pressure at the back end of hp: 206~231 KPa (2.1~2.35 kgf/cm2)
AIR pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0kgf/cm2)
Water pressure: 198Kpa (2 kg)
Rotation speed: 320,000-380,000 rpm (Big Torque Head)
380,000-450,000 rpm (Standard Head)

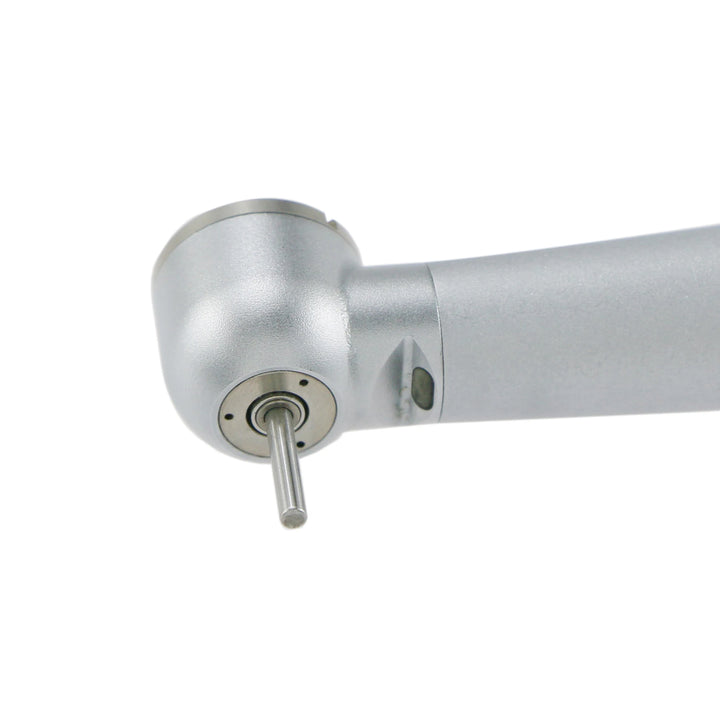

Head Size: φ12.5 mm x13.02 mm (Big Torque Head)
φ10.8mm x 13.14mm (Standard Head)
Chuck type: Push button
Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise: ≤70dB

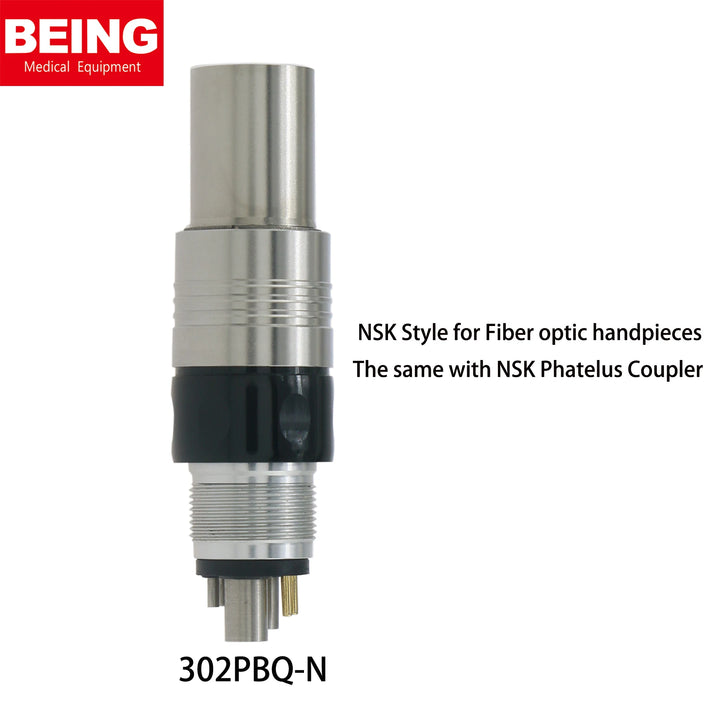

302PBQN-QC: 6 Holes NSK Phatelus LED Coupler
6 Holes (6 Pin)
With LED Bulb in the Coupling
NSK Machlite / Phatelus Style
Easy to load or unload the handpiece from the tubing of the dental unit
