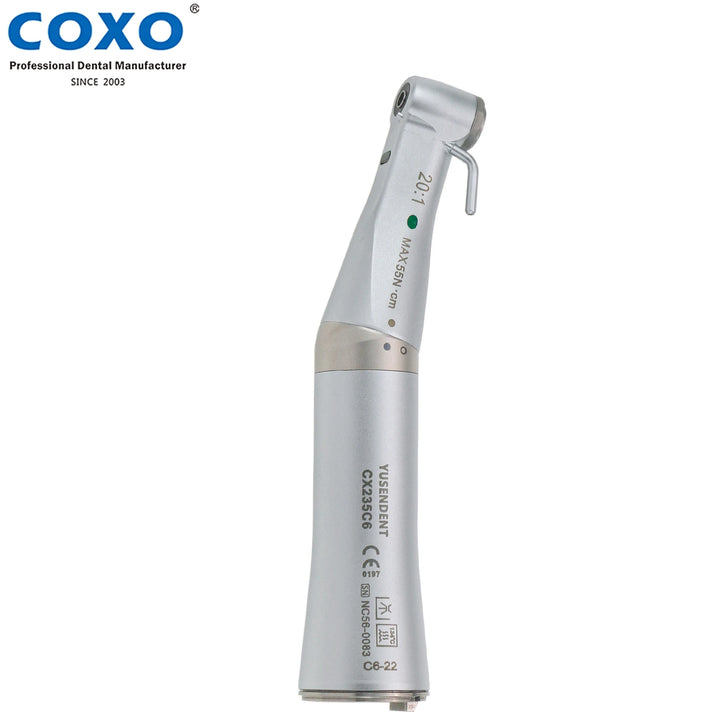

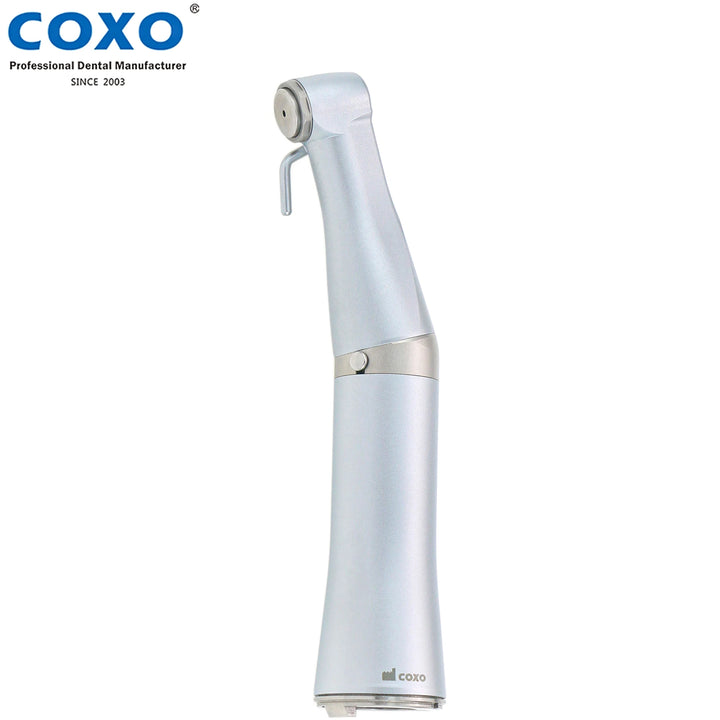

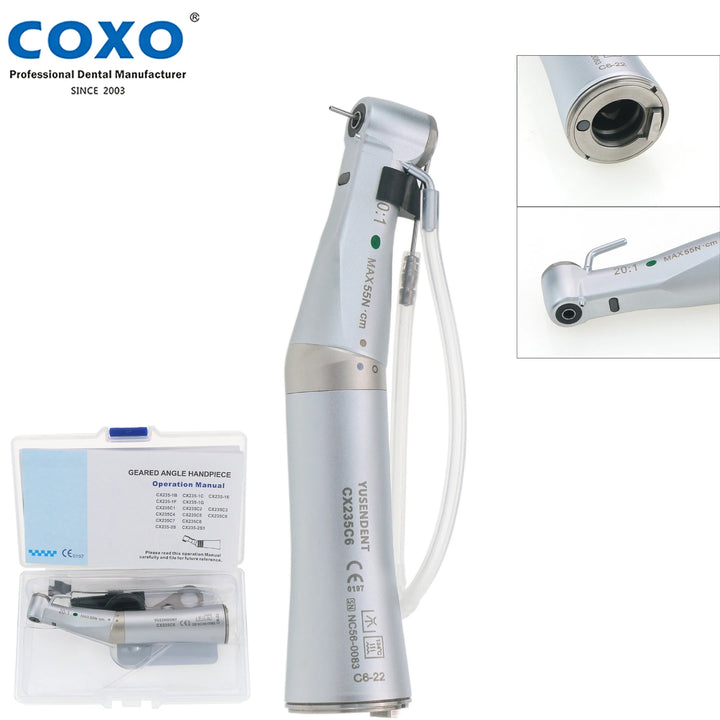

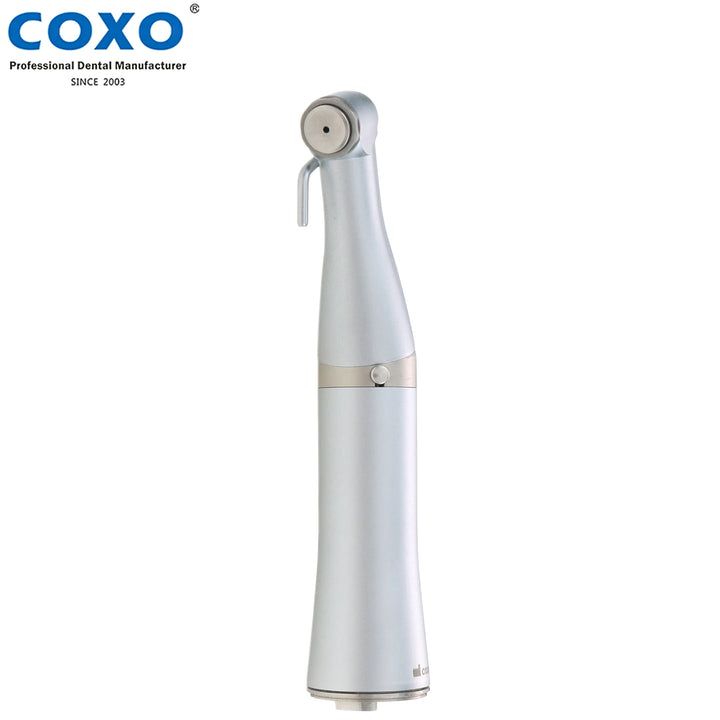

Model: CX235 C6-22
20:1 Contra Angle
Implant Handpiece
Fiber Optic, similar with NSK implant handpiece NSK X-SG20L
Inner and external water channel
ISO E type Contra Angle, fits for ISO E Type implant motors (KAVO, NSK, W/H, COXO and ect.)
Features:
Fiber Optic lighting system, more clear vision

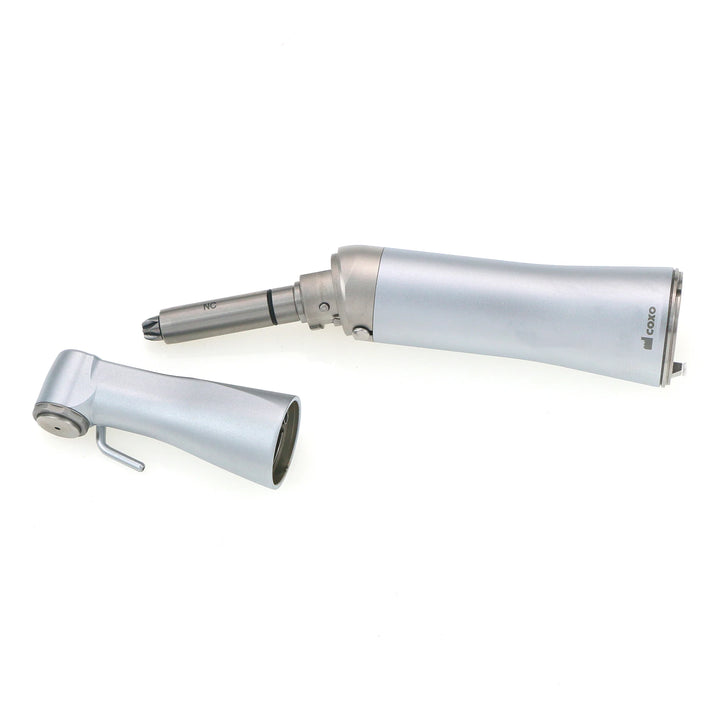

Disassebling: Contra-angle can be disassembled with a simple twist for easy internal cleaning, no risk of cross-infection. However, when attached to a motor, it will not disassemble accidentally due to the unique locking mechanism
Double Sealing System: Double sealing system reliably prevents blood and bodily fluids from entering the instrument head. This guarantees longevity of the instruments.
Push Button Chuck: Push Button Chuck is push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.
Oil injection can directly reach gears and bearings, and the maintenance effect is good. Extend the life of the gear.
The new gear system design, high-tech wear-resistant coating
Technical Specification:
Max speed: 2, 000RPM
Max Torque 55N.cm
Bur applicable: Ø2.35mm (ISO1797-1)
Internal cooling system: Kirschner/Meyer
