Description
|

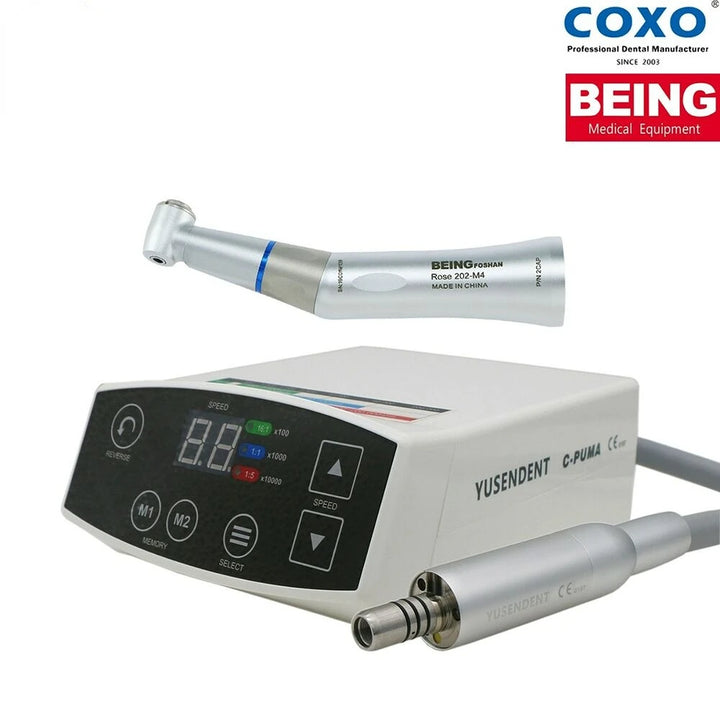

COXO Dental Electric LED Micro Motor C-PUMA 1:5 1:1 Fiber Optic Handpiece
Model to choose:
2 Holes C Puma Electric Motor

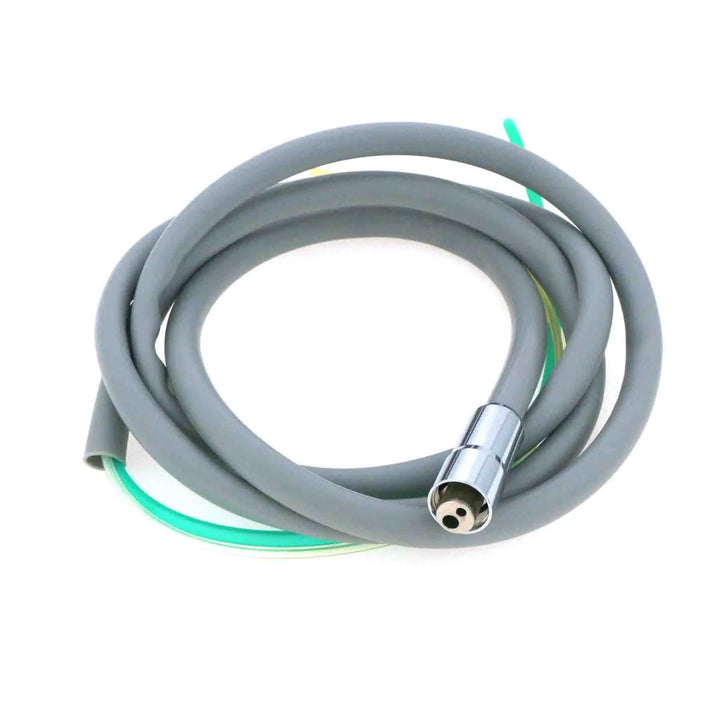

2 Holes Hose Tube
CX235 C5-1M 6:1 Reduction Contra Angle
CX235 C7-1 Contra Angle (1:5 Fiber Optic)
CX235-1C Contra Angle (1:1 Fiber Optic)

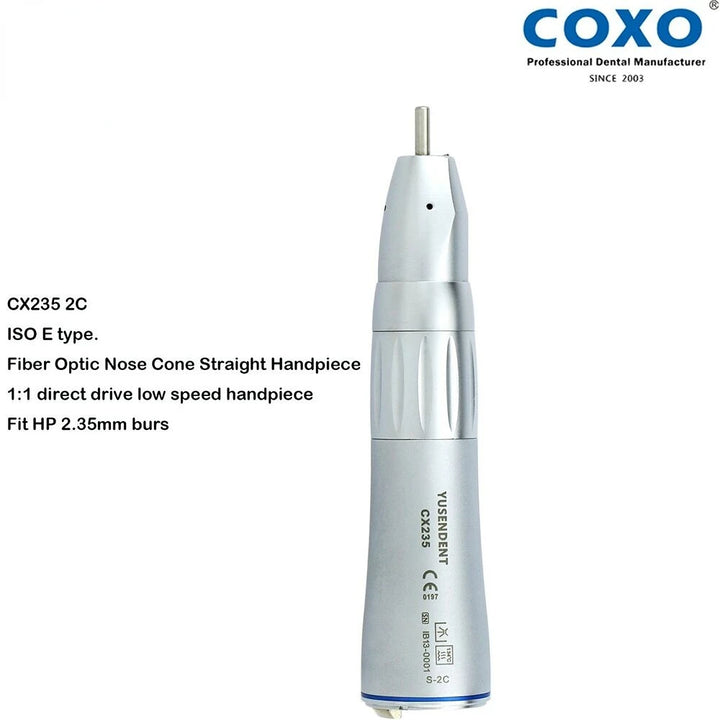

CX235-2C Straight Handpiece (1:1 Fiber Optic)
Rose 202CAPB Contra Angle (1:1 Fiber Optic)
Rose 202CAPB - FG Contra Angle (1:1 Fiber Optic)
Rose 202CAP Contra Angle (1:1)
Rose 202CAP - FG Contra Angle (1:1)
CX235-1B Contra Angle (1:1)
CX235-2B Straight Handpiece (1:1)

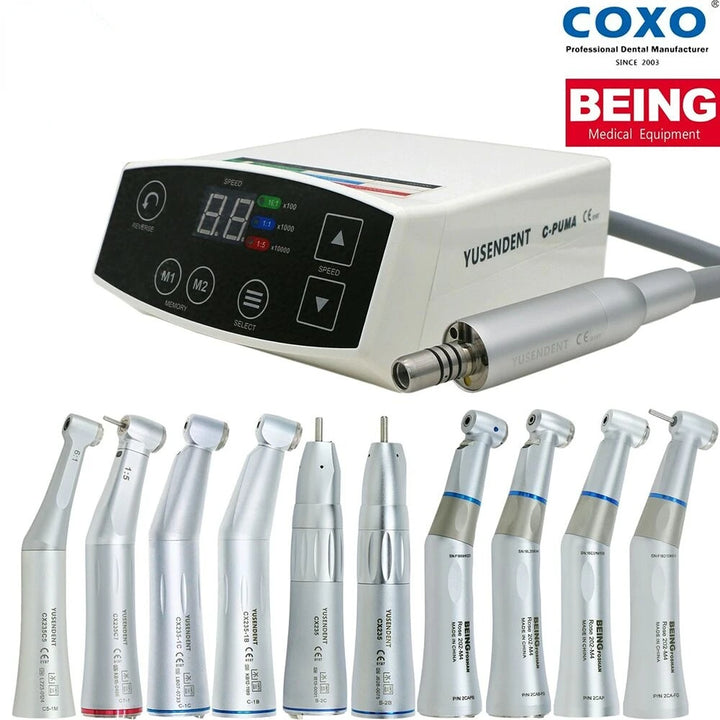

Offer package:

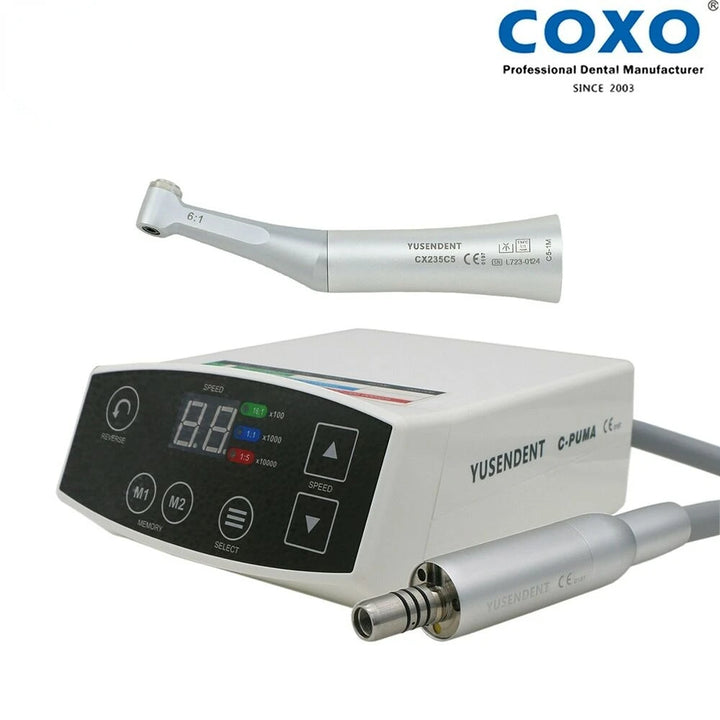

C Puma & CX235 C5-1M 6:1 Reduction Contra Angle
C Puma & CX235 C7-1 Contra Angle (1:5 Fiber Optic)

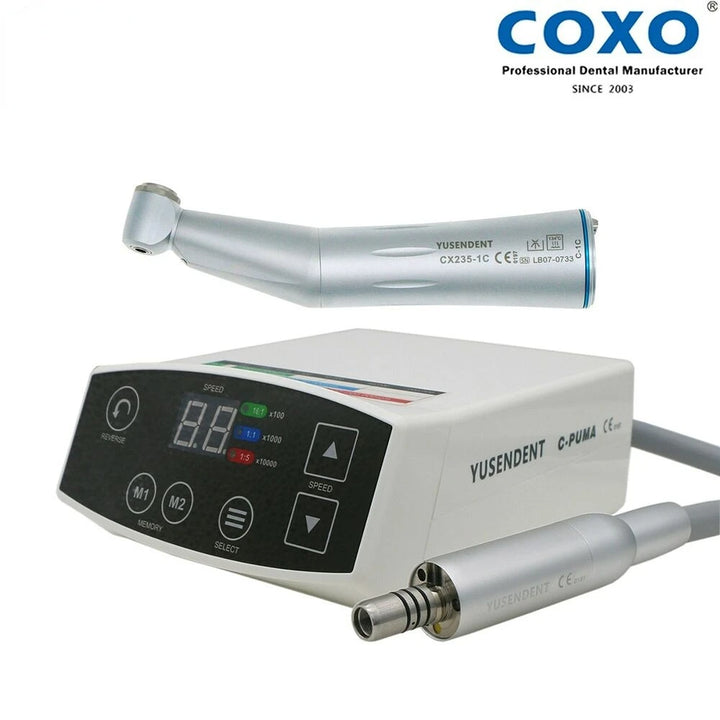

C Puma & CX235-1C Contra Angle (1:1 Fiber Optic)
C Puma & CX235-2C Straight Handpiece (1:1 Fiber Optic)
C Puma & Rose 202CAPB Contra Angle (1:1 Fiber Optic)
C Puma & Rose 202CAP Contra Angle (1:1)
C Puma & Rose 202CAPB - FG Contra Angle (1:1 Fiber Optic)
C Puma & Rose 202CAP - FG Contra Angle (1:1)

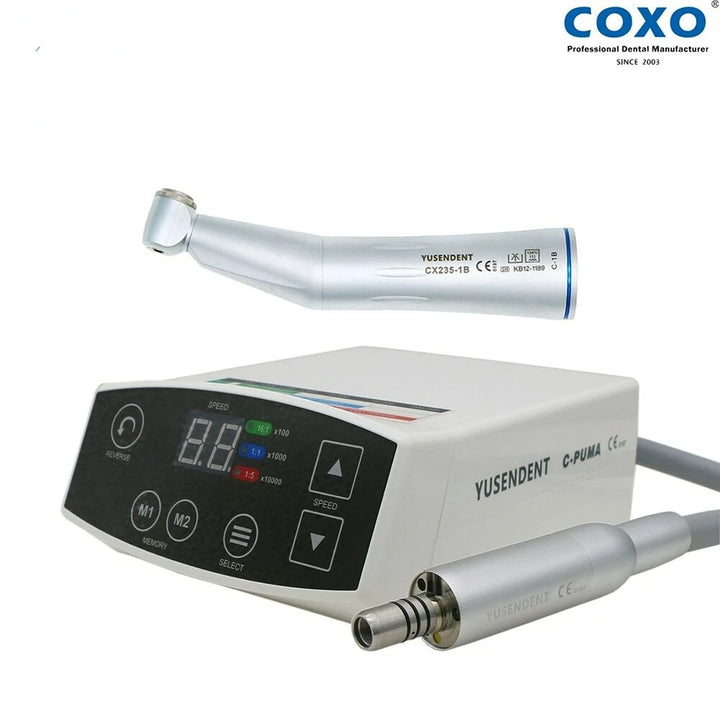

C Puma & CX235-1B Contra Angle (1:1)

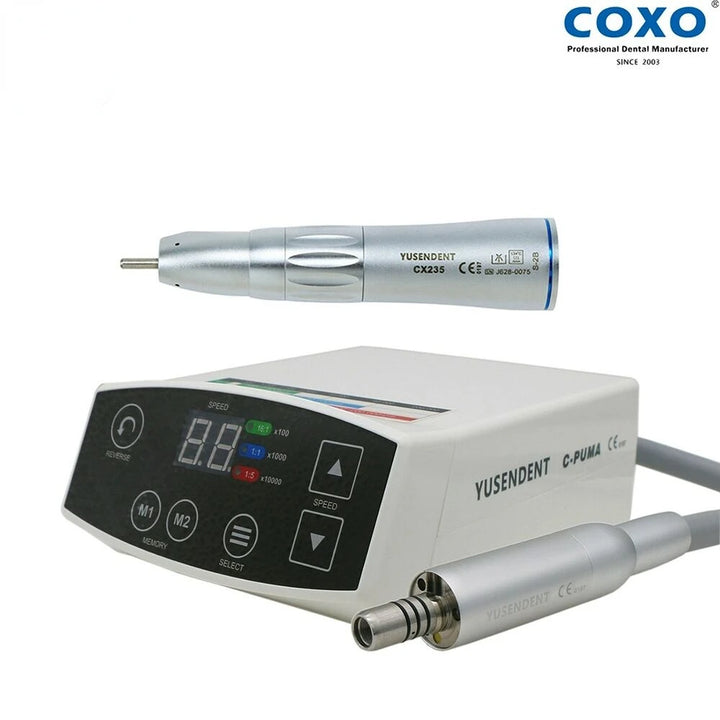

C Puma & CX235-2B Straight Handpiece (1:1)

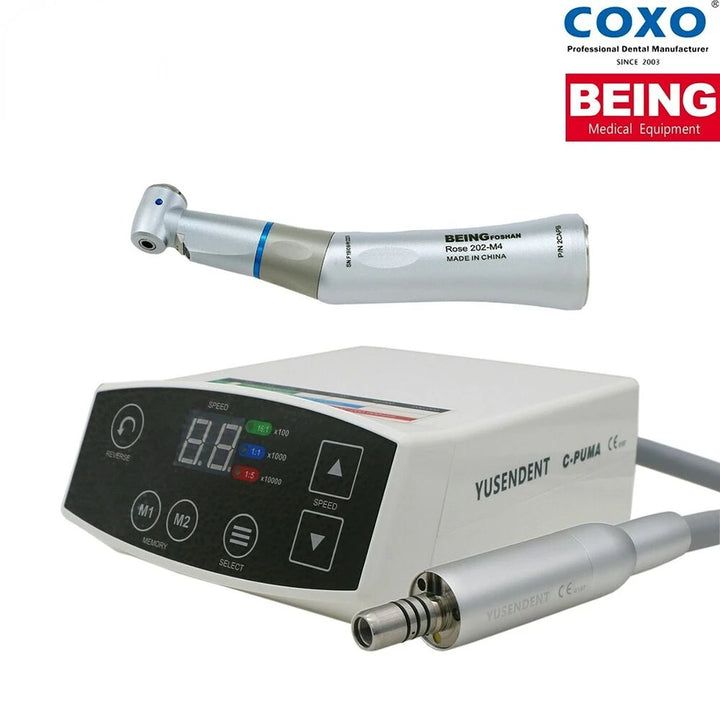

2 Holes C-PUMA
Electric LED Micro Motor
Simple operating system

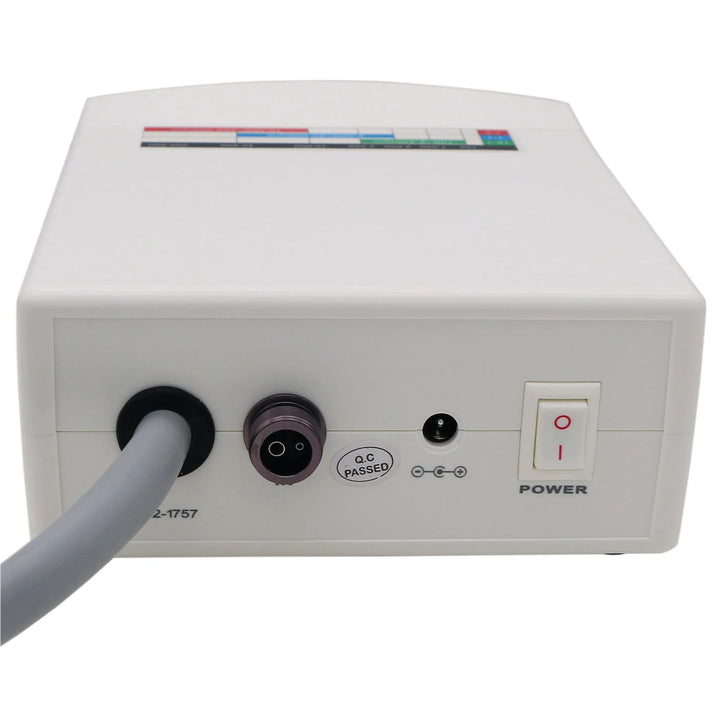

Conect the dental unit to the C Puma with a 2 holes handpiece tubing.use the foot pedal to control the electric motor.

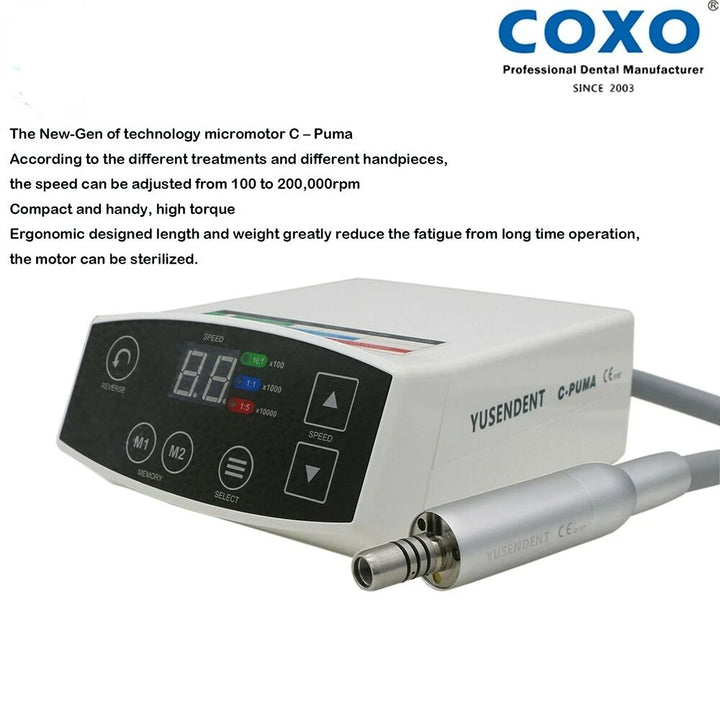

The New-Gen of technology micromotor C – Puma
According to the different treatments and different handpieces,the speed can be adjusted from 100 to 200,000rpm
Compact and handy, high torque
Ergonomic designed length and weight greatly reduce the fatigue from long time operation, the motor can be sterilized.
Operation interface:
Reverse button
Memory Program:M1 M2
Digital value: indicate the current speed
Speed button
Speed light
Rotational speed ratio button

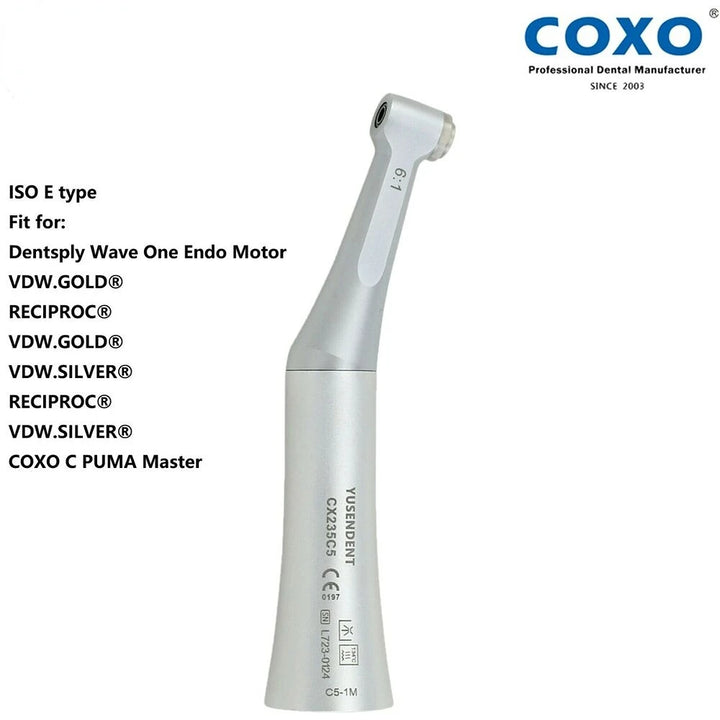

CX235 C5-1M 6:1 Reduction Contra Angle
Similar with Dentsply Sirona Endo 6:1 Endodontic Handpiece
Fit for Dentsply Wave One Endo Motor / COXO C PUMA Master
RPM Range: Up To 6,600 RPM
Motor Type: Electric
ISO E type
Gear Ratio: 6:1 reduction

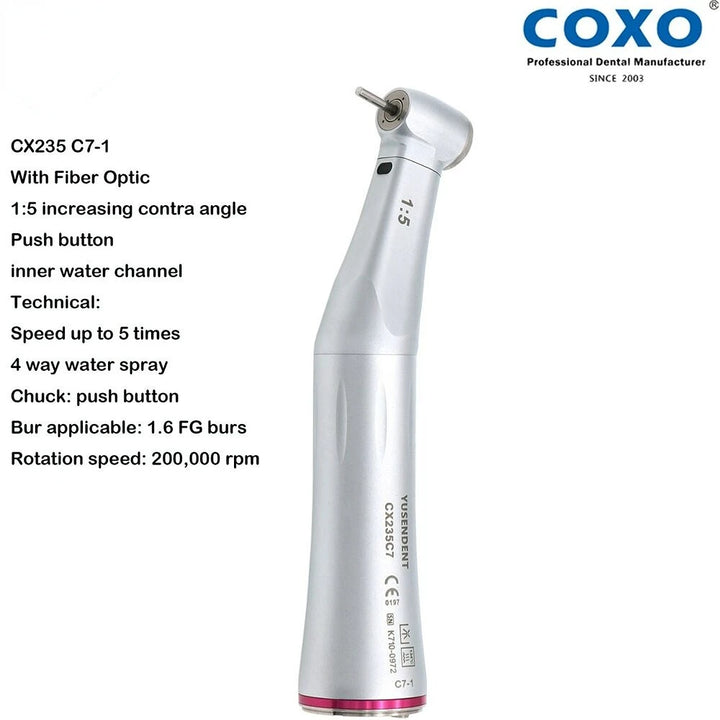

CX235 C7-1
With Fiber Optic
1:5 increasing contra angle
Push button
inner water channel
Technical:
Speed up to 5 times
4 way water spray
Chuck: push button
Bur applicable: 1.6 FG burs
Rotation speed: 200,000 rpm

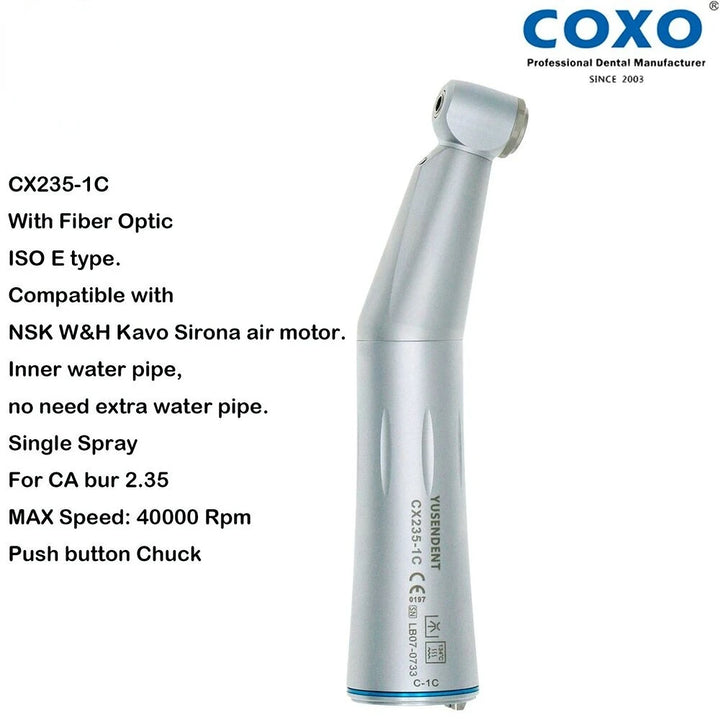

CX235-1C
With Fiber Optic
ISO E type. Compatible with NSK WH Kavo Sirona air motor.
For CA bur 2.35
MAX Speed: 40000 Rpm
Push button Chuck
Air pressure: 0.3Mpa
Speed ratio: 1:1direct drive
Rotation speed: about 20,000rpm
Bur applicable: φ2.35-0.016mm(ISO1797-1)
Noise: ≤70dB
Bulb: LED
Rose 202CAPB
With Fiber Optic
INTRAmatic Head fit Kavo, for Kavo contra angle
Slow Speed Fiber Optic Contra angle handpiece
1:1 Ratio E type contra angle handpiece
internal spray nozzle pipe
IntraMatic Push button Head
Air Pressure: 245-392Kpa(2.5-4.0 kgf/cm²)
Water Pressure: 198Kpa (2kg)
Rotation Speed: 22,000-27,000 rpm
Chuck Type: Push Button
Bur Applicable: Φ2.334-2.355mm
Noise: ≤70dB

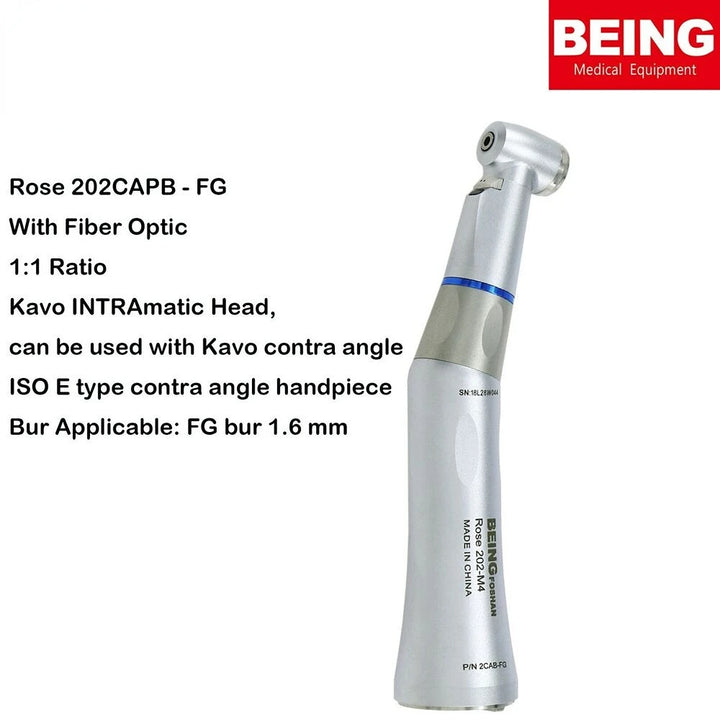

Rose 202CAPB - FG With Fiber Optic
INTRAmatic Head fit Kavo, for Kavo contra angle
Slow Speed Fiber Optic Contra angle handpiece
1:1 Ratio E type contra angle handpiece
internal spray nozzle pipe
IntraMatic Push button Head
Air Pressure: 245-392Kpa(2.5-4.0 kgf/cm²)
Water Pressure: 198Kpa (2kg)
Rotation Speed: 22,000-27,000 rpm
Chuck Type: Push Button
Bur Applicable: FG bur 1.6 mm
Noise: ≤70dB
Rose 202CAP
INTRAmatic Head fit Kavo, for Kavo contra angle.
E-type contra-angle handpiece 1:1 Ratio,with Internal Cooling System
Air Pressure: 245-392Kpa(2.5-4.0 kgf/cm²)
Water Pressure: 198Kpa (2kg)
Rotation Speed: 22,000-27,000 rpm
Chuck Type: Push Button
Bur Applicable: Φ2.334-2.355mm
Noise: ≤70dB

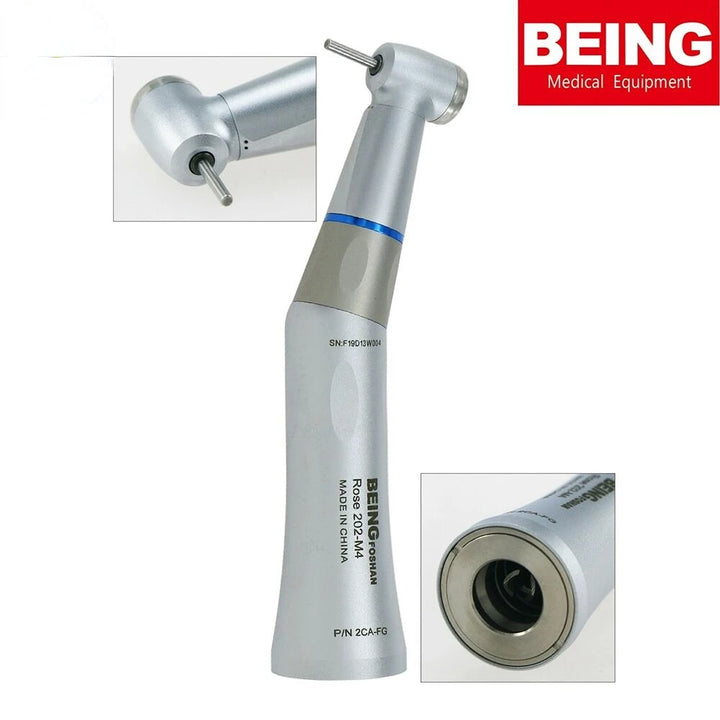

Rose 202CAP - FG Contra Angle (1:1)
INTRAmatic Head fit Kavo, for Kavo contra angle.
E-type contra-angle handpiece 1:1 Ratio,with Internal Cooling System
Air Pressure: 245-392Kpa(2.5-4.0 kgf/cm²)
Water Pressure: 198Kpa (2kg)
Rotation Speed: 22,000-27,000 rpm
Chuck Type: Push Button
Bur Applicable: FG bur 1.6 mm
Noise: ≤70dB

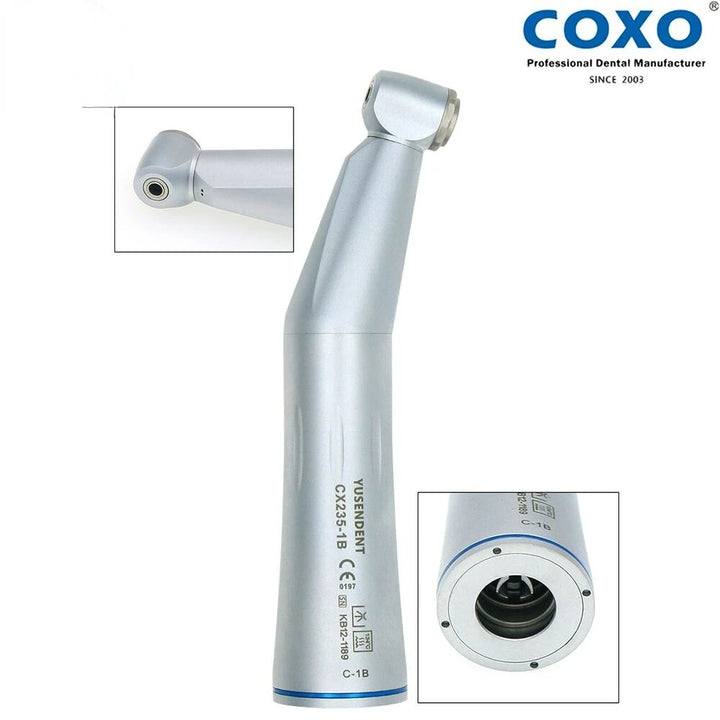

CX235-1B Contra Angle (1:1)
Brand:YUSEDENT
Type:CX235-1B
CE certificated
Inner Channel
Push Button Contra Angle
1:1 Direct Drive
Air pressure: 0.3Mpa
Rotation speed: about 20,000rpm
Bur applicable: φ2.35-0.016mm(ISO1797-1)
Noise: ≤70dB

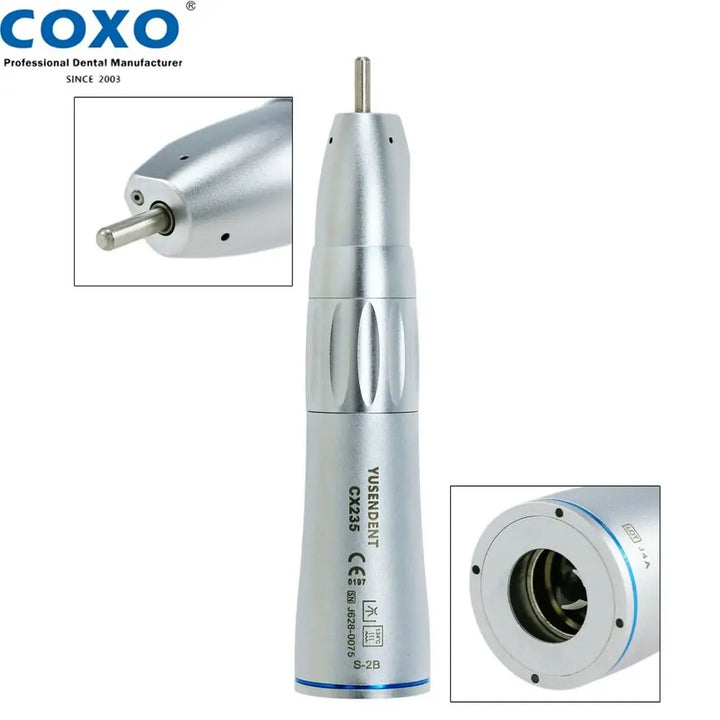

CX235-2B
Straight Handpiece
Innter channel Low speed highpiece, 1:1
Air pressure:0.3Mpa
Rotation speed:about 20,000 rpm
Bur applicabie:Φ2.35-0.016mm (ISO1797-1)
Noise: ≤70dB
Compatible with NSK brand handpiece,
Straight angle handpieces compatible with S MAX M65
Germany Technology and precision manufacture
|
