COXO Dental Electric Motor LED Handpiece 1:1 1:5 Contra Angle Fiber Optic C PUMA 4 Holes ISO E Type

$44.19

HURRY! ONLY LEFT IN STOCK.

color: 202CAPH Head

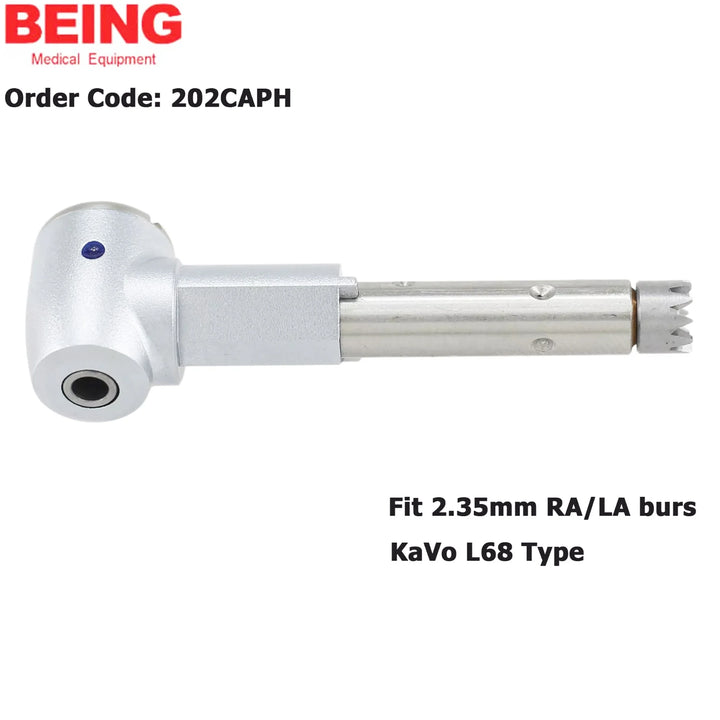

202CAPH Head
C PUMA
CX235-1C
CX235-2C
CX235C7-5
CX235C7-4
CX235C7-3
Rose 202SHB
C PUMA and C7-4
C PUMA and 202SHB
C PUMA and 202CAPB
C PUMA and C7-5

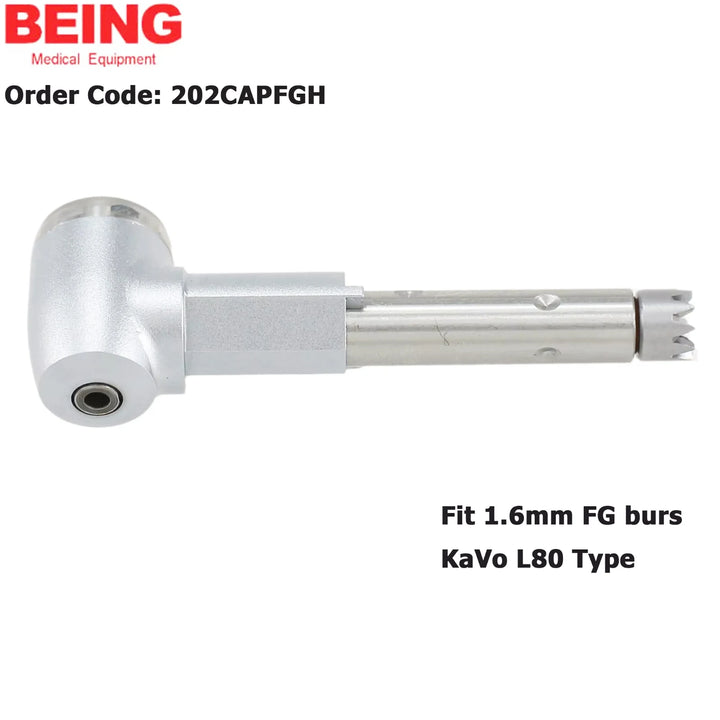

202CAPFGH Head
C PUMA and 2C
C PUMA and C7-3
PUMA and 202CAB-FG
C PUMA and 1C
Rose 202CAPB
Rose 202CAB-FG

visamasteramazon paymentsamerican expressapple paypaypal
Description

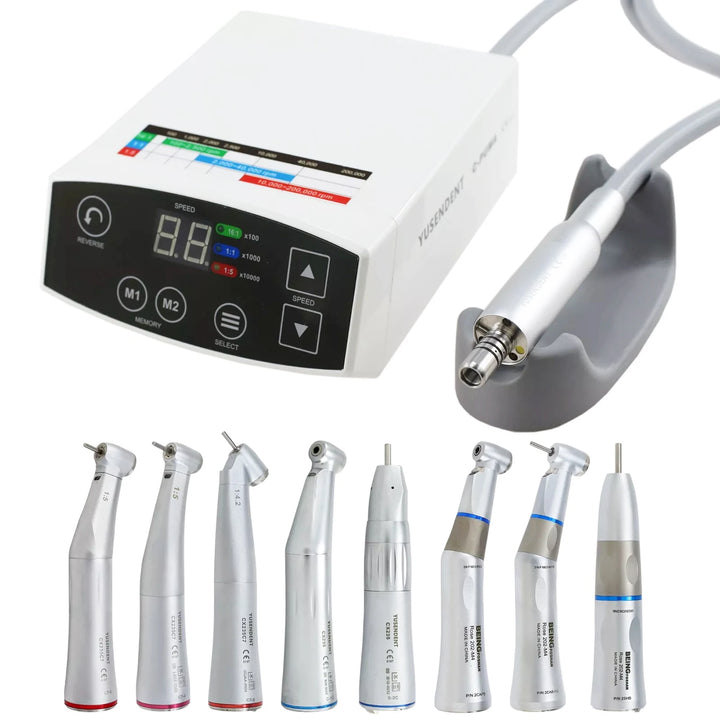

COXO Dental Electric Motor LED Handpiece 1:1 1:5 Contra Angle Fiber Optic C PUMA

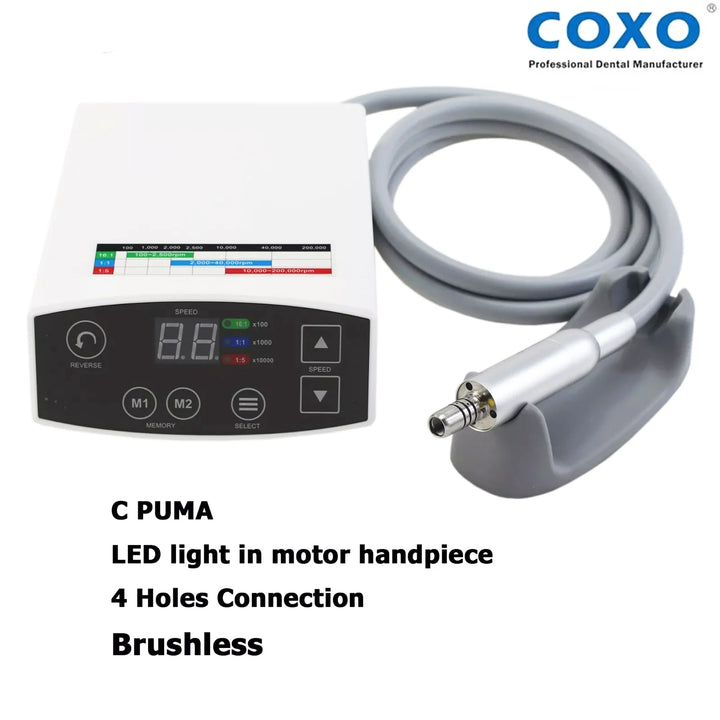

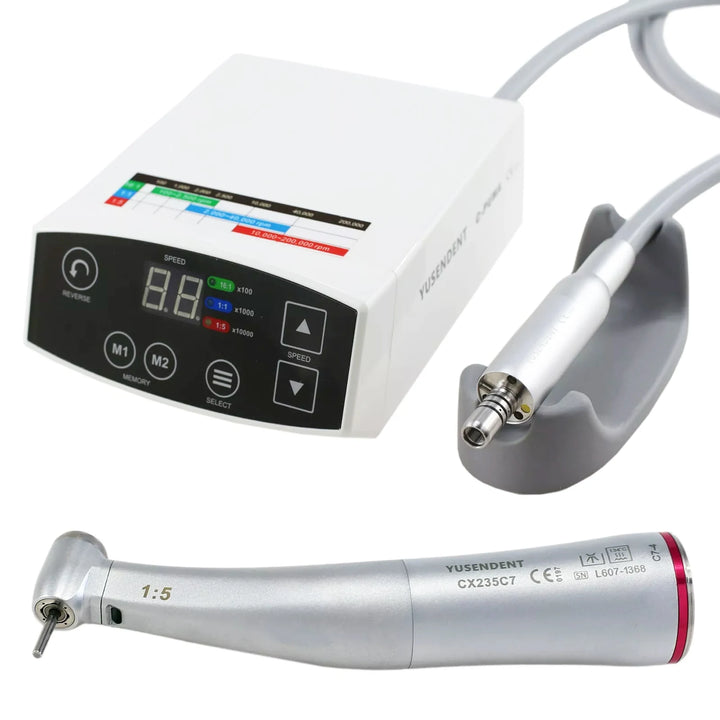

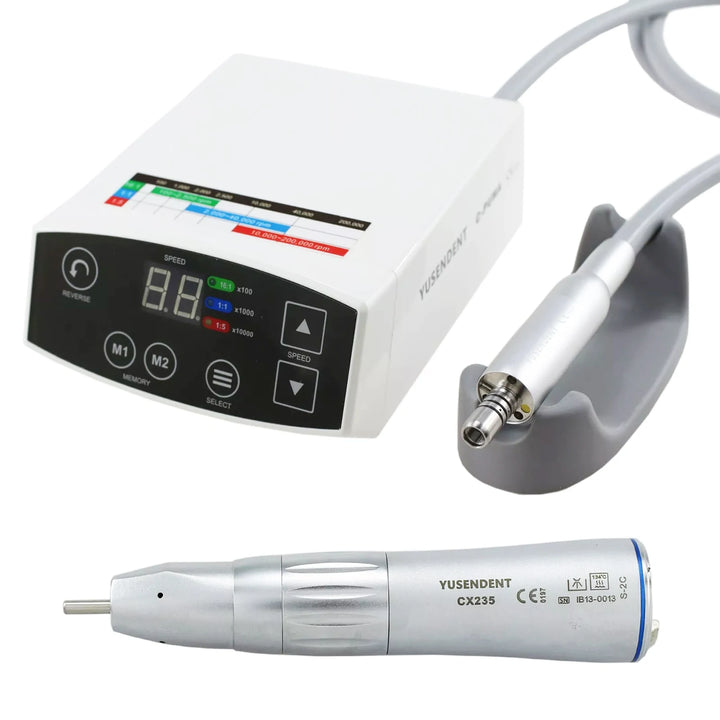

Electric Motor: C PUMA

Features:

  • Made by COXO, with COXO's logo "YUSENDENT"

  • Dental electrical micromotor system- C PUMA

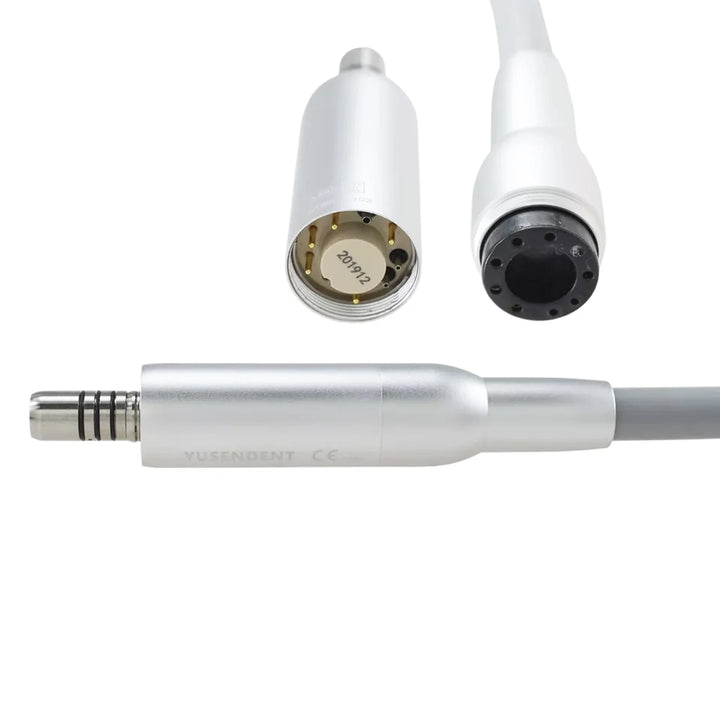

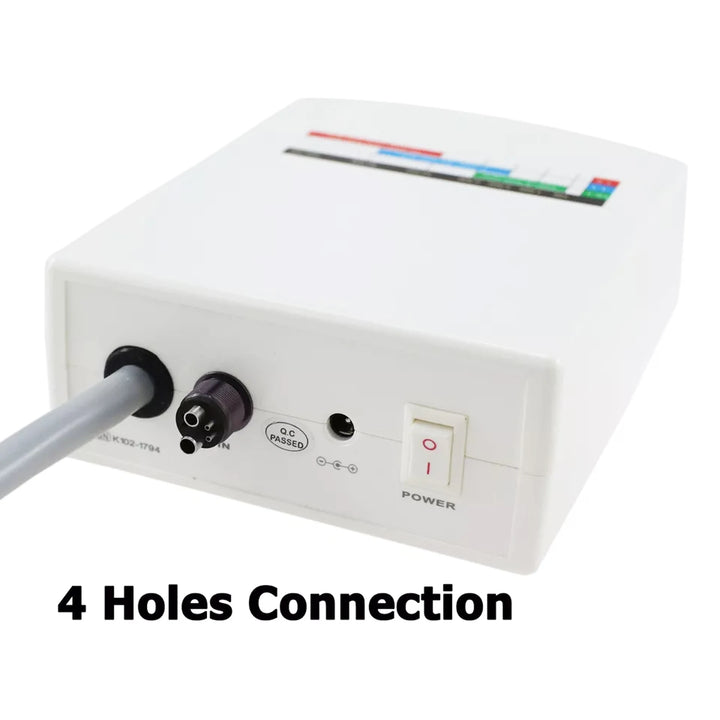

  • 4 Holes connection

  • Similar to Original NSK NLX nano S120

  • Powerful LED light in motor

  • Brushless

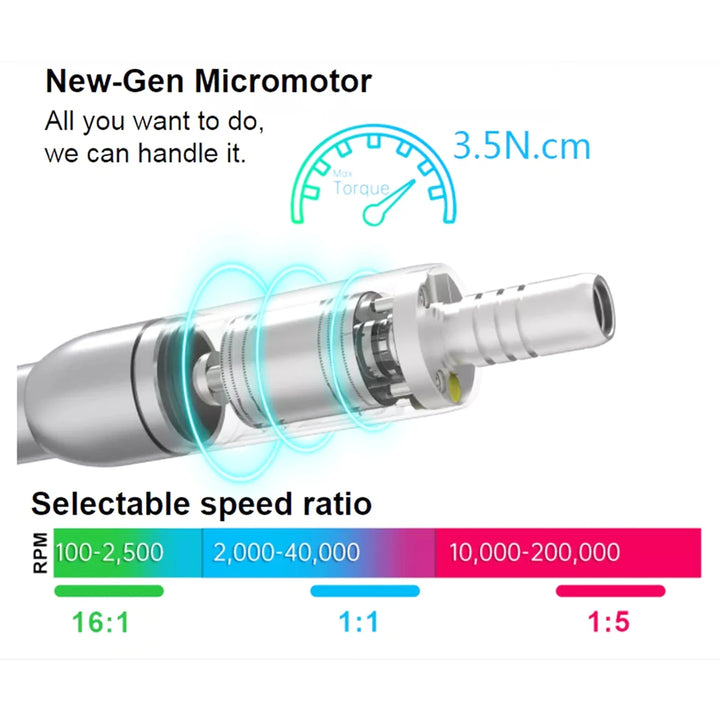

  • Selectable speed ratio: 1:1 1:5 16:1

  • Speed range of 100-200,000 min-1

  • Max Torque 3.5N.cm

  • Replacement motor handpiece is fit for C PUMA, C PUMA INT+ and C PUMA master electric motor system.

  • ISO E Type

Descriptions:

  • Conect the dental unit to the C Puma with 4 holes handpiece tubing, use the foot pedal to control the electric motor.

  • Combined with a wide range of contra-angles and straight handpiece, it covers a speed range of 100-200,000 min-1, to make it suitable for any applications.

  • Selectable speed ratio: 1:1 1:5 16:1

  • Motor handpiece: Compact and handy ; Ergonomically designed length and weight greatly reduce the fatigue from long time operation, but it is as powerful as the current brushless clinical micromotors and offers the same speed range, thus enabling practitioners use contra-angles and micromotors just like the use of air turbines.

  • The New-Gen of technology micromotor, Max Torque 3.5N.cm

  • LED light in motor, Powerful LED Maximum:1000lux

  • Simple operating system, Just a few button can adjust the porameters you need

  • The motor can be sterilized.

  • ISO E Type

Technical Details:

Micro motor:

  • Torque output: Max. 3.5 N.cm

  • Speed range: 2000rpm-40000rpm (1：1)

  • 125rpm-2500rpm (16：1)

  • 10000rpm-200000rpm(1：5)

  • LED light > 25000LUX

  • Light: white LED

  • 135℃ autoclaved sterilization（only for micromotor）

  • Volume: 126mm  Ø 23m

Main unit:

  • Voltage: AC 100-240V

  • Out: Max. 120W

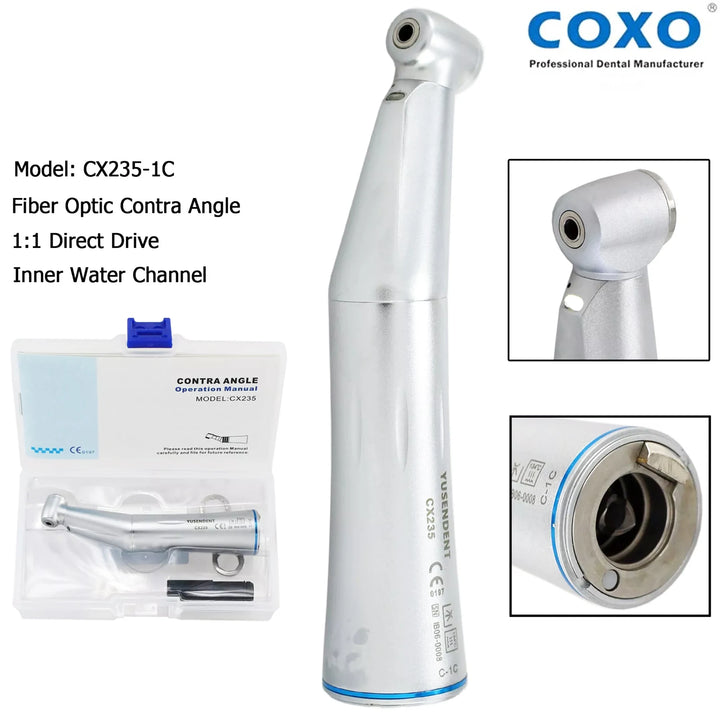

CX235-1C / CX235-2C (1:1)
Features:

  • Made by COXO, with COXO's new logo "YUSENDENT"

  • 1: 1 direct drive Low speed handpiece

  • CX235-1C Contra Angle

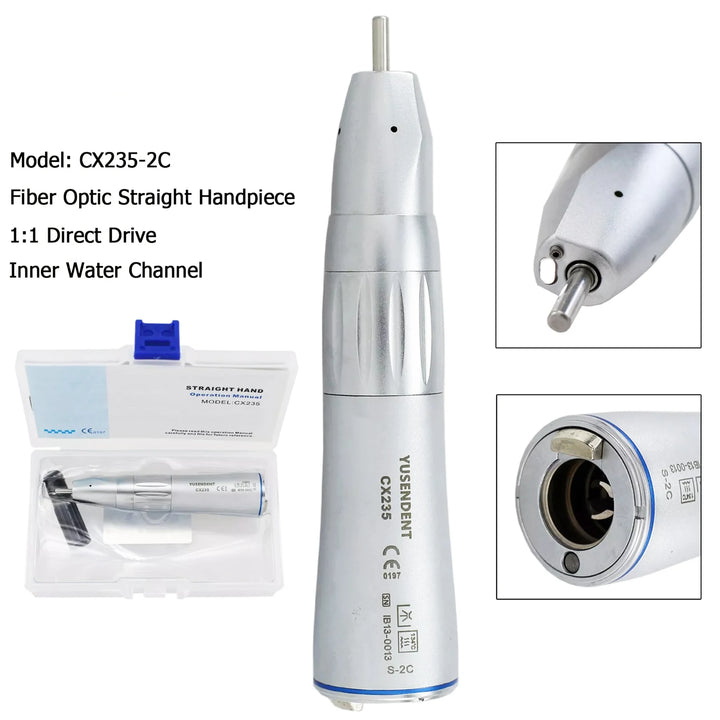

  • CX235-2C Straight Handpiece

  • Fiber Optic

  • ISO E Type, fits for air motors and electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air® and ect.)

Technical:

  • Chuck type: push button

  • Spray: Inner channel

  • Bur applicable:  Ø2.35mm

  • Rotation speed: MAX 40, 000rpm

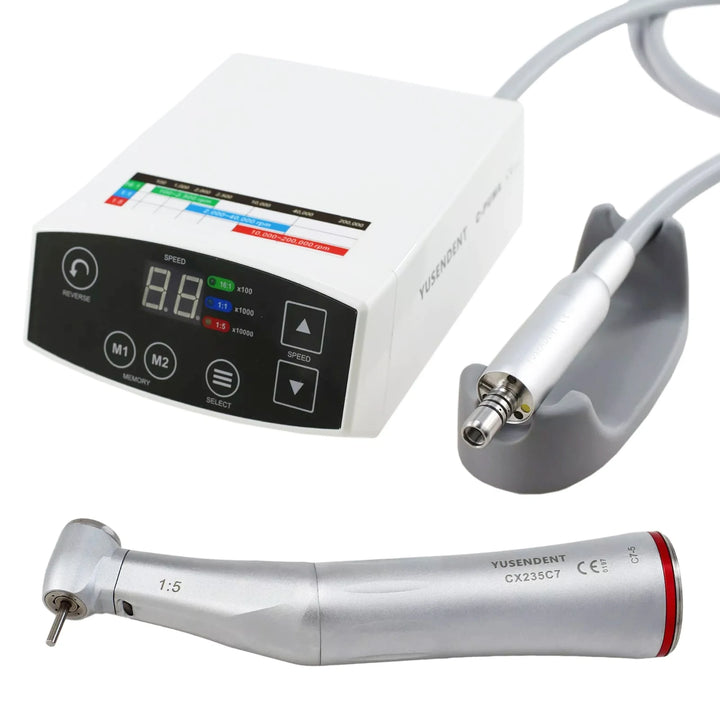

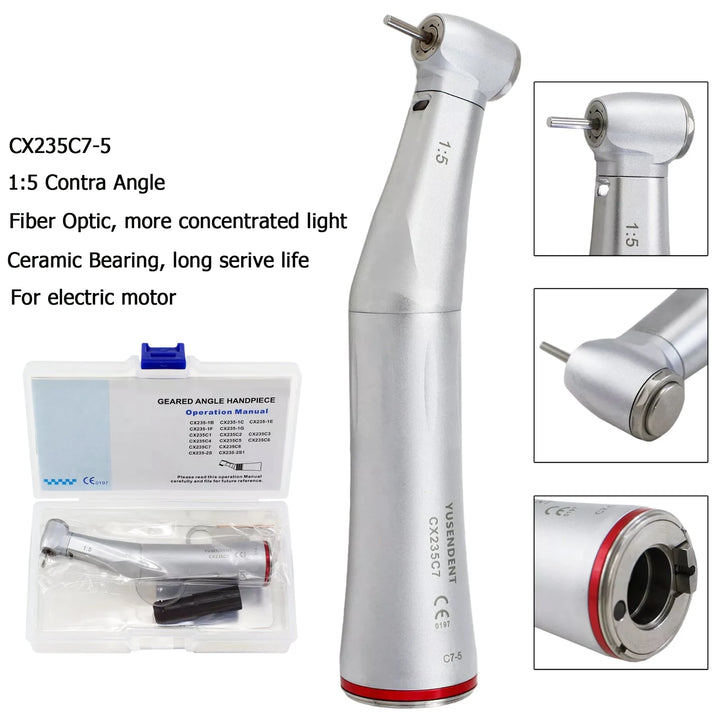

CX235C7-5 Contra Angle (1:5)
1. The gears are machined by Swiss CNC high-precision gears. High precision, long life, low noise
2. The gear adopts the special materials imported from Japan, After special heat treatment
3. At present, the only model in China of this kind has reached 200,000 RPM, a products that work well!
4. Bid 2,000 pieces with NSK and European big brands in the French market, the only product in China won the bid!
Features:

  • Model: CX235C7-5, Upgrade version of CX235C7-1, more performance

  • 1:5 Increasing Speed Contra Angle

  • Fiber Optic

  • Similar with NSK Ti MAX X95L

  • Specially designed for dental electric motor

  • Fast and precise working, best reliability and perfect light

  • Use Japanese Ceramic Bearings and Imported Material of Gear, Much more durable than other cheap ones in ebay

  • ISO E Type, fits for eletric motors (NSK, KaVo, Sirona, W&H, Bien-Air and ect.)

Description:

  • Upgrade version of CX235C7-1, More Concentrated Light, Increase the illumination by 100%

  • Add Sanitary Hole, Reduce the risk of dirt entering

  • Better Waterproof Structure, To better prevent water from entering the head

  • V Shape Water Spray Structure, More stable and better cooling

  • Add Dust Cover, Prevent overheating of the head

  • Improved shaft structure, service lift increased by more than 90%

Technical Specifications:

  • Inner Water Channel

  • 4 way water spray

  • Chuck type: push button

  • Bur applicable: FG 1.6mm burs

  • Rotation speed: about 200,000rpm

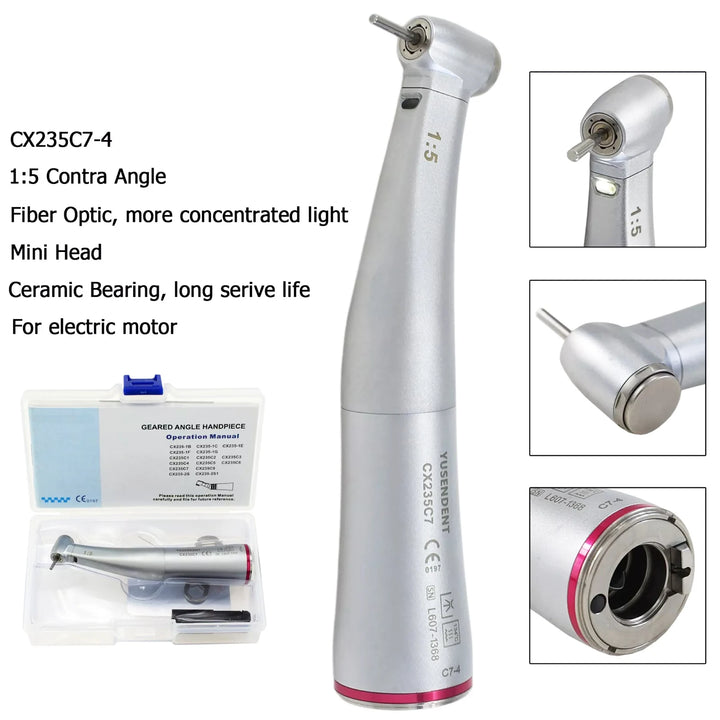

CX235C7-4 Contra Angle (1:5 / Mini Head)
Features:

  • Made by COXO, with COXO's new logo "YUSENDENT"

  • Model: CX235C7-4

  • 1:5 Speed increase Contra Angle

  • Fiber Optic

  • Smaller head with 92° angle, larger elevation angle, making it easier to reach the back teeth

  • Similar with NSK Ti MAX Z85L

  • For Dental Electric Motor

  • ISO E Type, fits for electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air®)

Descriptions:

  • Increase Sanitary Hole, Reduce the risk of dirt entering, Extend service life

  • Better Angle, Improved handpiece and head angle, making it easier to reach the back teeth

  • Smaller Head, More compact head, more flexible use

  • Reduce Length, Less weight, reduce fatigue after long-term use

  • Ceramic Bearing: More stable; Longer service life

  • More Concentrated Light, Increase the illumination by 100%

Technical Specifications:

  • 4 Way water spray

  • Inner water channel

  • Chuck type: push button

  • Bur applicable: 1.6mm

  • Rotation speed: about 200,000rpm

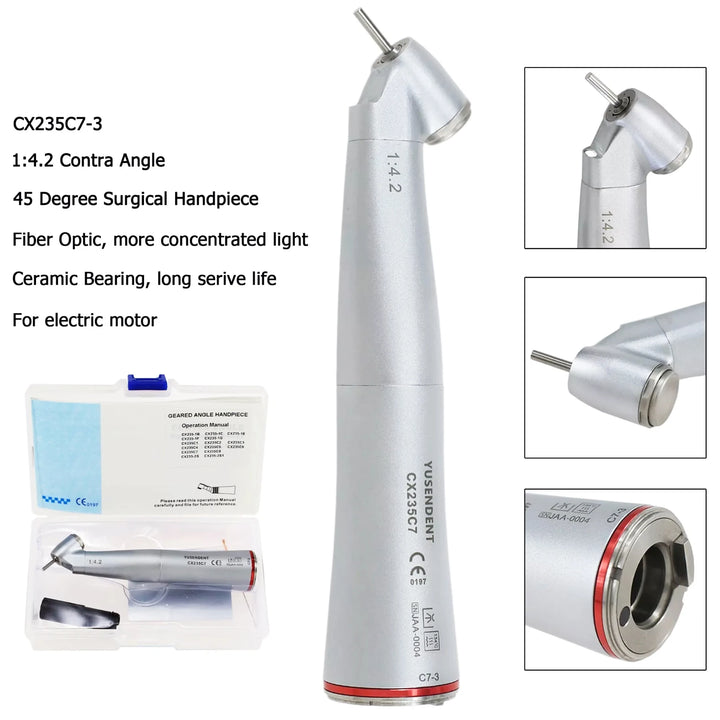

CX235C7-3 Contra Angle (1:4.2 / 45 Degree)
Features:

  • Made by COXO, with COXO's new logo "YUSENDENT"

  • 1:4.2 speed increasing contra angle

  • Fiber Optic, more clear vision

  • 45 degree surgical handpeice: The 45-degree angled head allows easy access to the molar region, minimizing interference from the front teeth and adjacent teeth.

  • Similar with NSK Ti MAX Z45L

  • For dental electric Motor

  • ISO E Type, fits for electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air® and ect.)

Descriptions:

  • Perfect accessibility of 45 degree angle fiber optic handpiece provides the best adaptability and maximum performance for teeth easy access to the molar area. Minimize interference with the front teeth and adjacent teeth. 45 degree inclined head for supine accessibility and maximum visibility.

  • 4 way water spray: Effectively and quickly cool the burs; Spraying water to pervent subcutaneous enphysema during surgery

  • Super cutting force. Up to 168,000 RPM / min

Technical:

  • Chuck type: push button

  • Spray: Inner water channel

  • Bur applicable: 1.6mm

  • Rotation speed: about 168,000rpm

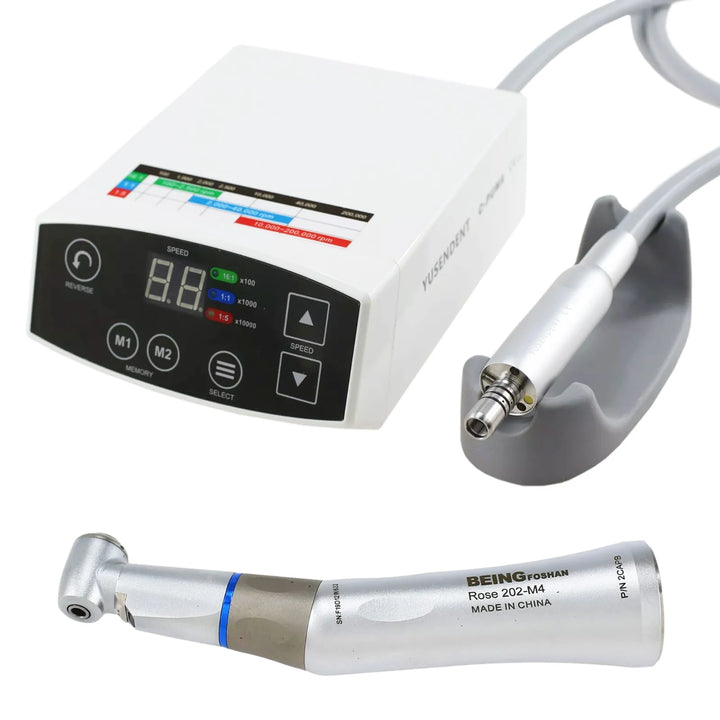

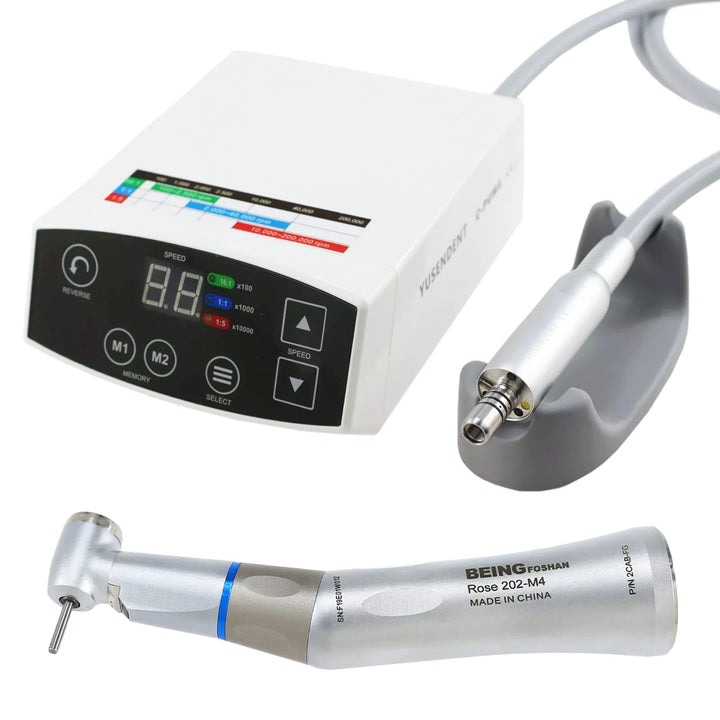

Rose 202SHB / Rose 202CAPB / Rose 202CAB-FG (1:1)
Features:

  • Brand: BEING; top quality

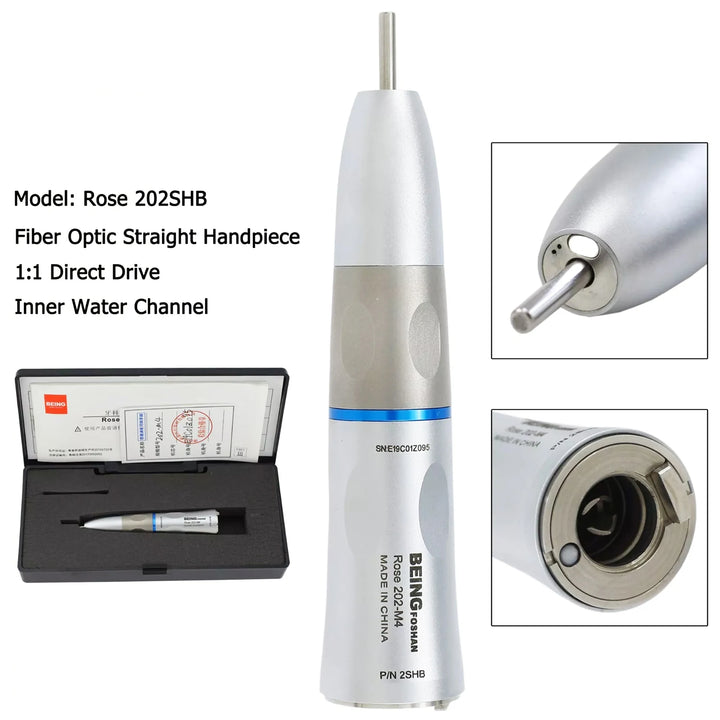

  • Rose 202SHB Straight Handpiece: For HP 2.35mm burs

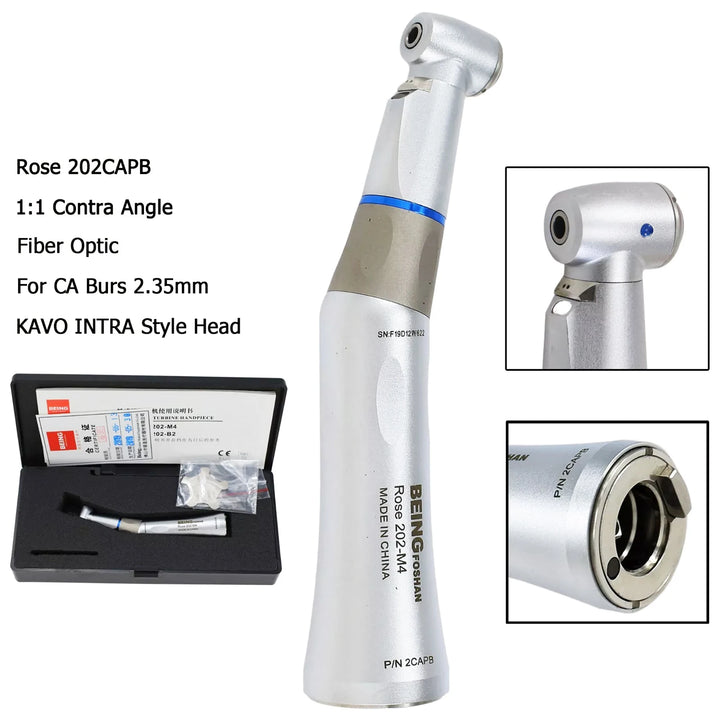

  • Rose 202CAPB contra angle: For CA 2.35mm burs

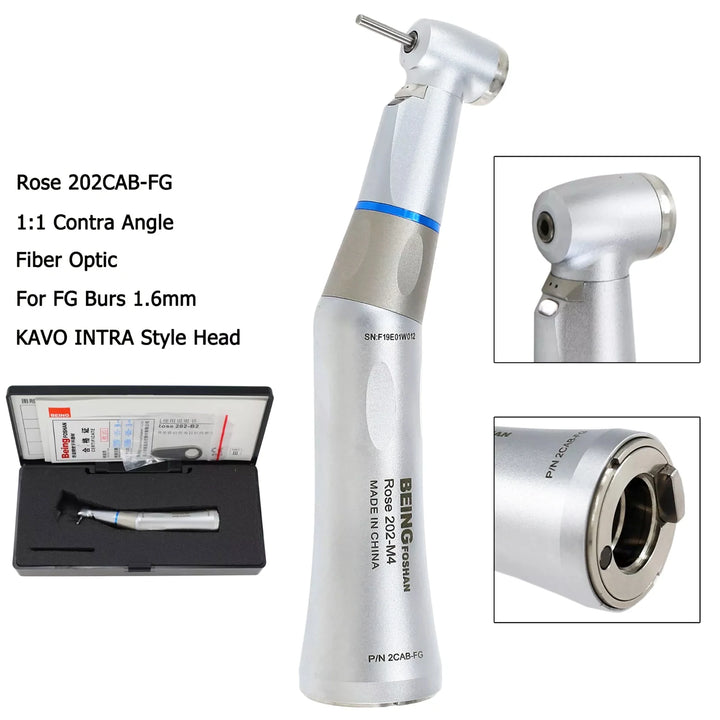

  • Rose 202CAB-FG contra angle: For FG 1.6mm burs

  • Fiber Optic

  • 1:1 direct dirve Low Speed Handpiece

  • Internal Cooling System

  • KAVO INTRA style head, the removable head can be used with KAVO matic series contra angle with INTRA head

  • ISO E Type, fits for air motors or electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air® and ect.)

Specifications:

  • Chuck Type: Push Button

  • Rotation Speed: 20,000-250,000 rpm

  • Bur Applicable: Φ2.334-2.355mm

  • Air Pressure: 245-392Kpa (2.5-4.0 kgf/cm²)

  • Water Pressure: 200Kpa (2kg)

  • Noise: ≤70dB
