COXO Dental Electric Motor LED Handpiece 1:5 Contra Angle Fiber Optic C-PUMA Compatible NSK

COXO Dental Electric Motor LED Handpiece 1:5 Contra Angle Fiber Optic C PUMA NSK

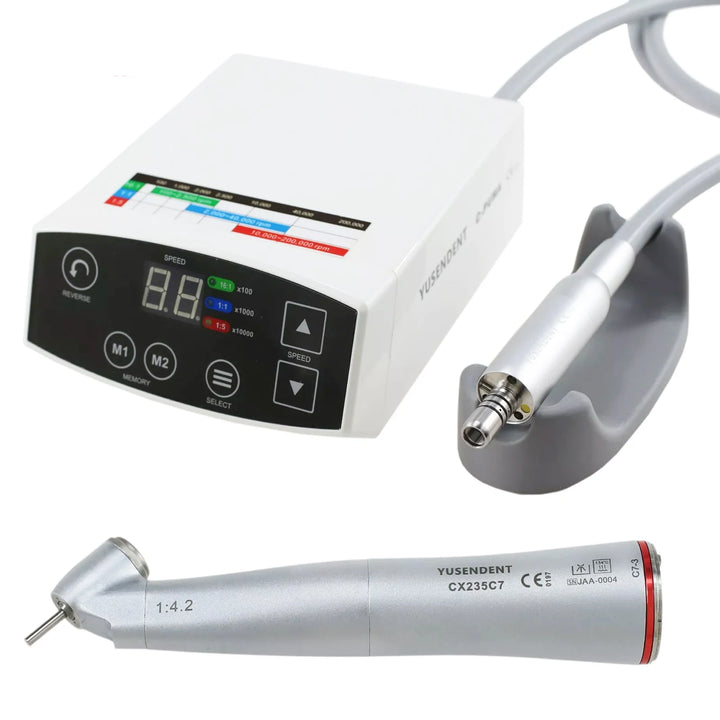

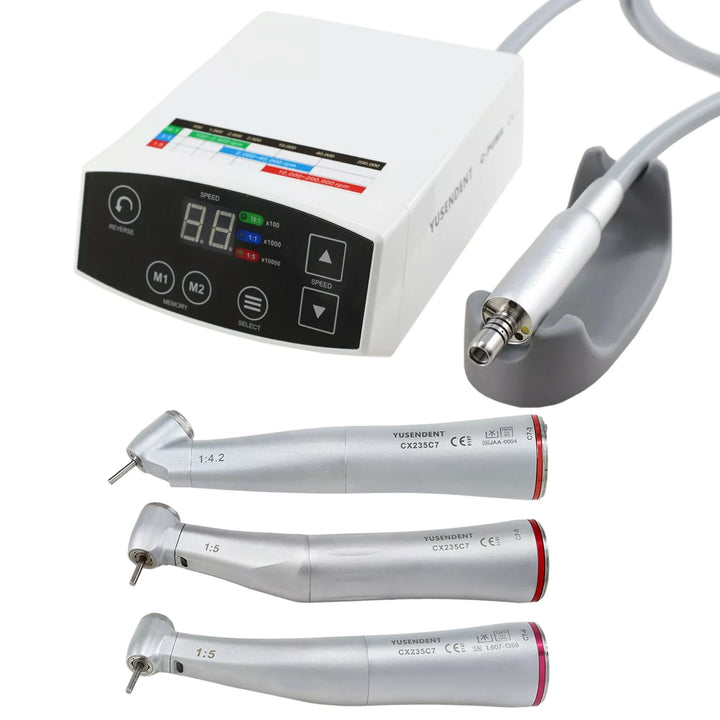

Electric Motor: C PUMA

Features:

• Made by COXO, with COXO's logo "YUSENDENT"

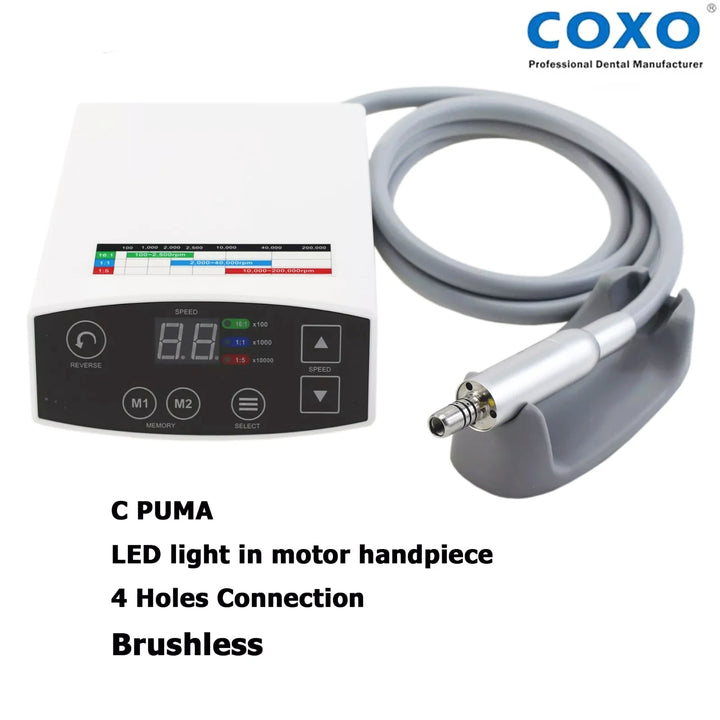

• Dental electrical micromotor system- C PUMA

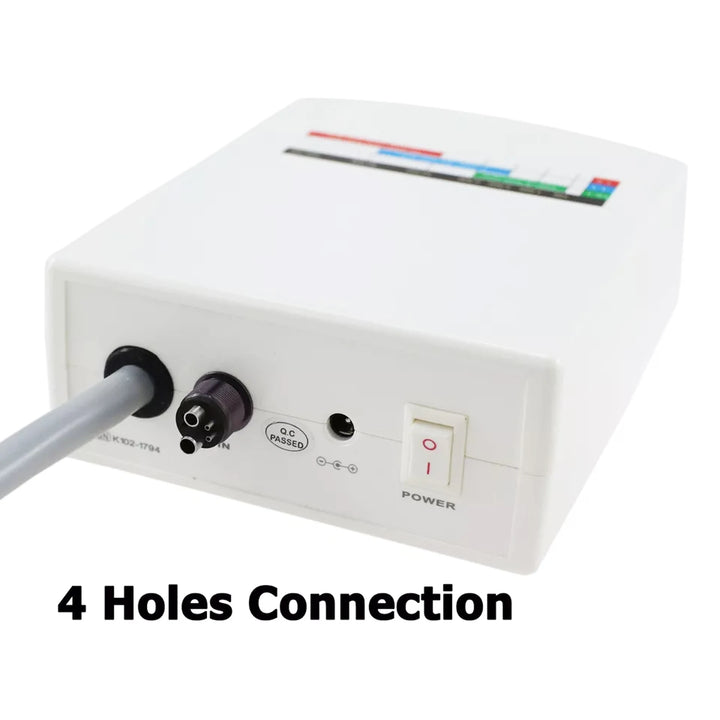

• 4 Holes connection

• Similar to Original NSK NLX nano S120

• Powerful LED light in motor

• Brushless

• Selectable speed ratio: 1:1 1:5 16:1

• Speed range of 100-200,000 min-1

• Max Torque 3.5N.cm

• Replacement motor handpiece is fit for C PUMA, C PUMA INT+ and C PUMA master electric motor system.

• ISO E Type

Descriptions:

• Conect the dental unit to the C Puma with 4 holes handpiece tubing, use the foot pedal to control the electric motor.

• Combined with a wide range of contra-angles and straight handpiece, it covers a speed range of 100-200,000 min-1, to make it suitable for any applications.

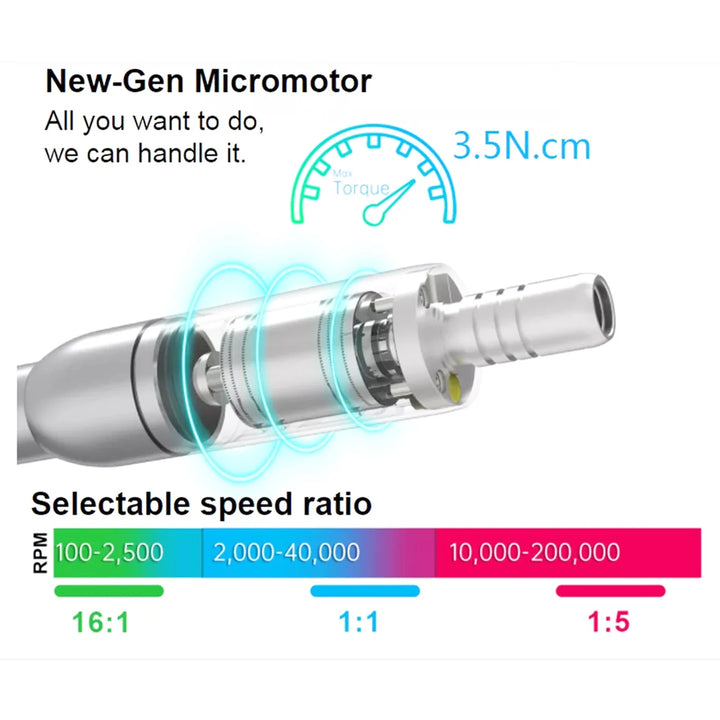

• Selectable speed ratio: 1:1 1:5 16:1

• Motor handpiece: Compact and handy ; Ergonomically designed length and weight greatly reduce the fatigue from long time operation, but it is as powerful as the current brushless clinical micromotors and offers the same speed range, thus enabling practitioners use contra-angles and micromotors just like the use of air turbines.

• The New-Gen of technology micromotor, Max Torque 3.5N.cm

• LED light in motor, Powerful LED Maximum:1000lux

• Simple operating system, Just a few button can adjust the porameters you need

• The motor can be sterilized.

• ISO E Type

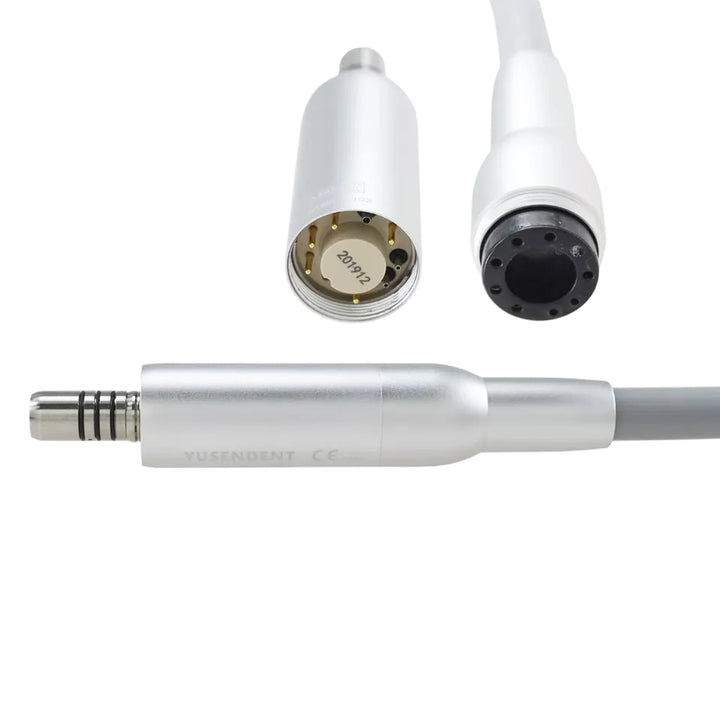

Micro motor:

Torque output: Max. 3.5 N.cm

Speed range: 2000rpm-40000rpm (1：1)

125rpm-2500rpm (16：1)

10000rpm-200000rpm(1：5)

LED light > 25000LUX

Light: white LED

135℃ autoclaved sterilization（only for micromotor）

Volume: 126mm Ø 23m

Main unit:

Voltage: AC 100-240V

Out: Max. 120W

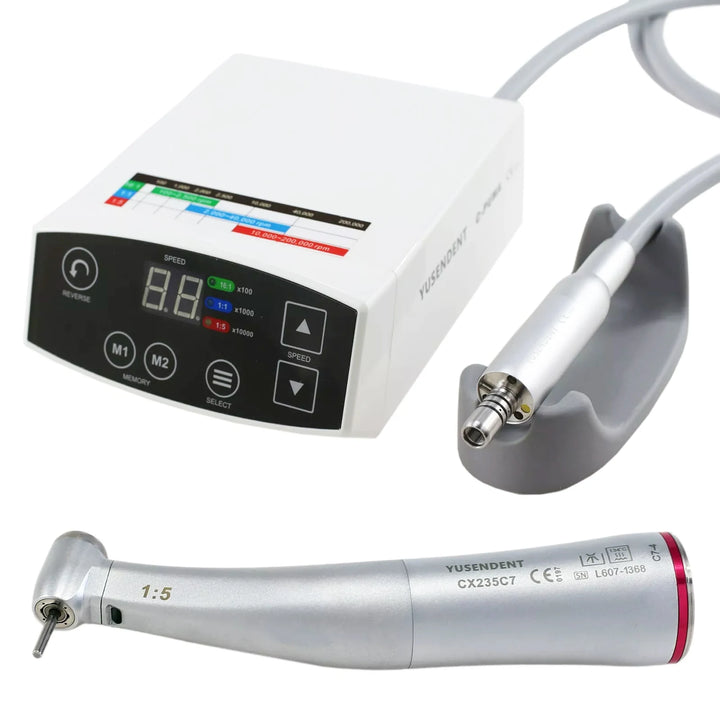

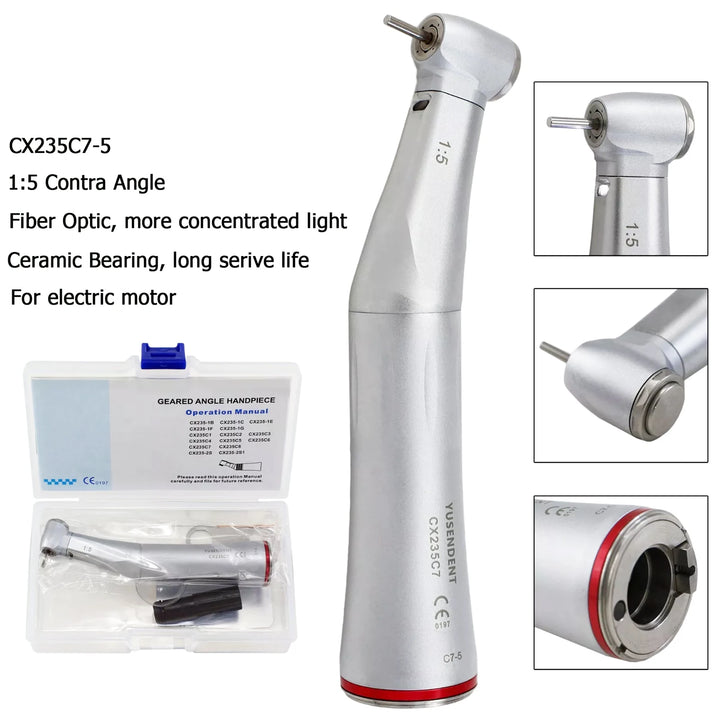

CX235C7-5 Contra Angle (1:5)

1. The gears are machined by Swiss CNC high-precision gears. High precision, long life, low noise

2. The gear adopts the special materials imported from Japan, After special heat treatment

3. At present, the only model in China of this kind has reached 200,000 RPM, a products that work well!

4. Bid 2,000 pieces with NSK and European big brands in the French market, the only product in China won the bid!

Features:

Model: CX235C7-5, Upgrade version of CX235C7-1, more performance

1:5 Increasing Speed Contra Angle

Fiber Optic

Similar with NSK Ti MAX X95L

Specially designed for dental electric motor

Fast and precise working, best reliability and perfect light

Use Japanese Ceramic Bearings and Imported Material of Gear, Much more durable than other cheap ones in ebay

ISO E Type, fits for eletric motors (NSK, KaVo, Sirona, W&H, Bien-Air and ect.)

Description:

Upgrade version of CX235C7-1, More Concentrated Light, Increase the illumination by 100%

Add Sanitary Hole, Reduce the risk of dirt entering

Better Waterproof Structure, To better prevent water from entering the head

V Shape Water Spray Structure, More stable and better cooling

Add Dust Cover, Prevent overheating of the head

Improved shaft structure, service lift increased by more than 90%

Technical Specifications:

Inner Water Channel

4 way water spray

Chuck type: push button

Bur applicable: FG 1.6mm burs

Rotation speed: about 200,000rpm

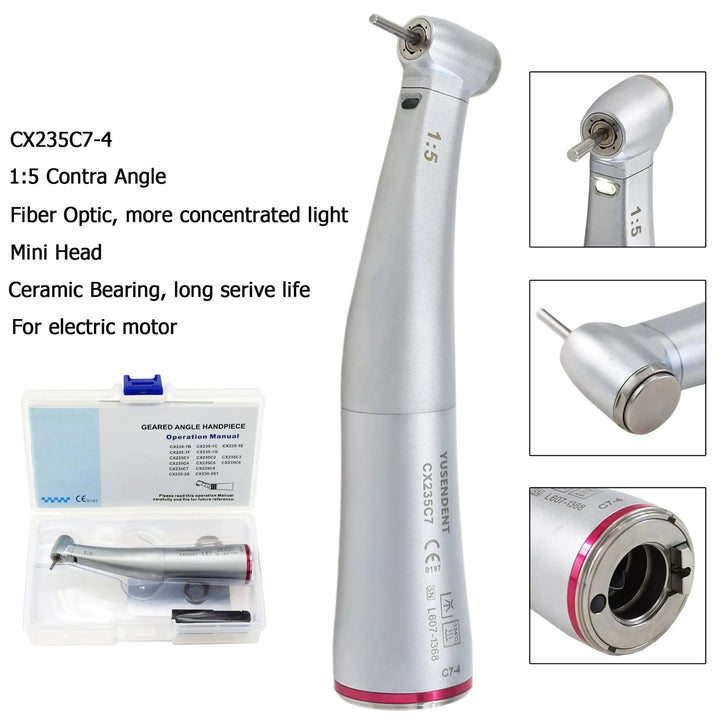

CX235C7-4 Contra Angle (1:5 / Mini Head)

Features:

Made by COXO, with COXO's new logo "YUSENDENT"

Model: CX235C7-4

1:5 Speed increase Contra Angle

Fiber Optic

Smaller head with 92° angle, larger elevation angle, making it easier to reach the back teeth

Similar with NSK Ti MAX Z85L

For Dental Electric Motor

ISO E Type, fits for electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air®)

Descriptions:

Increase Sanitary Hole, Reduce the risk of dirt entering, Extend service life

Better Angle, Improved handpiece and head angle, making it easier to reach the back teeth

Smaller Head, More compact head, more flexible use

Reduce Length, Less weight, reduce fatigue after long-term use

Ceramic Bearing: More stable; Longer service life

More Concentrated Light, Increase the illumination by 100%

Technical Specifications:

4 Way water spray

Inner water channel

Chuck type: push button

Bur applicable: 1.6mm

Rotation speed: about 200,000rpm

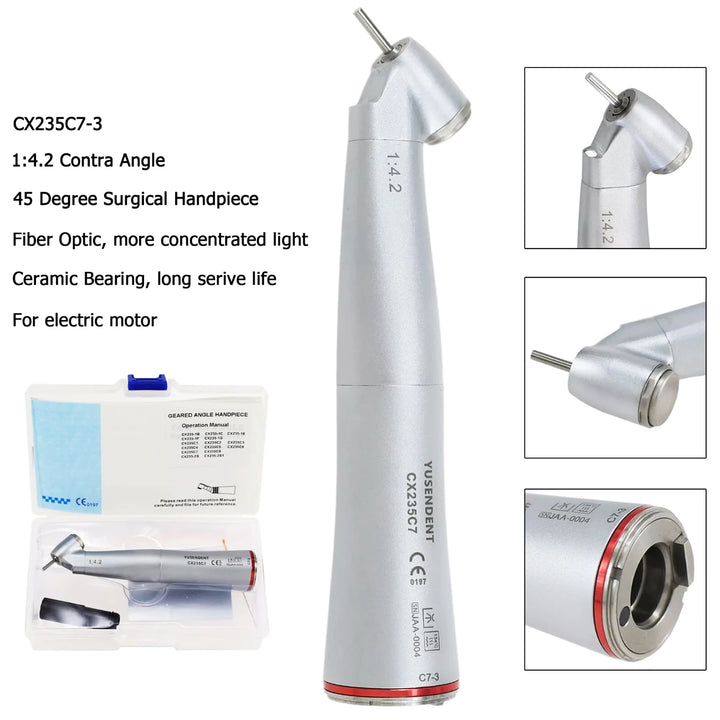

CX235C7-3 Contra Angle (1:4.2 / 45 Degree)

Features:

Made by COXO, with COXO's new logo "YUSENDENT"

1:4.2 speed increasing contra angle

Fiber Optic, more clear vision

45 degree surgical handpeice: The 45-degree angled head allows easy access to the molar region, minimizing interference from the front teeth and adjacent teeth.

Similar with NSK Ti MAX Z45L

For dental electric Motor

ISO E Type, fits for electric motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air® and ect.)

Descriptions:

• Perfect accessibility of 45 degree angle fiber optic handpiece provides the best adaptability and maximum performance for teeth easy access to the molar area. Minimize interference with the front teeth and adjacent teeth. 45 degree inclined head for supine accessibility and maximum visibility.

• Chuck type: push button

• Spray: Inner water channel

• Bur applicable: 1.6mm

• Rotation speed: about 168,000rpm
