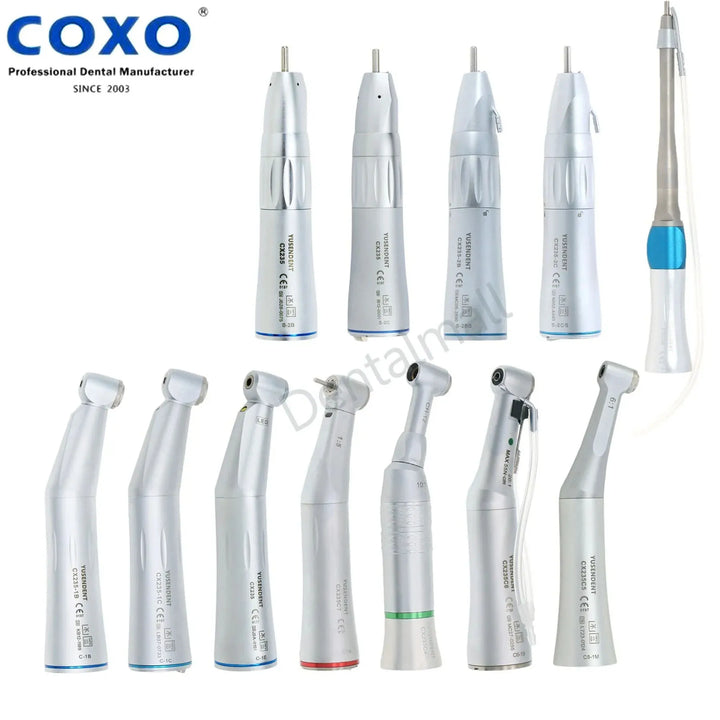

Model:

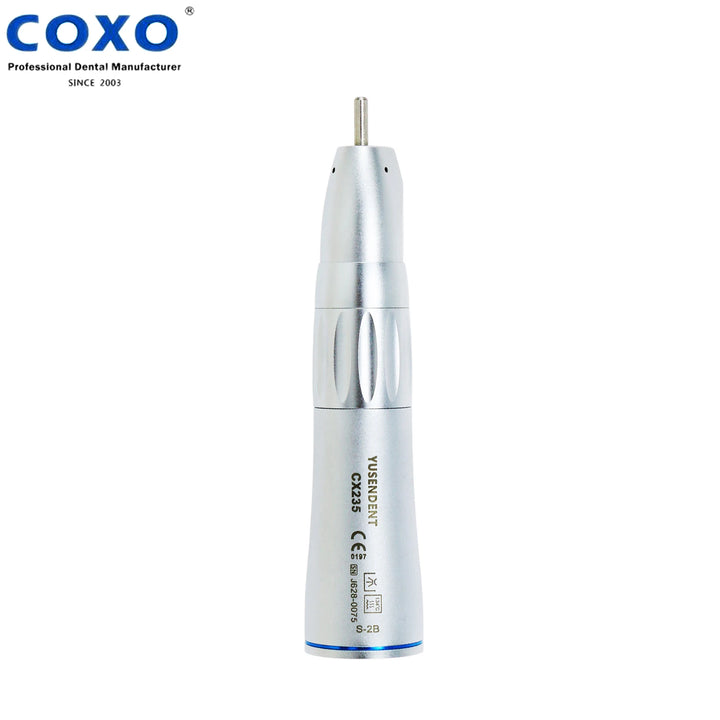

CX235-1B/2B

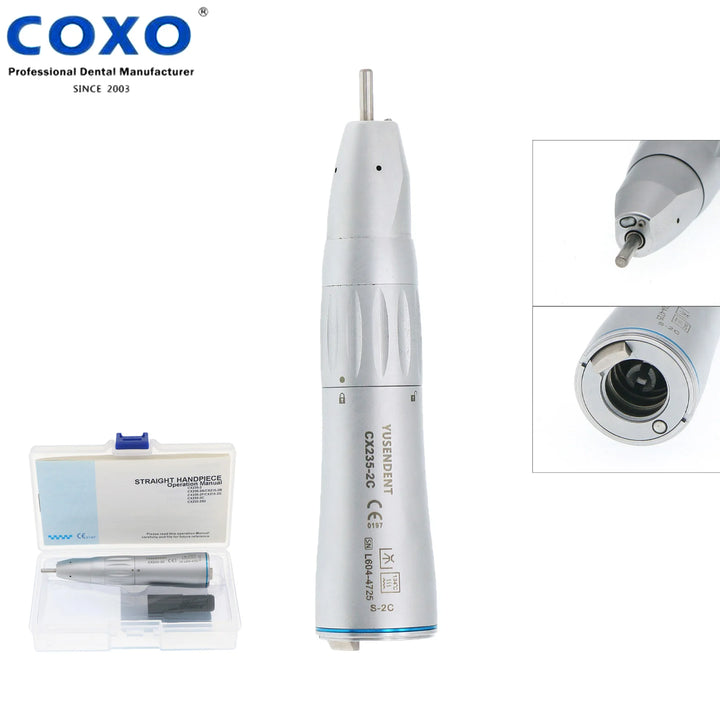

CX235-1C/2C
CX235-1E
CX235 C7-5
CX235-2S2
CX235 C5-12
CX235 C6-19
CX235 C5-1M
CX235-2BSCX235-2CS
1B Head
CH-4 Head
Spare Rotor for 1B 1C 1E
Spare Rotor for C6-19
Feature:

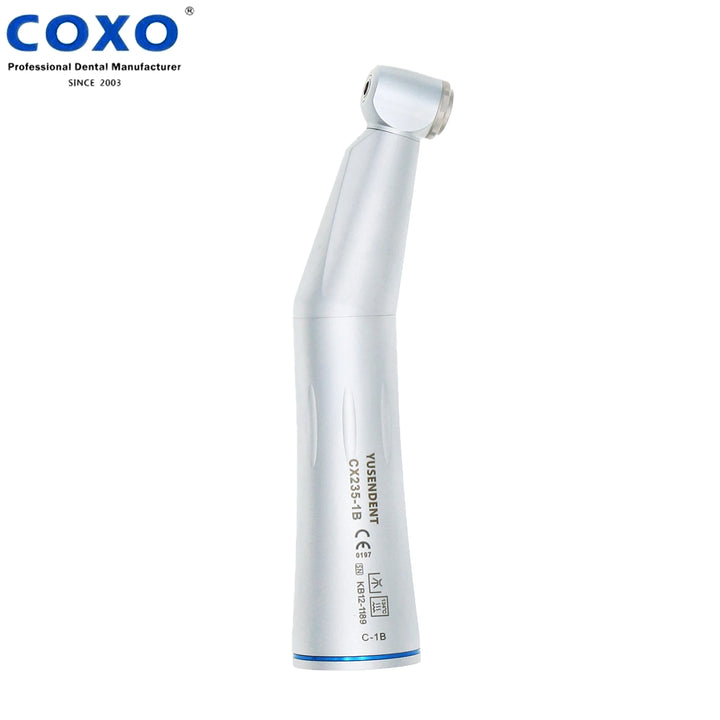

CX235 1B
Internal Water Channel
CE certificated
Push Button
1:1 Direct Drive
Air pressure: 0.3Mpa
Rotation speed: about 20,000rpm
Bur applicable: φ2.35-0.016mm(ISO1797-1)
Noise: ≤70dB
Inner Water Channel Contra Angle
Single Water Spray

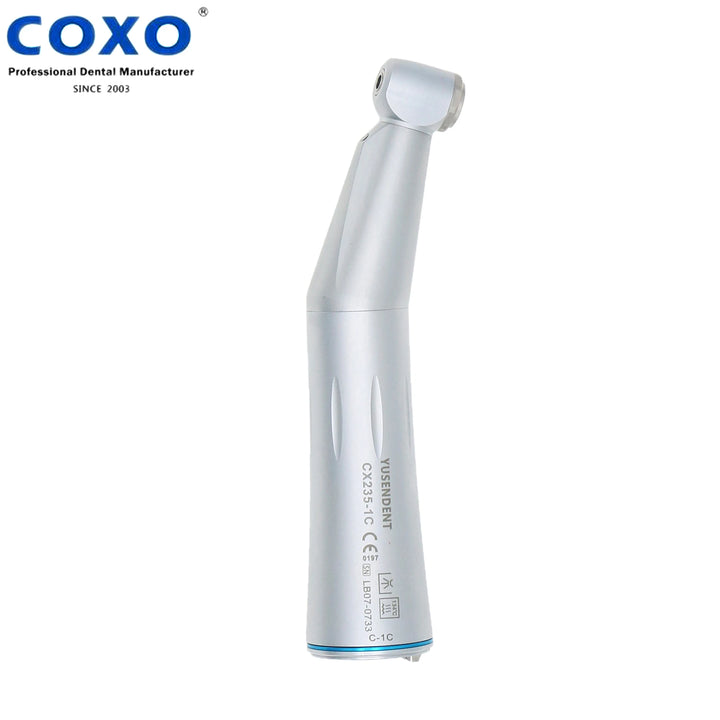

CX235 1C
Fiber Optic
Inner water Spray
Push button Chuck
Air pressure: 0.3Mpa
Speed ratio: 1:1direct drive
Rotation speed: about 20,000rpm
Bur applicable: φ2.35-0.016mm(ISO1797-1)
MAX Speed: 40000 Rpm
Noise: ≤70dB
Bulb: LED
ISO E type.
Compatible with NSK W&H Kavo Sirona air motor.

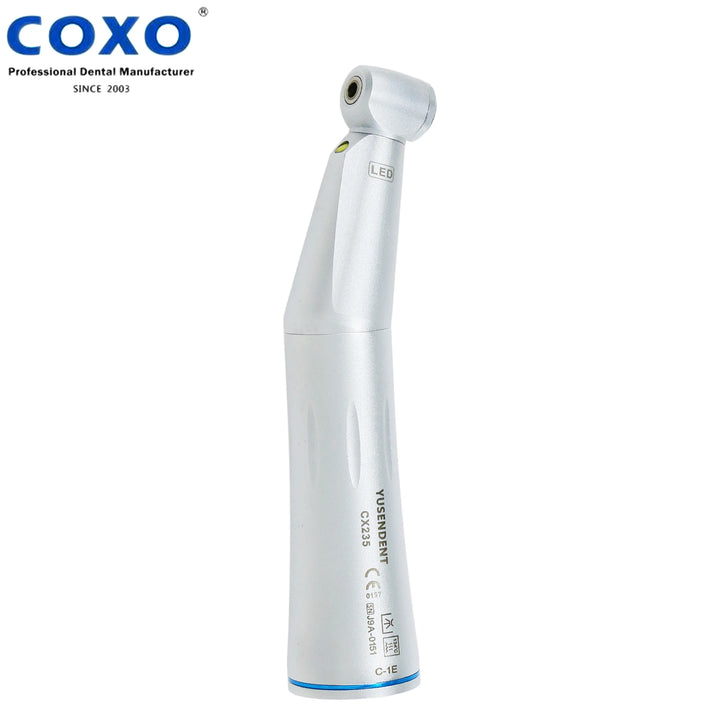

CX235-1E
Inner water Spray
Air pressure: 0.3Mpa
Rotation speed: about 20,000 rpm
Bur applicable: diameter 2.35mm
Noise: ≤70dB
Bulb: LED
With LED Light.
Self Power with E generator integrated, no need extra wire.
It can generate electric power itself.
ISO E type.
Compatible with NSK W&H Kavo Sirona air motor.

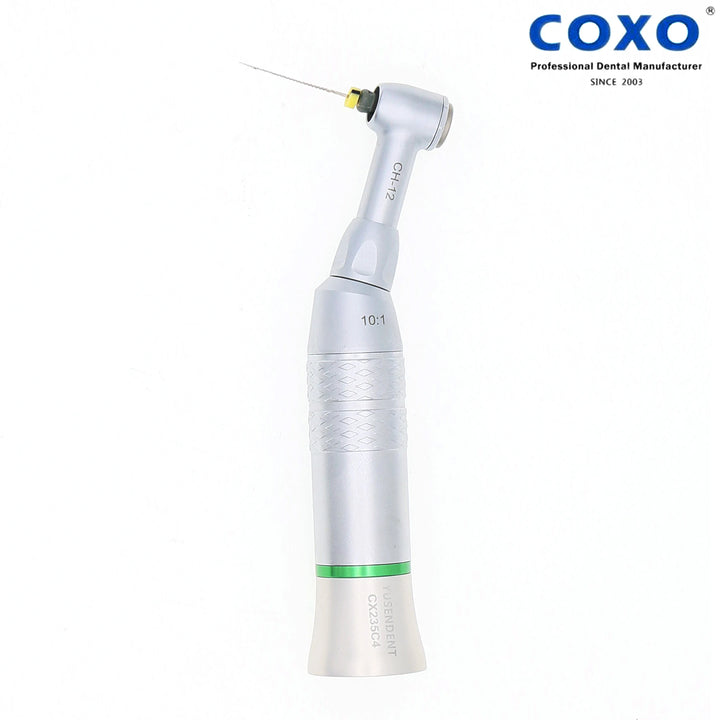

CX235 C5-12
10:1 Reduction,90º reciprocating rotate head, ideal for root canal treatment
Use hand use endo file
Push button chuck, easy to change the file
ISO E type, fit all ISO E type motor KAVO NSK W&H ect.
Used for：Contra angle for Endodontic treatment
Reduction：10:1
Max：4000RPM
Connecting portion: International standard size - - wildcard

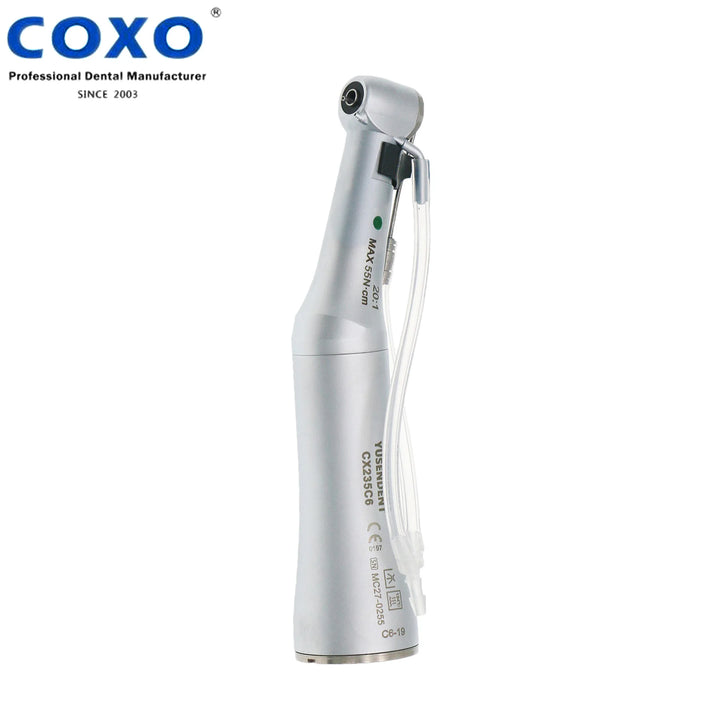

CX235 C6-19
Max Troque: 55N.cm
For CA burs 2.35mm
20:1 gear ratio
Inner and external spray
Chuck type: Push button
20:1 reduction contra angle
Implant Surgery Low Speed Handpiece
ISO E type contra angle can be used with NSK, W&H, KAVO,Bien air

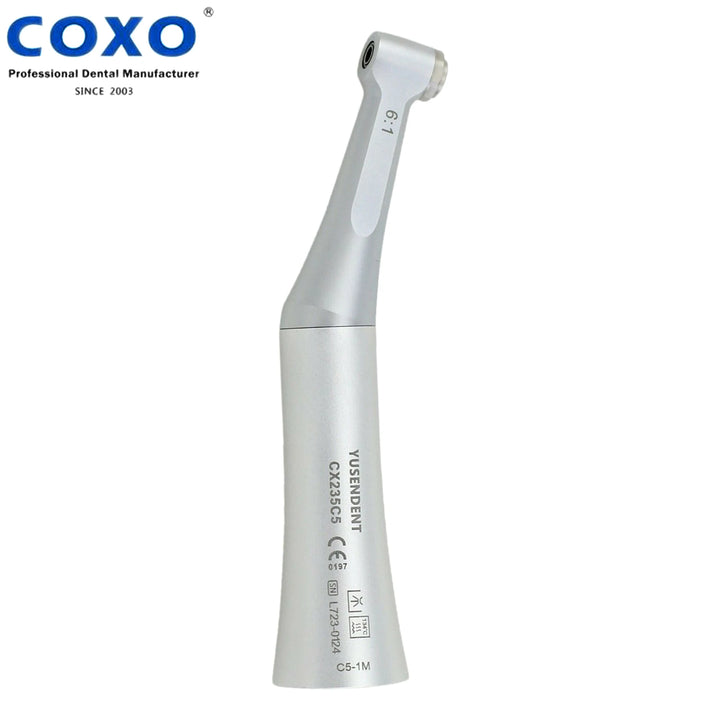

CX235 C5-1M 6:1 Endodontic
RPM Range: Up To 6,600 RPM
Motor Type: Electric
ISO E type
Gear Ratio: 6:1 reduction
Similar with Dentsply Sirona Endo 6:1 Endodontic Handpiece
Fit for Dentsply Wave One Endo Motor

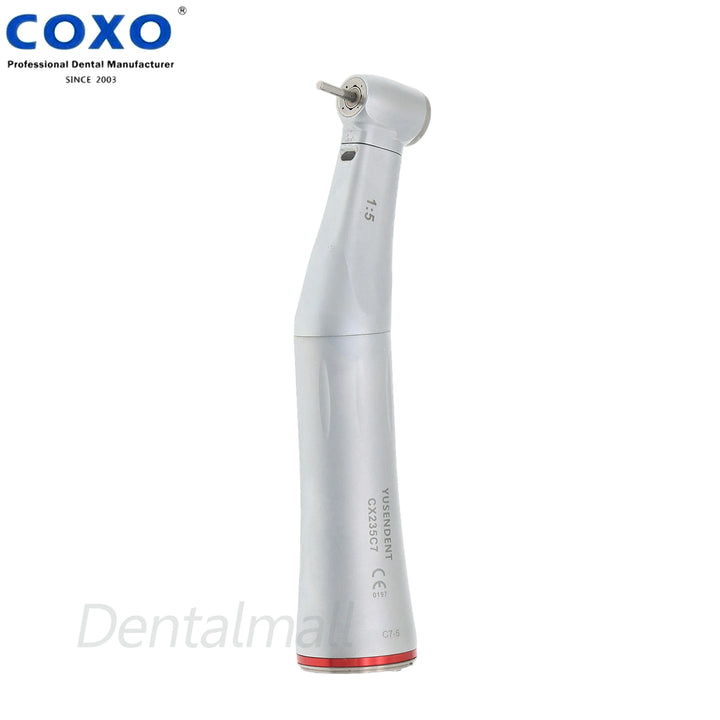

CX235 C7-5 Electric
100% Made by COXO, with YUSENDENT Logo
Upgraded model of CX235C7-1, Better clean head system, More Concentrated Light, Better water proof structure, Better cooling affect, Anti Heat System
Precision manufactured, Germany bearings, Imported Gear Material, more durable
1:5 Speed Up Fiber Optic Contra Angle Electric Handpiece
Similar with NSK Ti-Max Z95L
Gear Ratio 1:5 Increasing
Coolant Design: Quattro Ports
Chuck type: push button
Rotation speed: about 200,000rpm

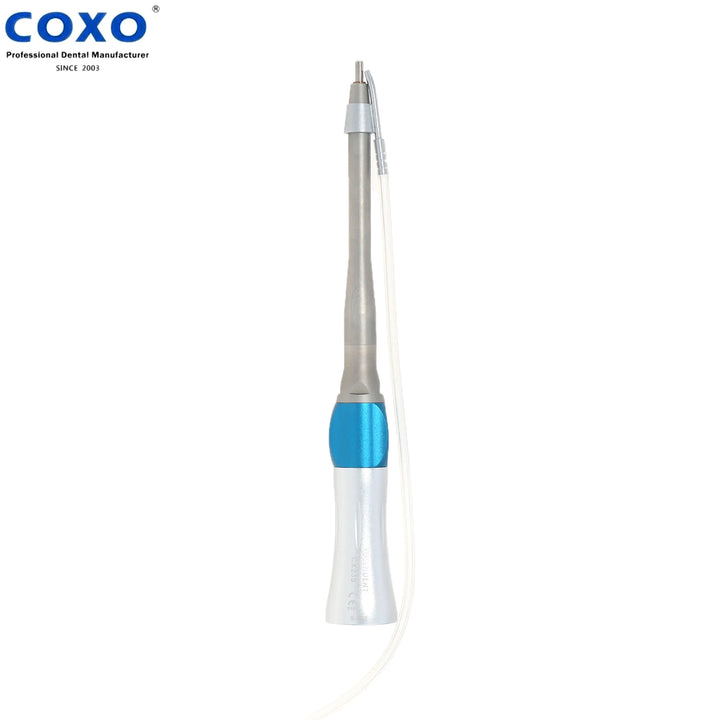

CX235-2S2
Perfect Stable and reliable performance
Gear Ratio: 1:1 Direct Drive
Twist chuck
Specification of Burs :Length of Shaft: 100mm
Diameter: 2.35mm
Transmission gear is made of high strength alloy steel

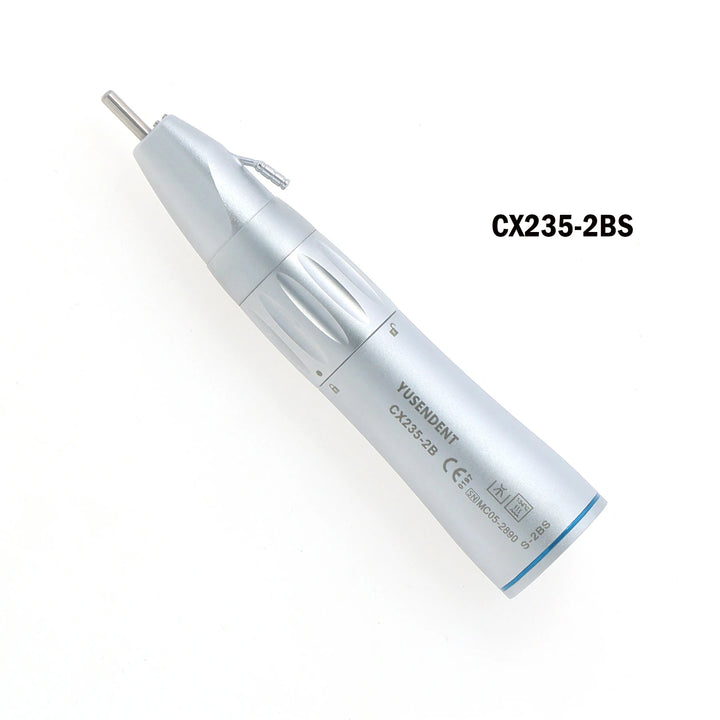

CX235-2BS
YUSENDENT Brand
1:1 Direct Drive
External Water Channel
Max Speed 40,000 R.P.M
Bur Shank: Ø2.35mm
Bur Length: Standard 44.5mm
Without LED Light
Surgical Handpiece
Autoclavable to 134°C
Oiling: E-type connector
An ergonomic, hardy surgical handpiece with double click bur locking to ensure a secure fit. External water pipe with dual spray outlet integrated into the head.
Ideal for Implant Surgery, Micro Surgery, & Bone Surgery.

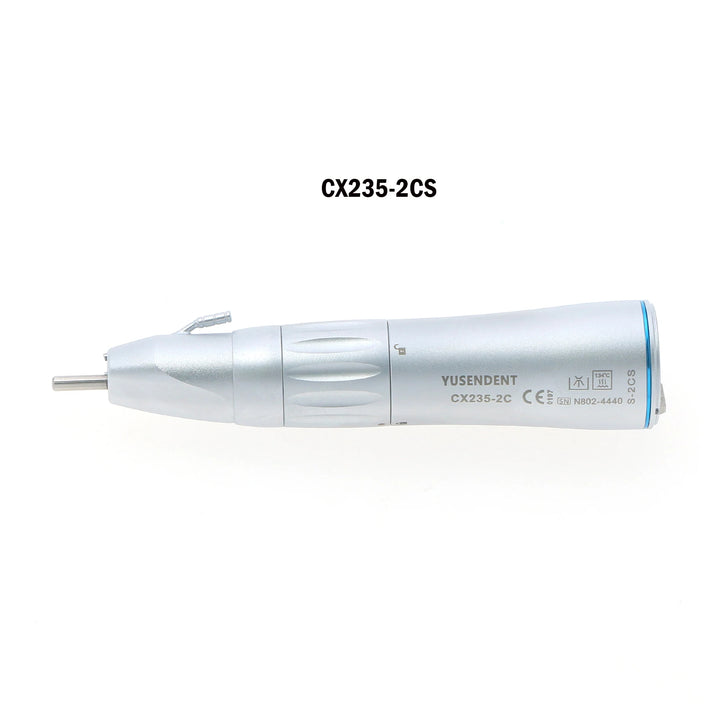

CX235-2CS - Fiber Optic
YUSENDENT Brand
1:1 Direct Drive
With LED Light
External Water Channel
Max Speed 40,000 R.P.M
Bur Shank: Ø2.35mm
Bur Length: Standard 44.5mm
Surgical Handpiece
Autoclavable to 134°C
Oiling: E-type connector
