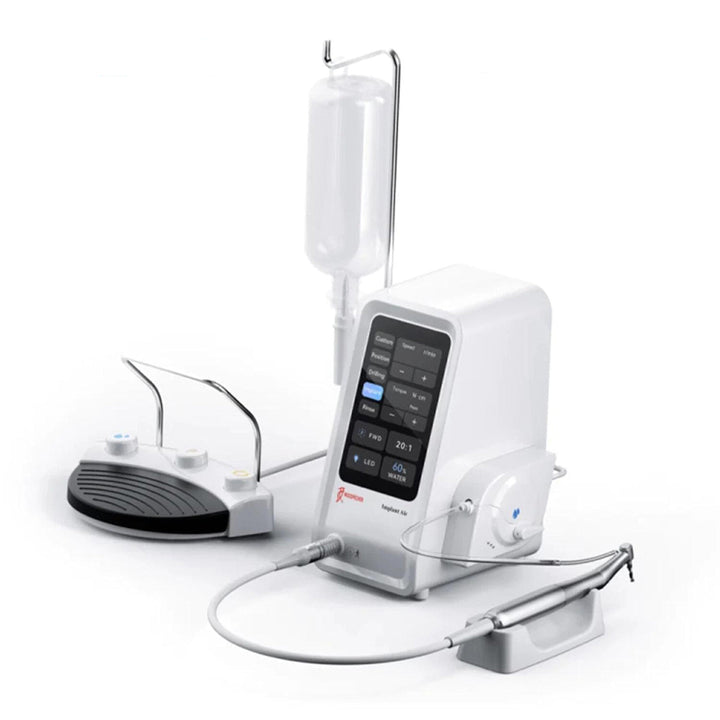

Woodpecker Dental Surgical Implant Motor Implant Air w/ 20:1 LED Contra Angle. Automatic Calibration that is Convenient & Ensures Accuracy. Compact Design, User Friendly Interface. Ultra Quiet Peristaltic Pump that is Convenient to Use. Max Water Volume: 135ml/minute. Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable. Multi-Function Foot Pedal.

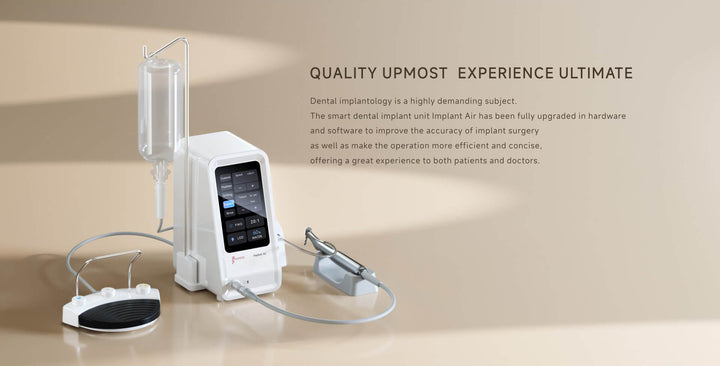

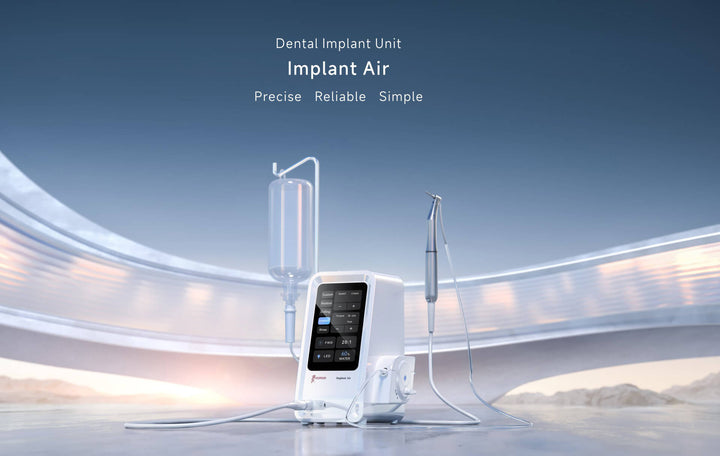

- The Woodpecker Implant Air is the latest and most advanced version of implant motor from Woodpecker Dental that is completely redesigned to be simple, precise and reliable for your implant surgery. Implanter Air will be your favorite assistant of high-precision dental implanting treatment.
-
Automatic Calibration that is Convenient & Ensures Accuracy
The Implant Air Implant Motor features automatic torque calibration upon powering on the motor to ensure absolute accuracy and eliminating manual operational steps.
-

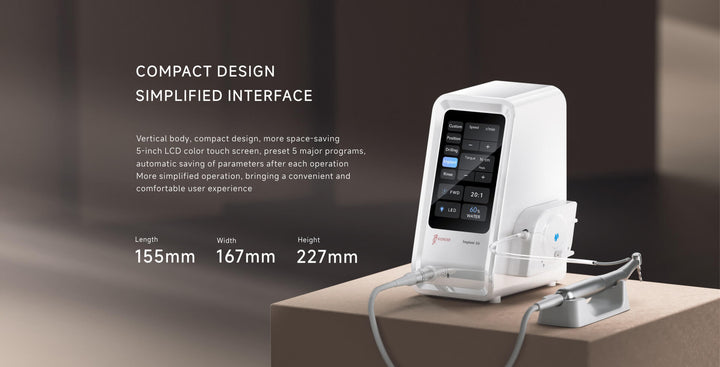

Compact Design & User Friendly Interface
The Implant Air Implant Motor is designed with space savings in mind. Its compact design is perfect for space savings in your operatory and has a much smaller foot print than other implant motors available. This is not your typical “clunky" implant motor.
-Length 6.1 inches (155mm)
-Width 6.5 inches (167mm)
-Height 8.9 inches (227mm)

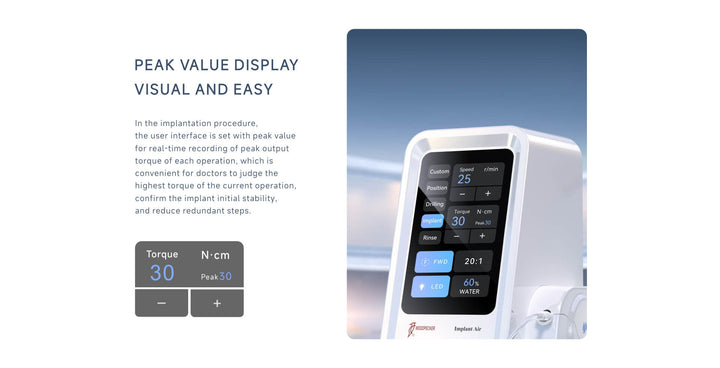

The 5 inch color LCD touchscreen is user friendly and easy to understand. It has 5 pre-set surgical programs and automatically saves the parameters after each operation.
-

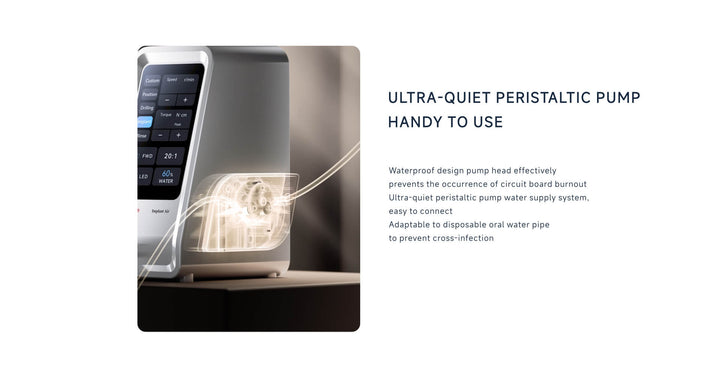

Ultra Quiet Peristaltic Pump that is Convenient to Use
The Implant Motor water pump has a waterproof design to prevent any occurrence of circuit board burnout. Simple and user friendly connect for water supply and is adaptable to using a disposable water source.
-
Max Water Volume: 135ml/minute
-

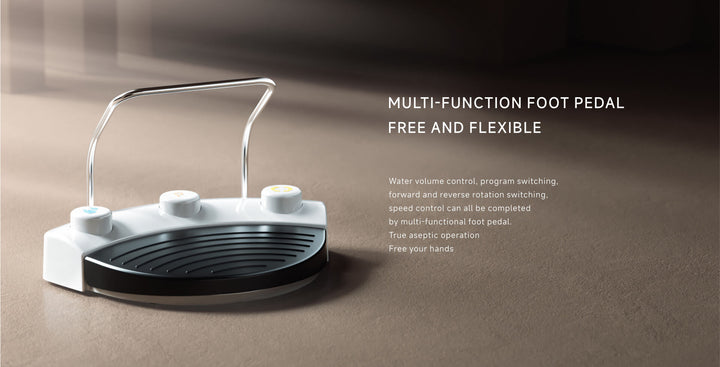

Multi-Function Foot Pedal
The Woodpecker Implant Air Implant Motor foot pedal has 1) water volume control 2) program switching 3) forward and reverse and 4) speed control. This allows you to free your hands and focus on the implant procedure.
-

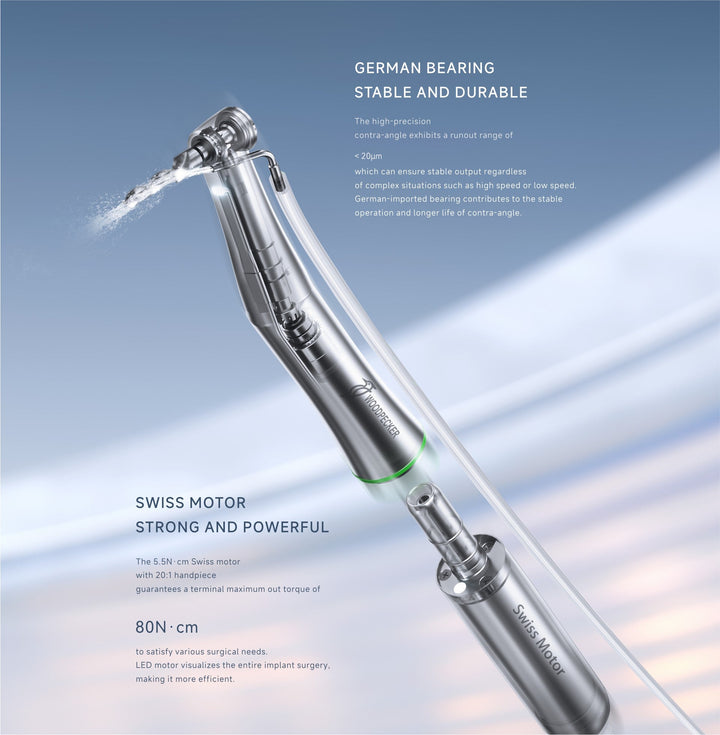

Swiss Motor is Strong & Powerful - German Handpiece Bearing Stable & Durable.

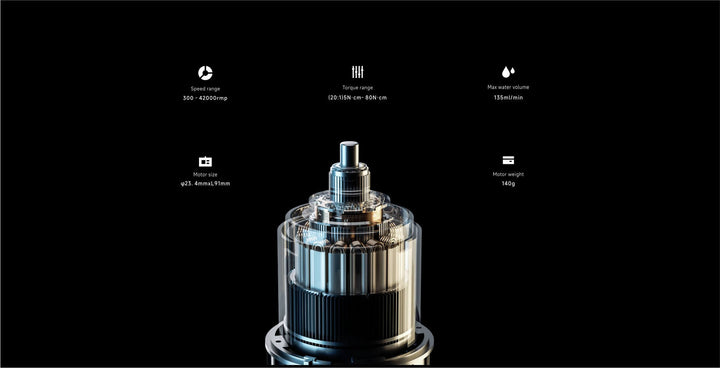

The Woodpecker Implant Air features a Swiss Motor producing torque of 80N cm and an LED 20:1 Handpiece with German bearings allowing for maximum stability and durability.

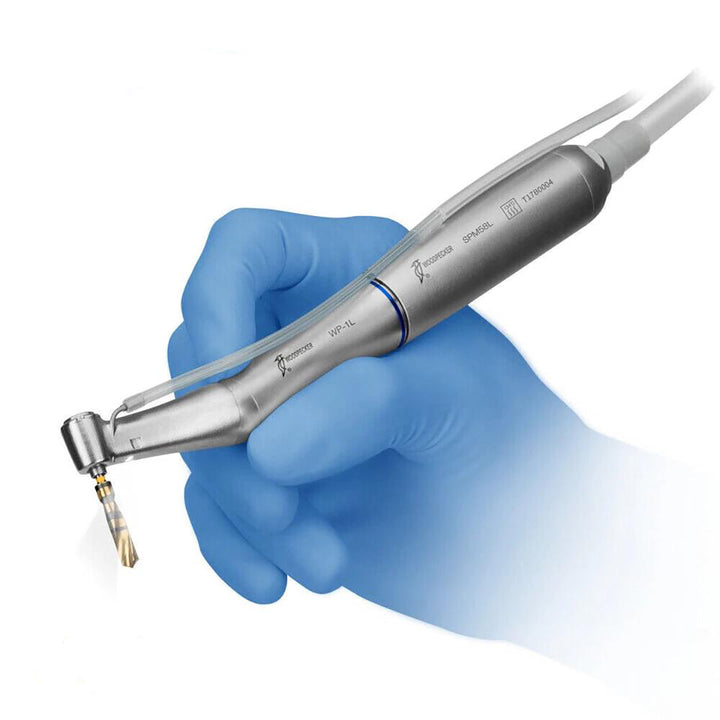

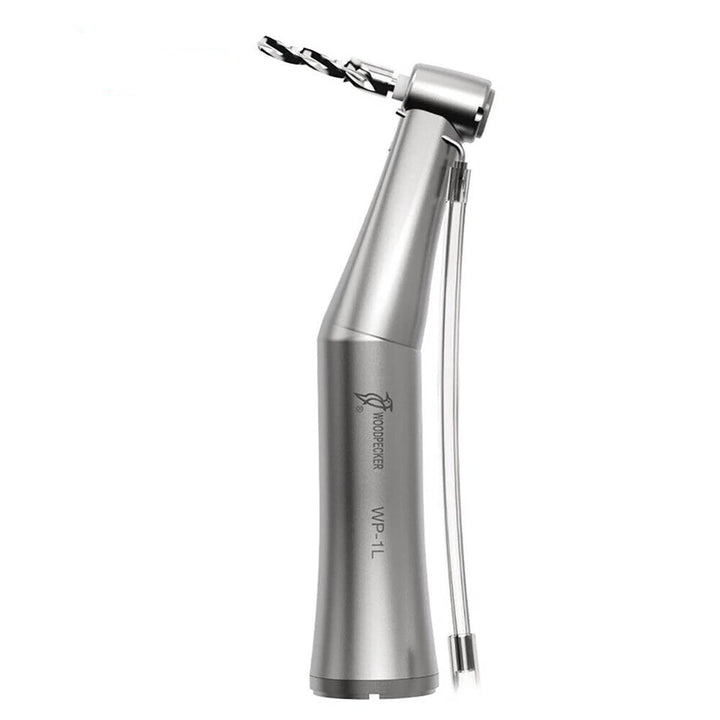

- * One 20:1 LED contra angle is included with the implant motor.
|
| Model: |
Implant Air |
| Power Input: |
AC 100-240V 50Hz/60Hz |
| Host Size: |
155mm×167mm×227mm |
| Size of fuse: |
5.2 mm×20mm |
| No-Load Speed (r/min): |
300 ~ 42000 |
| Input Power: |
180VA |
| Software Version: |
V1 |
| Ambient Temperature: |
+5 ~ 40°C |
| Relative Humidity: |
30% ~ 75% |
| Atmospheric Pressure: |
70kPa ~ 106kPa |

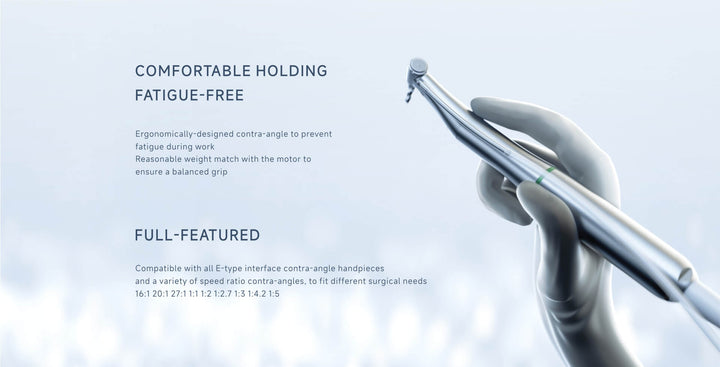

Handpiece Gear Ratios
Output speed (r/min): |
16: 1 (20 ~ 2500)
20: 1 (15 ~ 2000)
27: 1 (10 ~ 1500)
1: 1 (300 ~ 42000)
1:2 (600 ~ 84000)
1:2.7 (810 ~ 113400)
1:3 (900 ~ 126000)
1:4.2 (1260 ~ 176400)
1:5 (1500 ~ 210000) |
| Pedals Model: |
MF4 |
| Tail line length: |
2.8m |
| Main unit: |
1 |
| Handpiece holder: |
1 |
| Disposable water pipe: |
4 |
| Infusion bottle holder: |
1 |
| Foot pedal: |
1 |
| Power cord: |
1 |
| Motor handpiece: |
1 |
| Contra-angle kit: |
1 |
| Spare fuse: |
2 |
| Disinfection plug: |
2 |
| Pipe clamp: |
10 |
| O-ring(Motor): |
4 |
| Instruction manual: |
1 |
